This 4MP ANPR enforcement camera captures crystal-clear vehicle license plates even at high speeds with its 10-50mm motorized lens. It features deep learning algorithms and STQC approval for reliable traffic monitoring and parking management.
Original price was: ₹87,999.000.₹69,999.000Current price is: ₹69,999.000.
In stock
In stock
To pick up today
Free
Our courier will deliver to the specified address
2-5 Days
Free
Fast Air Cargo delivery
DTDC Air courier will deliver to the specified address
1-2 Days
Starting From INR 240 Only

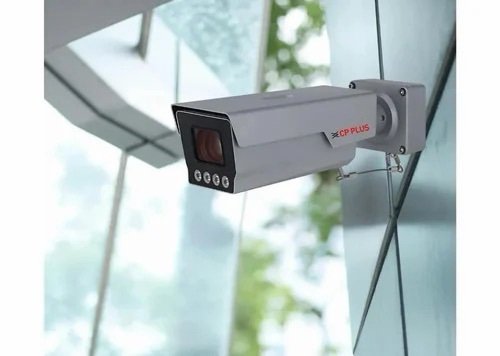

The CP PLUS CP-UNC-TT41L3-VMD-Q 4MP IP ANPR AI Enforcement Camera is a professional-grade surveillance camera designed for automatic number plate recognition, traffic monitoring, parking management, toll plazas, entry and exit control, and security enforcement applications. It combines a high-performance 4MP image sensor, motorized varifocal lens, advanced ANPR technology, AI-based vehicle recognition, powerful IR illumination and rugged outdoor protection in a single enforcement camera.
With a 1/1.8-inch 4MP CMOS sensor, the CP PLUS CP-UNC-TT41L3-VMD-Q delivers up to 2688 × 1520 resolution at 30fps. Its 10–50mm motorized varifocal lens provides flexible optical adjustment for different installation distances and lane configurations, while 140dB WDR helps maintain clear images in challenging lighting conditions. The camera supports PoE and 12–36V DC power, making it suitable for professional IP surveillance deployments.
The CP PLUS CP-UNC-TT41L3-VMD-Q features a 4MP 1/1.8-inch CMOS image sensor and supports a maximum resolution of 2688 × 1520 pixels at up to 30fps. The high-resolution sensor provides detailed images required for vehicle identification and license plate recognition.
The camera supports multiple video resolutions and compression formats including H.265, H.264 and MJPEG, allowing installers to balance image quality, bandwidth consumption and storage requirements according to the surveillance application.
The CP PLUS CP-UNC-TT41L3-VMD-Q 4MP IP ANPR Camera uses advanced ANPR algorithms to recognize license plate numbers and letters automatically. This makes it suitable for applications where vehicle identification needs to be automated rather than handled manually.
The camera can display and process useful vehicle information including plate number, plate color, vehicle type, vehicle color, vehicle logo, vehicle size, vehicle speed and other supported vehicle attributes. These capabilities make it suitable for intelligent traffic monitoring and access control systems.
The CP PLUS CP-UNC-TT41L3-VMD-Q features a 10mm–50mm motorized varifocal lens, providing flexible optical adjustment for different installation distances and viewing requirements.
The motorized lens allows installers to adjust the field of view remotely after installation, making it easier to configure the camera for specific lanes, entry gates, toll booths and road monitoring locations. The camera supports approximately 10°–44° horizontal viewing angle depending on the selected focal length.
Beyond license plate recognition, the CP PLUS CP-UNC-TT41L3-VMD-Q supports intelligent vehicle analysis. It can recognize different vehicle categories including SUVs, sedans, buses, trucks, pickups, vans and other supported vehicle types.
This intelligent classification can provide valuable information for traffic analysis, parking management, security monitoring and automated vehicle access systems. The camera can also combine multiple source images and a close-up image into a composite image for improved event information.
Traffic and vehicle monitoring locations often experience difficult lighting conditions caused by direct sunlight, headlights, shadows and reflective surfaces. The CP PLUS CP-UNC-TT41L3-VMD-Q features up to 140dB WDR to help balance bright and dark areas within the same scene.
The camera also supports BLC, HLC, 2D Noise Reduction and 3D Noise Reduction to improve image quality in challenging surveillance environments.
The CP PLUS CP-UNC-TT41L3-VMD-Q is equipped with adjustable IR illumination with a range of up to 30 meters. Its 850nm IR LEDs provide visibility in low-light and nighttime conditions while maintaining the camera’s ability to capture vehicle and license plate information.
The camera supports automatic Day/Night switching using an IR cut filter, allowing it to adapt automatically between daytime and nighttime surveillance conditions.
The camera is designed for professional vehicle monitoring and supports IR lane coverage of approximately 1–2 lanes, depending on the installation configuration, distance and selected lens setting.
This makes the CP PLUS CP-UNC-TT41L3-VMD-Q suitable for parking entrances, gated communities, toll plazas, highways, industrial facilities and other locations where automated vehicle identification is required.
The CP PLUS CP-UNC-TT41L3-VMD-Q supports Power over Ethernet (PoE), allowing data and power to be delivered through a single network cable when used with a compatible PoE switch or injector.
The camera also supports a 12–36V DC power supply, providing installation flexibility for professional surveillance and traffic monitoring projects.
For suitable network deployments, IPVoice Technologies also offers network switches and PoE networking products that can be used as part of an IP surveillance infrastructure.
Traffic monitoring cameras are exposed to rain, dust, temperature changes and potential physical impact. The CP PLUS CP-UNC-TT41L3-VMD-Q features an IP67 weatherproof rating and IK10 vandal-resistant protection for demanding outdoor installations.
Its rugged construction makes it suitable for highways, parking facilities, toll plazas, industrial premises, government projects, gated communities and other outdoor security environments.
The CP PLUS CP-UNC-TT41L3-VMD-Q supports MicroSD card storage up to 512GB, along with SFTP and NAS storage options. Automatic Network Recovery can also help maintain recording workflows when network connectivity is temporarily interrupted.
The camera supports a wide range of network protocols and ONVIF Profiles S, G and T, allowing integration with compatible Network Video Recorders and video management systems.
For centralized recording and management, customers can pair compatible IP cameras with IPVoice’s Network Video Recorders (NVRs).
The camera includes RS-232 and RS-485 interfaces that can be used for integration with supported devices such as radar systems. It also provides alarm input and output interfaces for connecting compatible external security equipment.
With ONVIF support, standard IP protocols and multiple integration interfaces, the CP PLUS CP-UNC-TT41L3-VMD-Q can be incorporated into larger surveillance, traffic management and access control systems.
The CP PLUS CP-UNC-TT41L3-VMD-Q carries STQC-approved compliance documentation and is suitable for professional and government-oriented surveillance deployments where specified compliance requirements are important.
Its combination of ANPR, AI vehicle analytics, rugged IP67 and IK10 construction, PoE connectivity and high-resolution imaging makes it suitable for demanding traffic and enforcement applications.

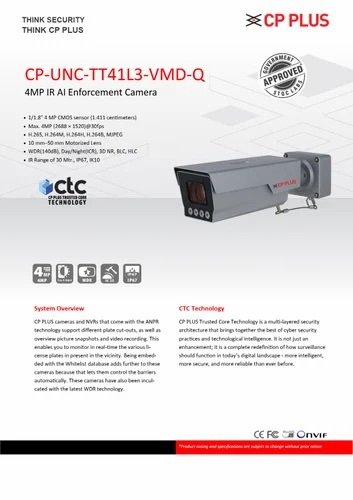

| Specification | Details |
|---|---|
| Model | CP-UNC-TT41L3-VMD-Q |
| Camera Type | 4MP IR AI Enforcement / ANPR Camera |
| Image Sensor | 1/1.8-inch 4MP CMOS |
| Maximum Resolution | 2688 × 1520 |
| Frame Rate | Up to 30fps |
| Lens | 10mm–50mm Motorized Varifocal |
| Horizontal Viewing Angle | 10°–44° |
| Vertical Viewing Angle | 6°–24° |
| Diagonal Viewing Angle | 12°–51° |
| WDR | 140dB |
| IR Range | Up to 30m |
| IR Lane Coverage | 1–2 lanes |
| Video Compression | H.265, H.264M, H.264H, H.264B, MJPEG |
| ANPR | Supported |
| Vehicle Recognition | Supported |
| Storage | MicroSD up to 512GB, SFTP, NAS |
| Network | IPv4, IPv6, HTTP, HTTPS, TCP/IP, DHCP, DNS, NTP, ONVIF and more |
| Power | 12–36V DC / PoE |
| Power Consumption | ≤13W |
| Alarm Input | 3 Channels |
| Alarm Output | 2 Channels |
| RS-485 | 2 Ports |
| RS-232 | 2 Ports |
| Weather Protection | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -40°C to +65°C |
| STQC | Approved compliance report |
The CP PLUS CP-UNC-TT41L3-VMD-Q 4MP IP ANPR Camera is designed for applications where ordinary CCTV cameras are not enough. Its dedicated ANPR technology, 10–50mm motorized lens, AI-based vehicle analytics, 140dB WDR and 30-meter IR illumination provide the specialized capabilities required for professional vehicle identification.
For large-scale surveillance projects, the camera can be integrated with compatible NVR systems for centralized recording and management. For the complete range of CP PLUS surveillance products, explore the CP PLUS collection at IPVoice Technologies.
Choose the CP PLUS CP-UNC-TT41L3-VMD-Q when your project requires reliable ANPR, intelligent vehicle recognition, long-distance optical adjustment and rugged outdoor performance for traffic, parking and access-control applications.
The CP PLUS CP-UNC-TT41L3-VMD-Q is a 4MP IR AI Enforcement Camera designed for Automatic Number Plate Recognition, traffic monitoring, vehicle identification and security enforcement applications.
The camera supports a maximum resolution of 2688 × 1520 pixels at up to 30fps.
It features a 10mm–50mm motorized varifocal lens, allowing flexible optical adjustment for different installation distances and viewing requirements.
Yes. The camera features dedicated ANPR technology for automatic recognition of vehicle license plate numbers and letters.
The camera provides IR illumination up to approximately 30 meters and supports approximately 1–2 lane IR coverage depending on installation conditions.
Yes. The camera supports PoE as well as 12–36V DC power input.
Yes. It supports MicroSD card storage up to 512GB, along with SFTP and NAS storage options.
Yes. The camera features IP67 weatherproof and IK10 vandal-resistant protection, making it suitable for demanding outdoor traffic and surveillance applications.
