TP-Link Omada ES210GP | 10-Port Gigabit Easy Managed PoE+ Switch with 8× PoE+ Ports & 61W PoE Budget

TP-Link Omada ES210GP | 10-Port Gigabit Easy Managed PoE+ Switch is a compact and flexible networking switch designed for small businesses, offices, surveillance installations, access point deployments and other networks that require both Gigabit Ethernet connectivity and Power over Ethernet. The switch combines 8 Gigabit PoE+ ports, 2 Gigabit non-PoE ports and a 61W total PoE budget in a compact desktop/wall-mount design.

The ES210GP is part of the TP-Link Omada Easy Smart/Easy Managed switching family and provides practical network management features such as VLAN, QoS, IGMP Snooping, Loop Prevention, Port Mirroring, Link Aggregation and Omada centralized management. Its PoE+ capability allows compatible devices such as IP cameras, wireless access points and VoIP phones to receive power and data over a single Ethernet cable.

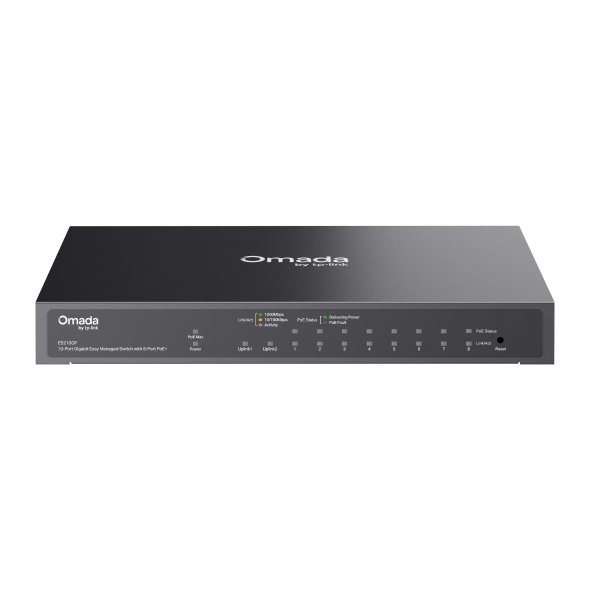

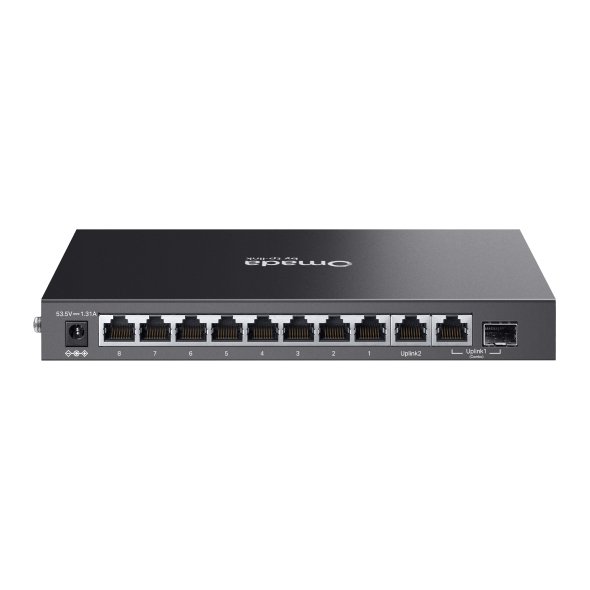

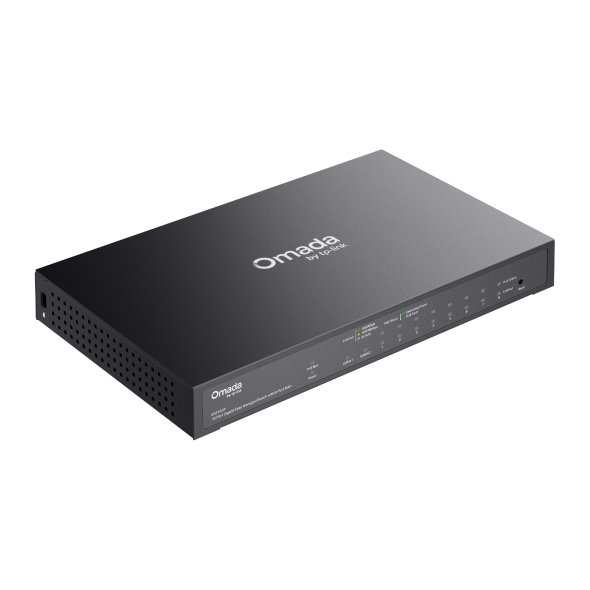

TP-Link Omada ES210GP 10-Port Gigabit PoE+ Switch

The TP-Link Omada ES210GP provides 10 Gigabit Ethernet ports in total. Eight ports support IEEE 802.3af/at PoE+, while the remaining two Gigabit Ethernet ports are intended for non-PoE network connections.

61W PoE+ Power Budget

The ES210GP provides a total 61W PoE budget for connected PoE devices. Its PoE+ ports support IEEE 802.3af and IEEE 802.3at standards, making the switch suitable for powering a wide range of compatible network devices.

With PoE, installers can deploy compatible access points, IP cameras, VoIP phones and other powered devices without installing a separate power adapter at every endpoint.

• 8 × Gigabit PoE+ ports
• IEEE 802.3af/at PoE support
• 61W total PoE budget
• Up to 30W PoE output per compatible port
• Data and power over a single Ethernet cable
• PoE Auto Recovery for supported devices

Gigabit Ethernet Performance

All 10 network ports support Gigabit Ethernet speeds, providing up to 1000 Mbps per port. The switch offers a 20 Gbps switching capacity, allowing simultaneous traffic between multiple connected devices with efficient Layer 2 switching performance.

Omada Centralized Management

The ES210GP can be integrated into the TP-Link Omada ecosystem for centralized network management. When used with a supported Omada Controller, administrators can manage compatible networking devices from a unified platform.

Omada management can simplify configuration and monitoring for networks containing multiple switches, access points and gateways. Depending on the deployment, supported Omada management options include cloud-based, hardware-based and software-based controllers.

• Omada Cloud-Based Controller support
• Omada Hardware Controller support
• Omada Software Controller support
• Centralized configuration
• Network monitoring
• Remote management

VLAN for Network Segmentation

The ES210GP supports VLAN features that allow administrators to logically separate network traffic. VLAN segmentation can be useful for separating office computers, IP cameras, guest devices, VoIP phones and other network endpoints.

The switch supports 802.1Q VLAN functionality as well as port-based VLAN options, allowing network administrators to create appropriate segmentation policies for their deployment.

QoS for Traffic Prioritization

Quality of Service features allow important network traffic to receive appropriate priority. This can be particularly useful when voice, video surveillance or other latency-sensitive applications share the same network infrastructure with general data traffic.

The ES210GP supports traffic-prioritization features that help administrators manage bandwidth and prioritize selected network traffic.

IGMP Snooping

The ES210GP supports IGMP Snooping to improve multicast traffic handling. This can be useful in networks using IPTV, multicast video or other applications that rely on multicast communication.

By controlling how multicast traffic is forwarded, IGMP Snooping can help avoid unnecessary multicast traffic being delivered to ports that do not require it.

PoE Auto Recovery

The switch includes PoE Auto Recovery, which can automatically detect and recover supported PoE-powered devices that stop responding. This can be useful in surveillance and wireless networking deployments where remote devices may be installed in locations that are difficult to access physically.

For example, if a connected IP camera or access point becomes unresponsive, the switch can detect the condition and attempt to restore the PoE connection according to the configured recovery behavior.

Loop Prevention and Network Reliability

The ES210GP includes loop-prevention functionality designed to help protect the network from problems caused by accidental Ethernet loops. This is particularly useful in installations where multiple network connections are made across offices, surveillance systems or distributed network infrastructure.

The switch also provides link aggregation functionality on supported configurations, allowing compatible links to be combined for improved availability and network utilization.

Port Mirroring and Cable Diagnostics

For network troubleshooting, the ES210GP provides Port Mirroring and cable diagnostic functions. Port mirroring allows selected traffic to be copied to a monitoring port for analysis, while cable diagnostics can help identify certain physical Ethernet connectivity issues.

These features are useful for IT administrators and installers troubleshooting connectivity, performance or cabling problems without requiring additional dedicated network-analysis hardware for basic diagnostics.

Compact Design for Small Networks

The compact form factor of the ES210GP makes it suitable for desktop installations, small network cabinets and wall-mounted deployments. Its 10-port configuration provides a practical option where an 8-port PoE switch is insufficient but a larger 16- or 24-port switch would be unnecessary.

The switch can be deployed in small offices, retail locations, classrooms, CCTV installations, hospitality environments and other locations requiring a compact Gigabit PoE+ solution.

Ideal Applications for TP-Link ES210GP

• Small office networks
• IP CCTV camera installations
• Wi-Fi access point deployments
• VoIP phone networks
• Retail stores
• Small hotels and hospitality networks
• Home and small-business surveillance
• Branch-office networking
• IoT network deployments
• Small Omada-managed networks

For a broader selection of TP-Link networking hardware, see TP-Link Networking Products. For other managed switching solutions, explore Managed Switches and PoE Switches.

TP-Link Omada ES210GP Specifications

Frequently Asked Questions

How many PoE ports does TP-Link ES210GP have?

The ES210GP has 8 Gigabit PoE+ ports and 2 additional Gigabit Ethernet ports.

What is the PoE budget of ES210GP?

The TP-Link ES210GP provides a total PoE power budget of 61W.

Does ES210GP support PoE+?

Yes. Its PoE+ ports support IEEE 802.3af/at standards and can provide up to 30W per compatible port, subject to the overall PoE budget.

Is TP-Link ES210GP a Gigabit switch?

Yes. All 10 RJ45 ports support 10/100/1000 Mbps Gigabit Ethernet.

Can ES210GP be managed through Omada?

Yes. The ES210GP is designed for integration with the TP-Link Omada management ecosystem and can be managed through supported Omada Controllers.

Is ES210GP suitable for CCTV?

Yes. The 8 PoE+ ports, 61W PoE budget, Gigabit connectivity and PoE Auto Recovery make it suitable for compatible IP camera deployments, provided the combined camera power requirements remain within the available PoE budget.

Does ES210GP have SFP ports?

No. The ES210GP uses 10 Gigabit RJ45 Ethernet ports and does not provide SFP/SFP+ fiber ports.
