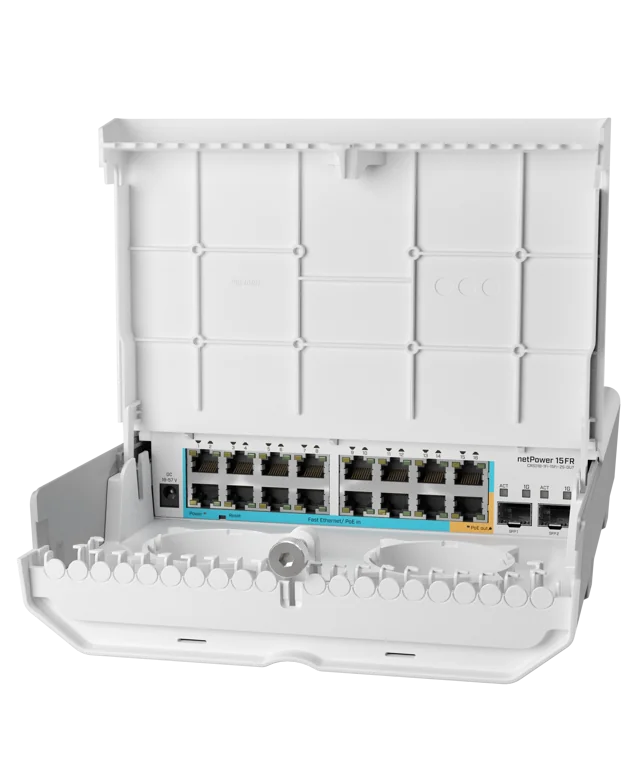

MikroTik netPower 15FR is an IP67 outdoor switch featuring 12× PoE-out ports, 4× reverse PoE-in ports, and 2× SFP cages—ideal for powering and linking outdoor networks.
Original price was: ₹45,999.000.₹29,999.000Current price is: ₹29,999.000.
2 in stock
2 in stock
To pick up today
Free
Our courier will deliver to the specified address
2-5 Days
Free
Fast Air Cargo delivery
DTDC Air courier will deliver to the specified address
1-2 Days
Starting From INR 240 Only
MikroTik netPower 15FR is an outdoor Ethernet switch designed specifically for ISP, WISP and GPEN-based network deployments. Its exact manufacturer product code is CRS318-1Fi-15Fr-2S-OUT. The switch combines 16 × 10/100 Ethernet ports, 15 reverse PoE ports and 2 SFP ports in a rugged outdoor-oriented enclosure.
The key feature of netPower 15FR is its reverse PoE architecture. Instead of requiring a dedicated power supply at the switch location, the device can draw power from connected PoE-capable clients. This makes it useful for ISP distribution networks where customer premises equipment can provide power back to the network switch.
The MikroTik netPower 15FR is a specialized outdoor switch built around MikroTik’s GPEN concept. GPEN combines Ethernet-based networking with the practical deployment advantages of traditional access-network infrastructure.
Rather than using a conventional indoor Ethernet switch with a separate AC power installation, netPower 15FR can be deployed closer to customers and powered using reverse PoE from connected network devices. This can simplify power distribution in suitable ISP installations.
The defining feature of netPower 15FR is its 15 reverse PoE ports. These ports can receive power from connected compatible devices, allowing the switch to obtain the power required for operation from the network itself.
MikroTik describes this design as particularly useful for ISP deployments where the network operator can draw power from customer-side equipment. Depending on the network architecture, this can reduce the need for dedicated power infrastructure at each distribution location.
In addition to reverse PoE functionality, Ether15 provides passive PoE-out. This allows the port to power a compatible PoE device using the same voltage applied to the switch.
The maximum total PoE-out current is specified at 0.75A, with current limits depending on the applied input voltage. PoE compatibility and voltage requirements should always be checked before connecting an external device.
netPower 15FR provides 16 × 10/100 Ethernet ports. These are Fast Ethernet interfaces and should not be described as Gigabit Ethernet ports.
The 100 Mbps port speed can be appropriate for ISP access networks where subscriber services or connected CPE devices operate below Gigabit speeds. The switch also provides two SFP interfaces for fiber-based uplinks or network aggregation.
Two SFP ports provide optical connectivity for fiber network links. This allows netPower 15FR to be integrated into fiber-based ISP distribution networks while maintaining copper Ethernet connections toward local subscribers or network devices.
The supported link speed and distance depend on the selected compatible SFP module and fiber infrastructure. Optical transceivers should be selected according to fiber type, wavelength, connector and required link distance.
The netPower 15FR is part of MikroTik’s GPEN concept, which is designed to provide an Ethernet-based alternative for access networks that might otherwise use more expensive GPON infrastructure.
The concept can be useful for operators that want to distribute Internet connectivity through Ethernet while using fiber for uplinks and reverse PoE to simplify powering of network equipment in the access layer.
MikroTik netPower 15FR is designed for outdoor-oriented installations and has an IP54 enclosure. The device can be mounted on poles or other suitable infrastructure using the supplied fastening hardware and hose clamps.
MikroTik specifies a tested operating temperature range of -40°C to +70°C, making it suitable for a wide range of outdoor environments when installed according to the manufacturer’s guidelines.
netPower 15FR supports power input through its DC jack as well as passive PoE-in. The supported DC input range is 18–57V, while MikroTik recommends 36–57V for PoE-in operation.
The reverse-PoE architecture provides an additional way to power the switch from connected client equipment, which is one of the main reasons this platform is useful for distributed ISP access networks.
The CRS318-1Fi-15Fr-2S-OUT supports both RouterOS and SwOS. SwOS provides a switch-focused management environment, while RouterOS offers broader network-management capabilities.
With RouterOS, administrators can configure VLANs, bridges, routing, firewall functions and other supported networking features. The switch chip also supports hardware-assisted switching and relevant hardware offloading capabilities.
MikroTik publishes a non-blocking Layer 1 switching capacity of up to 7.2 Gbps, with approximately 3.6 Gbps Layer 1 throughput under its published test methodology. The published forwarding rate is approximately 5.4 Mpps.
These are laboratory measurements under specific packet sizes and configurations. Real-world throughput can vary depending on packet size, traffic patterns, RouterOS features, firewall rules, queues and other configuration parameters.
netPower 15FR uses the Marvell 98DX224S switch chip and a dual-core ARM processor running at 800MHz. It includes 256MB RAM and 16MB Flash.
The hardware architecture is designed primarily around switching and access-network connectivity. MikroTik documentation also lists hardware-assisted Layer 3 routing capabilities for this switch chip, subject to the relevant RouterOS hardware-offloading limitations.
For an ISP, netPower 15FR can act as a distributed access switch positioned closer to subscribers. The two SFP ports can provide fiber uplinks while the Ethernet ports connect subscriber-side CPE or local network equipment.
The reverse PoE design can reduce the need for a separate power source at the access switch location when the connected network architecture supports it. This makes the platform particularly interesting for dense residential or apartment deployments.
In multi-dwelling buildings, a centralized fiber connection can feed an outdoor or utility-area netPower 15FR switch, with Ethernet connections extending toward individual apartments or customer locations.
The suitability of this architecture depends on the required subscriber bandwidth. Because the Ethernet interfaces are 10/100 Mbps, the platform is best matched to deployments where Fast Ethernet access speeds are appropriate.
The device uses passive cooling and has no cooling fan. MikroTik specifies an IP54 enclosure and a tested operating temperature range of -40°C to +70°C.
For outdoor installations, proper cable routing, grounding, surge protection and installation practices should be followed according to the site design and local electrical/networking requirements.
A dedicated power adapter is not included with the MikroTik netPower 15FR. The product is designed to support multiple power-input methods, including DC input, PoE-in and reverse PoE from compatible connected devices.
When planning a deployment, the required power source and voltage should therefore be selected separately based on the network topology and connected equipment.
| Specification | MikroTik netPower 15FR |
|---|---|
| Product Code | CRS318-1Fi-15Fr-2S-OUT |
| Device Type | Outdoor Reverse PoE Ethernet Switch |
| Ethernet Ports | 16 × 10/100 Mbps |
| Reverse PoE Ports | 15 ports |
| PoE-Out | Ether15, Passive PoE |
| SFP Ports | 2 × SFP |
| CPU | ARM Dual Core, 800MHz |
| Switch Chip | Marvell 98DX224S |
| RAM | 256MB |
| Storage | 16MB Flash |
| Operating System | RouterOS / SwOS Dual Boot |
| RouterOS License | Level 5 |
| DC Input | 18–57V |
| PoE-In | Passive PoE, 18–57V |
| Recommended PoE-In | 36–57V |
| Maximum Power Consumption | 29W |
| Power Without Attachments | 10W |
| Cooling | Passive |
| Enclosure | Outdoor, IP54 |
| Operating Temperature | -40°C to +70°C tested |
| Dimensions | 304 × 212 × 71 mm |
MikroTik netPower 15FR is an outdoor reverse-PoE Ethernet switch designed primarily for ISP and GPEN access-network deployments. It has 16 × 10/100 Ethernet ports and 2 SFP ports.
The exact MikroTik product code is CRS318-1Fi-15Fr-2S-OUT.
It has 15 reverse PoE ports. These ports can receive power from compatible connected equipment. Ether15 additionally supports passive PoE-out.
No. Its 16 Ethernet interfaces are 10/100 Mbps Fast Ethernet. It also has two SFP ports for fiber connectivity.
Reverse PoE allows the switch to receive power from compatible connected network devices instead of requiring all of its operating power from a local dedicated power source.
Yes. It has 2 × SFP ports for fiber connectivity.
Yes. The device supports both RouterOS and SwOS and has a RouterOS Level 5 license.
Yes. It has an outdoor-oriented IP54 enclosure and a tested operating temperature range of -40°C to +70°C.
No. MikroTik states that the power supply is not included and must be purchased separately if required for the installation.
Its primary use is ISP and GPEN access-network distribution, especially where fiber uplinks, Fast Ethernet subscriber connections and reverse PoE-based power distribution are required.
IPVOICE TECHNOLOGIES supplies MikroTik networking products for ISP, WISP, enterprise, fiber and outdoor network deployments. For current pricing, GST billing, availability or bulk requirements for MikroTik netPower 15FR, contact our team for a quotation.
Explore our MikroTik networking products for routers, switches, wireless equipment and fiber networking solutions.
You can also explore our MikroTik Router category and related MikroTik networking products.
For bulk orders, ISP projects and customized requirements, visit our Get a Quote page.
MikroTik netPower 15FR CRS318-1Fi-15Fr-2S-OUT is an outdoor GPEN-oriented reverse-PoE switch featuring 16 × 10/100 Ethernet ports, 15 reverse PoE ports, passive PoE-out on Ether15 and 2 × SFP fiber ports. It supports RouterOS and SwOS, uses a Marvell 98DX224S switch chip with a dual-core 800MHz ARM processor, and provides an outdoor IP54 enclosure with operation tested from -40°C to +70°C.
