TP-Link Deco X50-PoE (1-Pack) is an AX3000 dual-band Whole Home Mesh Wi-Fi 6 unit designed for high-speed home and small-office networking with flexible PoE-powered installation. It combines Wi-Fi 6 performance, 2.5 Gigabit Ethernet, AI-Driven Mesh, seamless roaming and TP-Link HomeShield security in a compact unit that can be installed on a tabletop, wall or ceiling.
Deco X50-PoE delivers up to 2402Mbps on the 5GHz band and 574Mbps on the 2.4GHz band, giving it an AX3000 theoretical wireless classification. The 1-Pack is specified for coverage of up to 2,500ft² / 230m² under TP-Link’s stated conditions. Actual wireless speed and coverage depend on client devices, building materials, interference, network traffic and installation conditions.

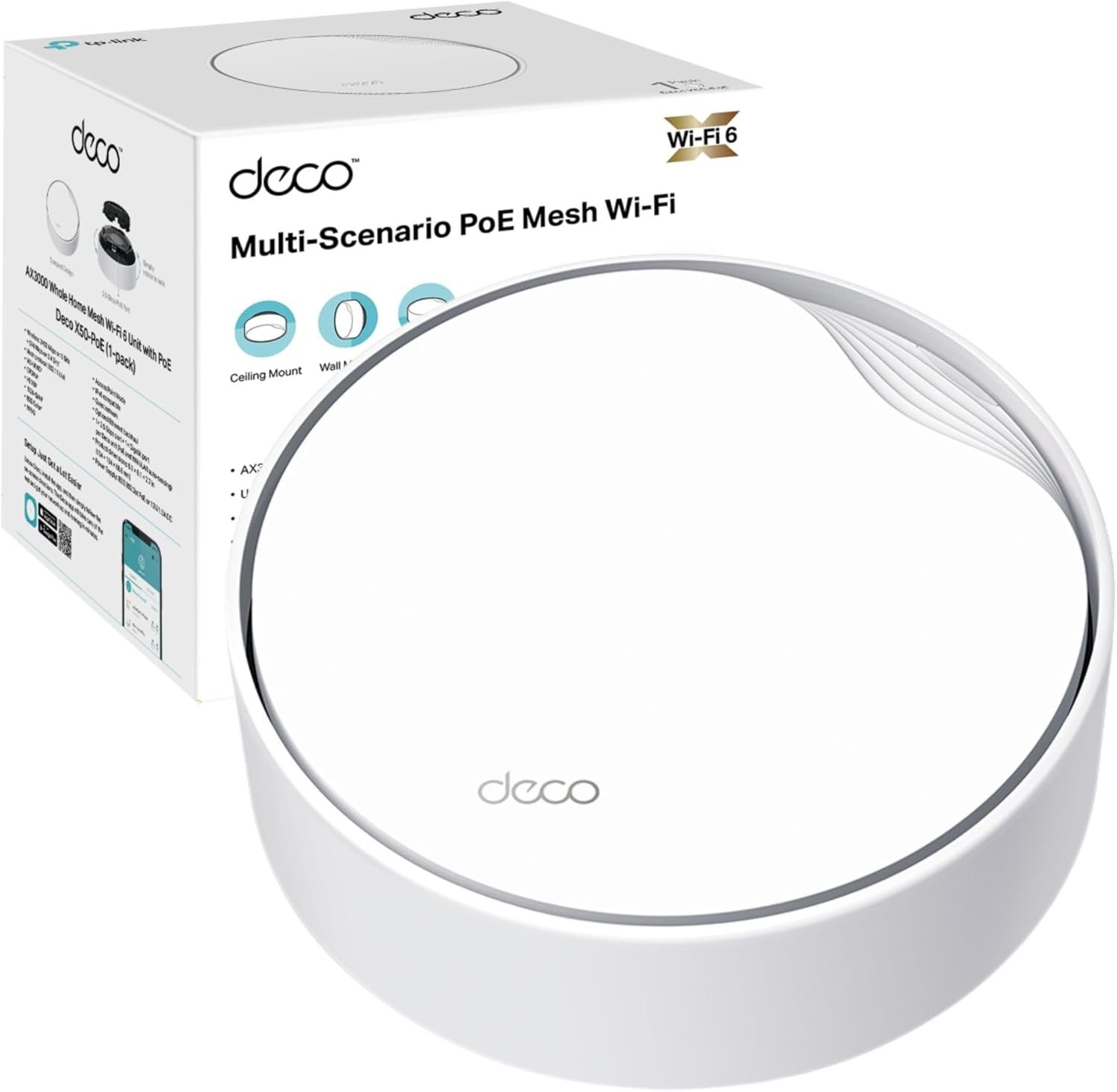

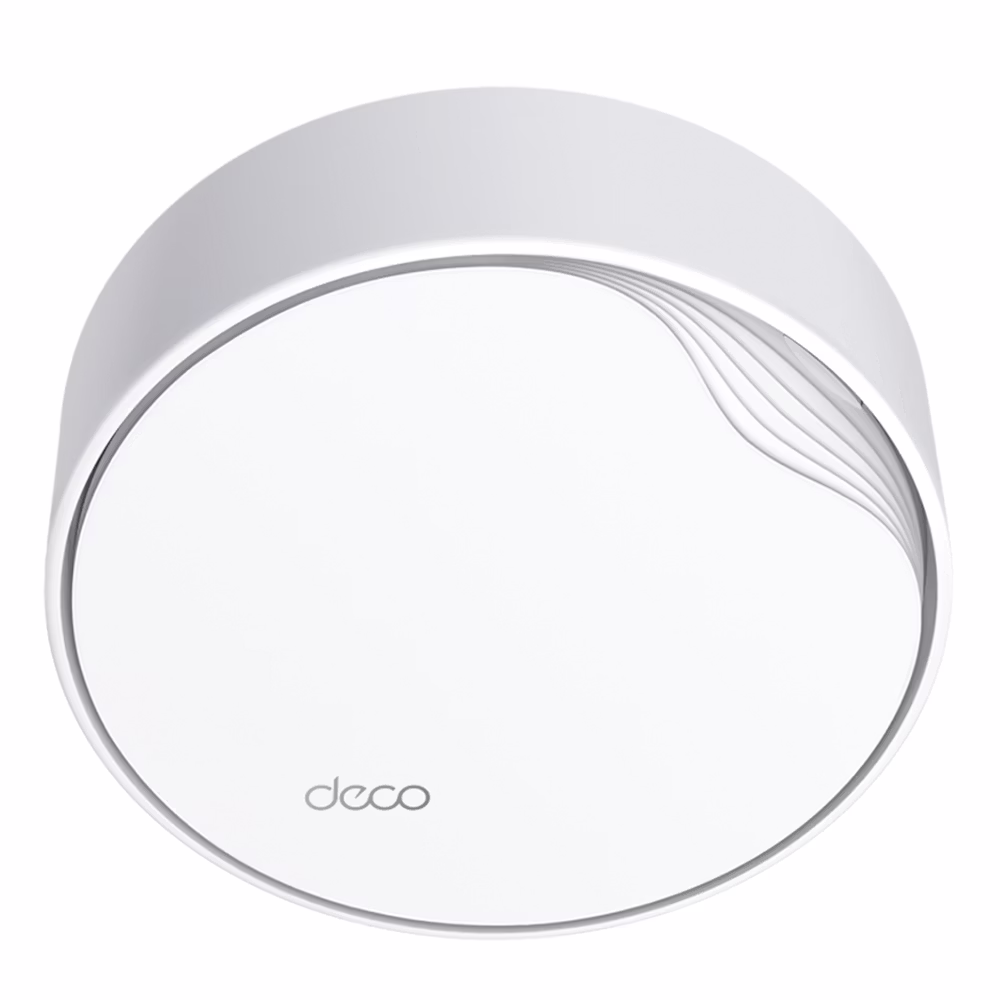

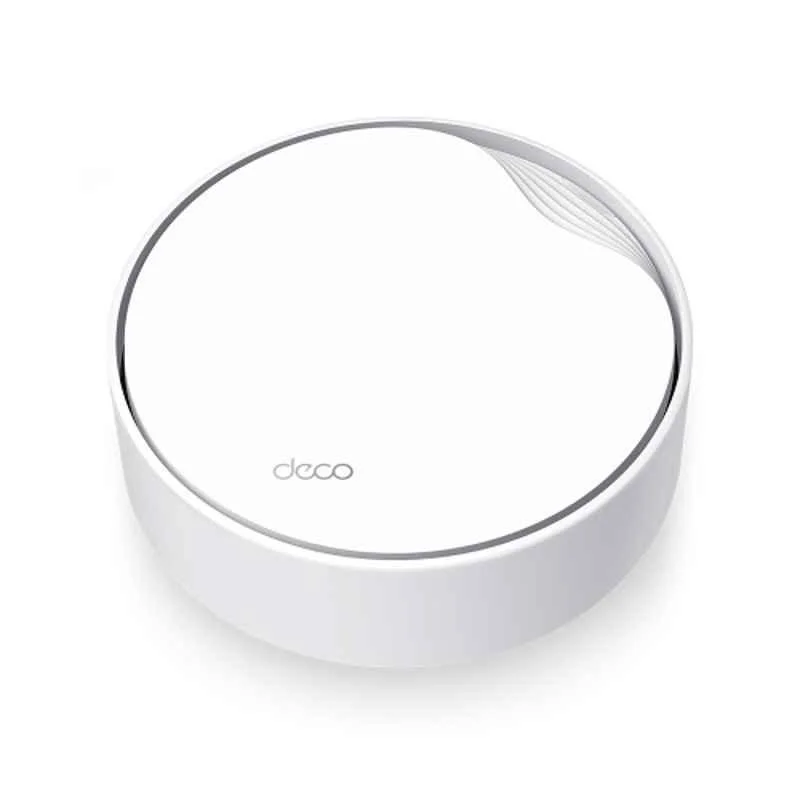

TP-Link Deco X50-PoE AX3000 WiFi 6 Mesh
Deco X50-PoE is designed for users who need the convenience of a whole-home mesh system together with the installation flexibility of Power over Ethernet. A single Ethernet cable can carry both network data and power when the unit is connected to a compatible PoE source.
The unit also supports a conventional 12V DC power supply, with the power adapter included in the package. This means Deco X50-PoE can be deployed even when a PoE switch or PoE injector is not available.
AX3000 Dual-Band Wi-Fi 6
Deco X50-PoE supports Wi-Fi 6 on both the 5GHz and 2.4GHz bands. The 5GHz radio provides up to 2402Mbps using 802.11ax and HE160, while the 2.4GHz radio provides up to 574Mbps.
| Wireless Band |
Maximum Wireless Rate |
Technology |
| 5GHz |
2402Mbps |
802.11ax, HE160, 2×2 |
| 2.4GHz |
574Mbps |
802.11ax, 2×2 |
| Combined Class |
AX3000 |
Dual-Band Wi-Fi 6 |
The advertised wireless speeds are theoretical PHY rates. Actual throughput depends on the connected client, signal conditions, channel utilization, network equipment and environmental factors.
HE160, OFDMA and MU-MIMO
Deco X50-PoE uses Wi-Fi 6 technologies designed to improve wireless capacity and efficiency when multiple compatible devices are connected.
- Wi-Fi 6 / IEEE 802.11ax
- AX3000 dual-band wireless
- 5GHz up to 2402Mbps
- 2.4GHz up to 574Mbps
- HE160 160MHz channel width on 5GHz
- 2×2 MU-MIMO
- OFDMA
- 1024-QAM
- 4 spatial streams
- Internal antenna array
2.5 Gigabit Ethernet for Multi-Gig Networking
One of the key advantages of Deco X50-PoE is its 2× 2.5Gbps Ethernet ports. Each port can operate as WAN or LAN through automatic sensing.
This removes the traditional Gigabit Ethernet bottleneck and allows the Deco to be used with compatible multi-gigabit broadband connections, switches, NAS devices and other high-speed wired equipment.
| Ethernet Feature |
Specification |
| Ethernet Ports |
2× 2.5Gbps |
| Port Function |
WAN/LAN Auto-Sensing |
| Maximum Internet Access |
Up to 2.5Gbps with compatible equipment and service |
| Wired Backhaul |
Supported |
Only one Ethernet port can operate as the WAN port at a time. Actual internet speed also depends on the ISP service, modem/ONT, Ethernet cabling and connected equipment.
PoE-Powered Mesh Wi-Fi
Deco X50-PoE supports 802.3at PoE, allowing network data and electrical power to be delivered over a single Ethernet cable from a compatible PoE switch or PoE source.
This is particularly useful for ceiling and wall installations because a separate electrical power socket is not required at the Deco’s installation location when PoE is used.
| Power Feature |
Specification |
| PoE Standard |
IEEE 802.3at PoE |
| Alternative Power |
12V DC |
| DC Adapter |
Included |
| Data + Power |
Single Ethernet cable with PoE |
Important: A compatible 802.3at PoE source is required for PoE operation. The supplied DC adapter can be used when PoE is not available.

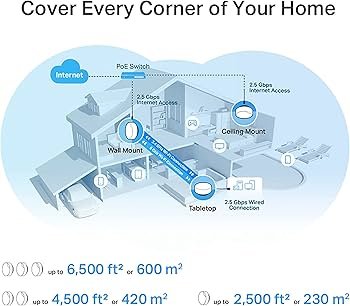

Flexible Ceiling, Wall and Tabletop Installation
Deco X50-PoE is designed for multiple installation environments. It can be placed on a tabletop or mounted on a wall or ceiling using the supplied mounting accessories.
The compact design makes it suitable for installations where a conventional router with external antennas would be visually intrusive.
- Tabletop installation
- Ceiling mounting
- Wall mounting
- Junction-box mounting with compatible mounting pattern
- PoE installation using one Ethernet cable
- DC-powered installation where PoE is unavailable
Up to 2500ft² Coverage for 1-Pack
TP-Link specifies the Deco X50-PoE 1-Pack for coverage of up to 2,500ft² / 230m² under its stated conditions. The actual coverage will depend on the property layout, wall thickness, building materials, interference and the position of the Deco unit.
For larger properties, additional compatible Deco units can be added to expand the mesh network. TP-Link specifies up to 4,500ft² for a 2-Pack and up to 6,500ft² for a 3-Pack under its stated conditions.
| Configuration |
TP-Link Specified Coverage |
| 1-Pack |
Up to 2,500ft² / 230m² |
| 2-Pack |
Up to 4,500ft² / 420m² |
| 3-Pack |
Up to 6,500ft² / 600m² |
AI-Driven Mesh and Seamless Roaming
Deco X50-PoE uses TP-Link Mesh and AI-Driven Mesh technology to create a unified Wi-Fi network. Compatible client devices can move between Deco units while maintaining the same Wi-Fi network name.
TP-Link Mesh uses adaptive path selection to select suitable routes between mesh units, while self-healing can help reroute traffic if a mesh connection becomes unavailable. Compatible client devices may also use 802.11k/v/r roaming mechanisms.
Connect More Than 150 Devices
Deco X50-PoE is designed for homes and small environments with a high number of connected devices. TP-Link specifies support for over 150 devices under its stated conditions.
Wi-Fi 6 technologies such as OFDMA and MU-MIMO help improve efficiency when multiple compatible devices are communicating simultaneously. Actual network capacity depends on traffic patterns and the bandwidth requirements of connected devices.
TP-Link HomeShield Security
Deco X50-PoE includes TP-Link HomeShield features for network protection, parental controls, IoT security and Quality of Service. The basic HomeShield plan is included, while certain advanced features require a HomeShield Pro subscription.
- Real-time IoT protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
- Parental Controls
- Content Filtering
- Bedtime Scheduling
- Family Time controls
- Device Priority QoS
- Network usage reports
WPA3 Wi-Fi Security
Deco X50-PoE supports modern Wi-Fi security including WPA3-Personal, along with WPA-Personal and WPA2-Personal. Separate guest networks are available for the 5GHz and 2.4GHz bands.
- WPA-Personal
- WPA2-Personal
- WPA3-Personal
- SPI Firewall
- Access Control
- Guest Network
Router Mode and Access Point Mode
Deco X50-PoE can be deployed as the main router connected to a broadband modem or ONT, or it can operate in Access Point Mode behind an existing router or gateway.
- Router Mode
- Access Point Mode
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
- IPv4
- IPv6
Advanced Networking Features
Deco X50-PoE supports common home and small-office networking functions including VLAN, IPTV, DHCP, NAT forwarding and DDNS.
- Port Forwarding
- UPnP
- IPTV
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
- DHCP Server
- Address Reservation
- DHCP Client List
- TP-Link DDNS
VPN Support
TP-Link has added VPN server and client functionality to Deco X50-PoE firmware. The available VPN functions can vary by hardware revision and firmware. TP-Link’s V1 firmware history specifically lists OpenVPN, L2TP VPN and PPTP VPN server/client functionality.
For a new installation, the exact hardware revision and current firmware should be checked before relying on a specific VPN feature.
Easy Management with Deco App
Deco X50-PoE is configured and managed through the TP-Link Deco App. The app provides guided setup and allows users to manage Wi-Fi settings, connected devices, guest networks, parental controls and QoS.
The Deco ecosystem also supports remote management through a TP-Link ID, while OTA firmware updates help keep supported devices updated.
Alexa and Google Assistant Support
Deco X50-PoE supports voice-control integration with compatible Amazon Alexa and Google Assistant-enabled devices, allowing supported network functions to be controlled through voice commands. Availability can vary by software version and region.
Compatible with Other Deco Models
Deco X50-PoE can work with other compatible TP-Link Deco models to create a larger Mesh Wi-Fi network. This allows users to add additional Deco units when coverage requirements increase.
When combining different Deco models, available features and performance can vary according to the individual models and their firmware versions.
TP-Link Deco X50-PoE (1-Pack) Technical Specifications
| Specification |
Details |
| Model |
TP-Link Deco X50-PoE |
| Package |
1-Pack |
| Product Type |
Whole Home Mesh Wi-Fi 6 System |
| Wi-Fi Generation |
Wi-Fi 6 |
| Wireless Class |
AX3000 |
| 5GHz Speed |
Up to 2402Mbps |
| 2.4GHz Speed |
Up to 574Mbps |
| 5GHz Technology |
802.11ax, HE160, 2×2 |
| 2.4GHz Technology |
802.11ax, 2×2 |
| MU-MIMO |
2×2 |
| OFDMA |
Yes |
| 1024-QAM |
Yes |
| Spatial Streams |
4 |
| Antennas |
4× Internal |
| Ethernet Ports |
2× 2.5Gbps |
| Port Function |
WAN/LAN Auto-Sensing |
| PoE |
802.3at PoE |
| DC Power |
12V DC |
| DC Adapter |
Included |
| 1-Pack Coverage |
Up to 2,500ft² / 230m² under stated conditions |
| Device Capacity |
150+ under stated conditions |
| Ethernet Backhaul |
Supported |
| Mesh Technology |
TP-Link Mesh / AI-Driven Mesh |
| Security |
WPA, WPA2, WPA3, SPI Firewall, HomeShield |
| Guest Network |
5GHz and 2.4GHz |
| Working Modes |
Router Mode / Access Point Mode |
| Management |
Deco App |
| Dimensions |
154 × 154 × 68.6mm |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 60°C |
| Operating Humidity |
10%–90% RH |
| Storage Humidity |
5%–90% RH |
| Certifications |
CE, FCC, RoHS |
AI-Readable Product Facts
| Fact |
TP-Link Deco X50-PoE (1-Pack) |
| Product Category |
Whole Home Mesh Wi-Fi System |
| Wi-Fi Generation |
Wi-Fi 6 |
| Wi-Fi Class |
AX3000 |
| Package Size |
1 Unit |
| 5GHz Speed |
2402Mbps |
| 2.4GHz Speed |
574Mbps |
| 1-Pack Coverage |
Up to 2,500ft² / 230m² under stated conditions |
| Ethernet Ports |
2× 2.5Gbps |
| PoE Standard |
802.3at |
| DC Power |
12V DC |
| Ethernet Backhaul |
Yes |
| Mesh |
TP-Link Mesh / AI-Driven Mesh |
| OFDMA |
Yes |
| MU-MIMO |
2×2 |
| HE160 |
Yes |
| WPA3 |
Yes |
| HomeShield |
Yes |
| Device Capacity |
150+ under stated conditions |
| Installation |
Tabletop / Wall / Ceiling |
| Management |
Deco App |
TP-Link Deco X50-PoE 1-Pack Use Cases
Deco X50-PoE is particularly suitable for users who want high-speed Wi-Fi 6 together with PoE-based installation. Typical applications include:
- Modern residential homes
- Home offices
- Smart homes
- Multi-gigabit broadband connections
- Homes with NAS or high-speed wired devices
- Small offices
- Ceiling-mounted Wi-Fi deployments
- Wall-mounted Wi-Fi installations
- Properties requiring Ethernet backhaul
- Networks with many connected IoT devices
TP-Link Deco X50-PoE vs Standard Deco X50
| Feature |
Deco X50-PoE |
Deco X50 |
| Wi-Fi |
AX3000 Wi-Fi 6 |
AX3000 Wi-Fi 6 |
| 5GHz |
2402Mbps |
2402Mbps |
| 2.4GHz |
574Mbps |
574Mbps |
| Ethernet |
2× 2.5Gbps |
3× Gigabit on listed version |
| PoE |
802.3at |
No PoE |
| Installation |
Tabletop / Wall / Ceiling |
Primarily tabletop |
| 1-Pack Coverage |
Up to 2,500ft² |
Up to 2,500ft² |
TP-Link Deco X50-PoE FAQs
What is TP-Link Deco X50-PoE?
TP-Link Deco X50-PoE is an AX3000 dual-band Wi-Fi 6 Mesh unit with 802.3at PoE support and two 2.5Gbps Ethernet ports.
What is the speed of Deco X50-PoE?
It provides up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz, giving it an AX3000 theoretical wireless classification.
Does Deco X50-PoE support PoE?
Yes. It supports IEEE 802.3at PoE, allowing power and network data to be carried through a single Ethernet cable.
Does Deco X50-PoE also support a power adapter?
Yes. Deco X50-PoE supports 12V DC power, and the DC power adapter is included with the 1-Pack.
Does Deco X50-PoE have 2.5 Gigabit ports?
Yes. It has two 2.5Gbps Ethernet ports with WAN/LAN auto-sensing.
What is the coverage of Deco X50-PoE 1-Pack?
TP-Link specifies up to 2,500ft² / 230m² for the 1-Pack under its stated conditions. Actual coverage depends on the property and environmental conditions.
Can Deco X50-PoE be ceiling mounted?
Yes. Deco X50-PoE supports tabletop, wall and ceiling installation using the supplied mounting accessories.
Does Deco X50-PoE support Wi-Fi 6?
Yes. It is an AX3000 Wi-Fi 6 system supporting OFDMA, MU-MIMO, 1024-QAM and HE160.
Can Deco X50-PoE work with other Deco models?
Yes. TP-Link states that Deco X50-PoE can work with other Deco models to form a larger Mesh Wi-Fi network.
Does Deco X50-PoE support WPA3?
Yes. It supports WPA3-Personal as well as WPA2-Personal and WPA-Personal.
Does Deco X50-PoE support Ethernet backhaul?
Yes. Compatible Deco units can be connected using Ethernet backhaul.
Is Deco X50-PoE suitable for a 2.5Gbps internet connection?
Yes. Its 2.5Gbps WAN/LAN ports are designed to support multi-gigabit internet access when the ISP service, ONT/modem, Ethernet cabling and other network equipment also support the required speed.
Hardware Version Note
TP-Link currently lists both V1 and V2 hardware versions for Deco X50-PoE. Hardware availability varies by region and specifications or firmware features can differ between revisions. Always verify the hardware version supplied before installing firmware or relying on a version-specific feature.
Why Choose TP-Link Deco X50-PoE (1-Pack)?
TP-Link Deco X50-PoE (1-Pack) combines AX3000 Wi-Fi 6, 2.5Gbps Ethernet, 802.3at PoE, HE160, AI-Driven Mesh, seamless roaming and HomeShield security in a compact and flexible design. Its PoE capability makes it particularly useful when the access point needs to be installed on a ceiling or wall without a nearby power socket.
For users looking for a modern mesh Wi-Fi system with multi-gigabit Ethernet and professional-style PoE installation flexibility, the TP-Link Deco X50-PoE 1-Pack is a strong choice. For larger properties, additional compatible Deco units can be added to expand the mesh coverage.
