The TP-Link EAP215-Bridge KIT provides 867Mbps speeds over 5GHz for stable point-to-point wireless links up to 5km. This Omada-integrated solution simplifies outdoor networking for IP cameras and remote building connectivity.
Original price was: ₹29,999.000.₹12,299.000Current price is: ₹12,299.000.
In stock
In stock
To pick up today
Free
Our courier will deliver to the specified address
2-5 Days
Free
Fast Air Cargo delivery
DTDC Air courier will deliver to the specified address
1-2 Days
Starting From INR 240 Only
TP-Link EAP215-Bridge KIT is a dedicated 5GHz wireless point-to-point bridge solution designed to establish reliable long-distance wireless network connections between two locations. It is suitable for connecting buildings, offices, warehouses, CCTV sites, industrial areas, campuses, farms and other locations where running physical Ethernet or fiber cabling between two points may be difficult or expensive.
The EAP215-Bridge KIT operates in the 5GHz band and uses 802.11ac wireless technology to provide an aggregate wireless rate of up to 750Mbps. The kit includes two pre-paired bridge units, allowing users to establish a wireless bridge link between two locations without requiring a complicated point-to-point configuration process.
With directional high-gain antennas, dedicated bridge functionality, automatic pairing and outdoor installation capabilities, the EAP215-Bridge KIT is designed specifically for wireless backhaul and point-to-point networking rather than conventional indoor Wi-Fi coverage.
The EAP215-Bridge KIT is designed to create a dedicated wireless point-to-point link between two network locations. One bridge unit is installed at the main network location while the second unit is installed at the remote location.
Once aligned and connected, the two units create a wireless Ethernet bridge, allowing devices at the remote location to communicate with the main network without requiring a physical Ethernet cable between the buildings.
This makes the EAP215-Bridge KIT useful for extending network connectivity across roads, open areas, courtyards, warehouses, farms and other locations where conventional cabling is impractical.
The bridge operates in the 5GHz band and uses IEEE 802.11ac wireless technology. Its AC750-class wireless capability provides an aggregate theoretical wireless rate of up to approximately 750Mbps.
Actual throughput depends on distance, line of sight, interference, channel conditions, antenna alignment, environmental conditions and the connected network equipment.
Because the EAP215-Bridge KIT is designed as a dedicated wireless bridge rather than a conventional multi-client access point, its architecture is optimized for connecting two fixed network locations.

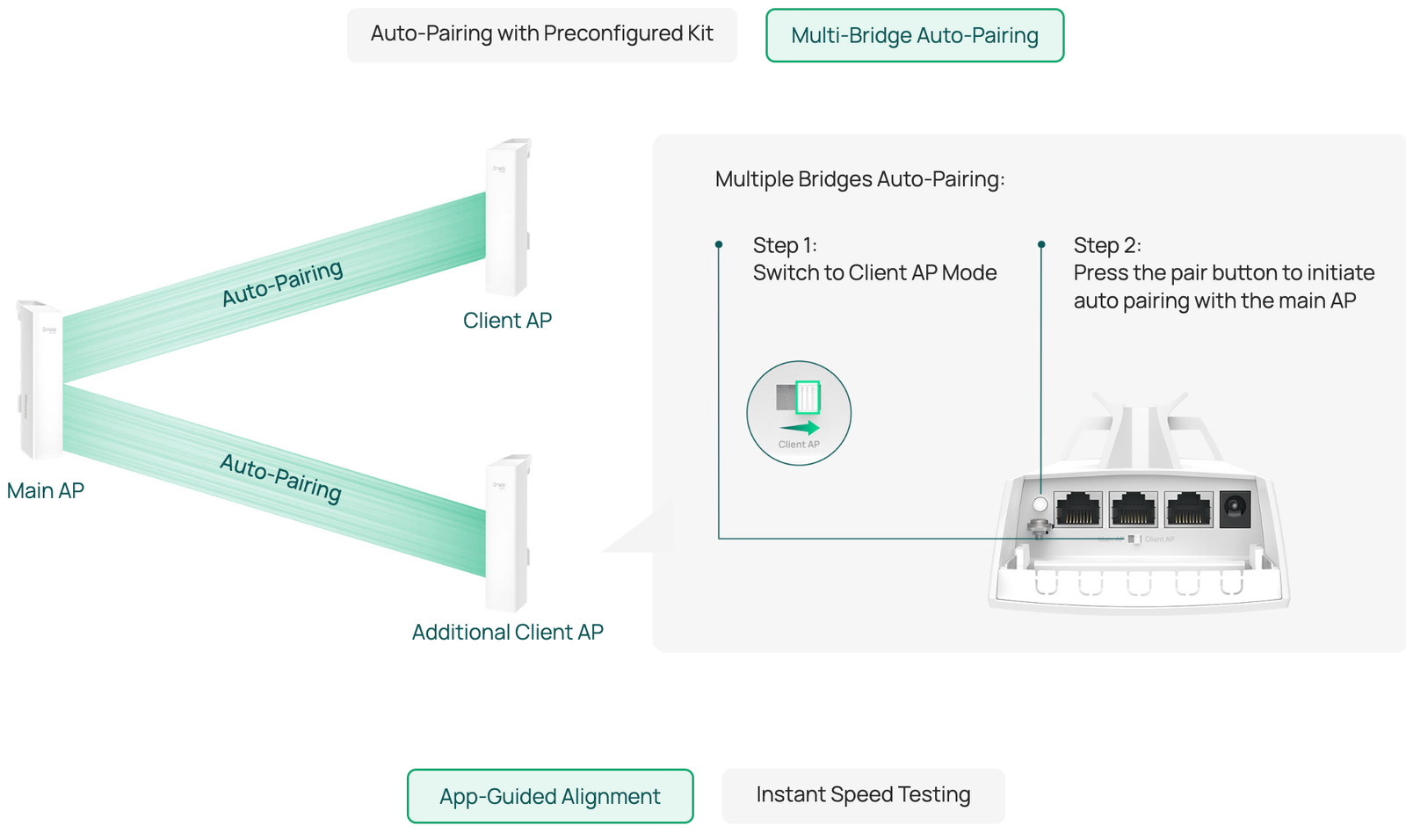

One of the main advantages of the EAP215-Bridge KIT is that the two bridge devices are designed to work together as a dedicated bridge pair.
This simplifies deployment compared with building a point-to-point link from separate wireless devices that need to be manually configured and paired.
After installation and physical alignment, the bridge pair can provide a transparent network connection between the two locations, allowing Ethernet devices at the remote end to access resources connected to the main network.
The EAP215-Bridge KIT can be used to establish wireless connectivity between buildings without installing a dedicated Ethernet cable or fiber connection between them.
Common examples include:
A clear line of sight between the two bridge units is important for achieving reliable long-distance wireless performance.
The EAP215-Bridge KIT can be used as a wireless backhaul for IP surveillance systems. A remote CCTV location can connect cameras to a network switch or NVR through the wireless bridge, eliminating the need to run a physical network cable between the camera location and the main network.
For example, cameras installed at a gate, warehouse, parking area or remote building can connect to a local Ethernet switch. The EAP215-Bridge KIT can then transport that network traffic wirelessly back to the main building.
The actual number of cameras supported depends on camera resolution, compression, frame rate, bitrate, available wireless throughput and network configuration.

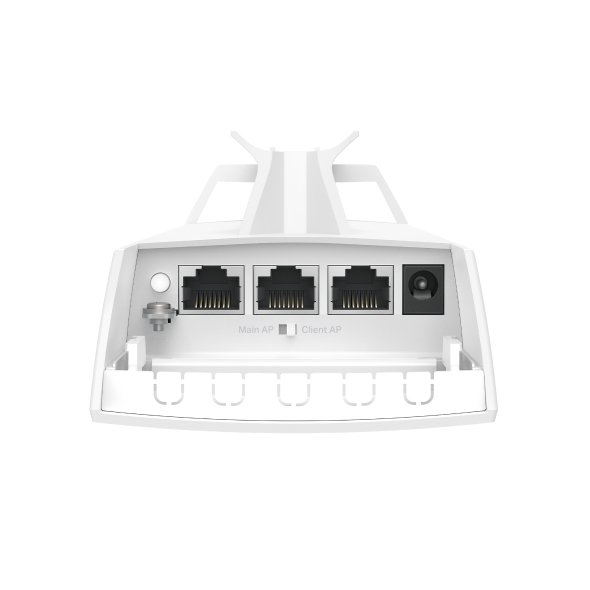

Each EAP215-Bridge unit provides Ethernet connectivity for connecting wired network equipment. This allows the wireless bridge to integrate with existing Ethernet networks, switches, routers, NVRs, access points and other network devices.
The Ethernet interface allows the wireless bridge to function as a transparent connection between the two network locations, extending the existing LAN without requiring a separate Internet connection at the remote location.
The EAP215-Bridge KIT supports Power over Ethernet, allowing the bridge unit and network connectivity to be delivered through Ethernet cabling from the appropriate PoE equipment or included power solution, depending on the package and deployment configuration.
PoE simplifies outdoor installation because a separate electrical connection at the bridge mounting location may not be required when the appropriate PoE power source is available.
The EAP215-Bridge KIT uses a directional antenna design intended to focus wireless energy toward the remote bridge unit.
Directional wireless links are useful for point-to-point deployments because the antennas can be aimed directly toward each other. Proper alignment and a clear line of sight are important factors in achieving reliable connectivity and optimal performance.
The EAP215-Bridge KIT is designed for outdoor wireless bridge applications. Its enclosure and mounting design allow it to be installed on suitable walls, poles or other structures where a point-to-point wireless connection is required.
For outdoor deployments, the installation should consider weather exposure, mounting stability, lightning protection, grounding, cable routing and the local RF environment.
The EAP215-Bridge KIT is designed to simplify point-to-point wireless deployment. The two bridge units can be installed at the required locations, connected to the respective Ethernet networks and aligned toward each other.
The pre-paired architecture reduces configuration complexity and makes the kit suitable for installers who need to establish a dedicated wireless link quickly.

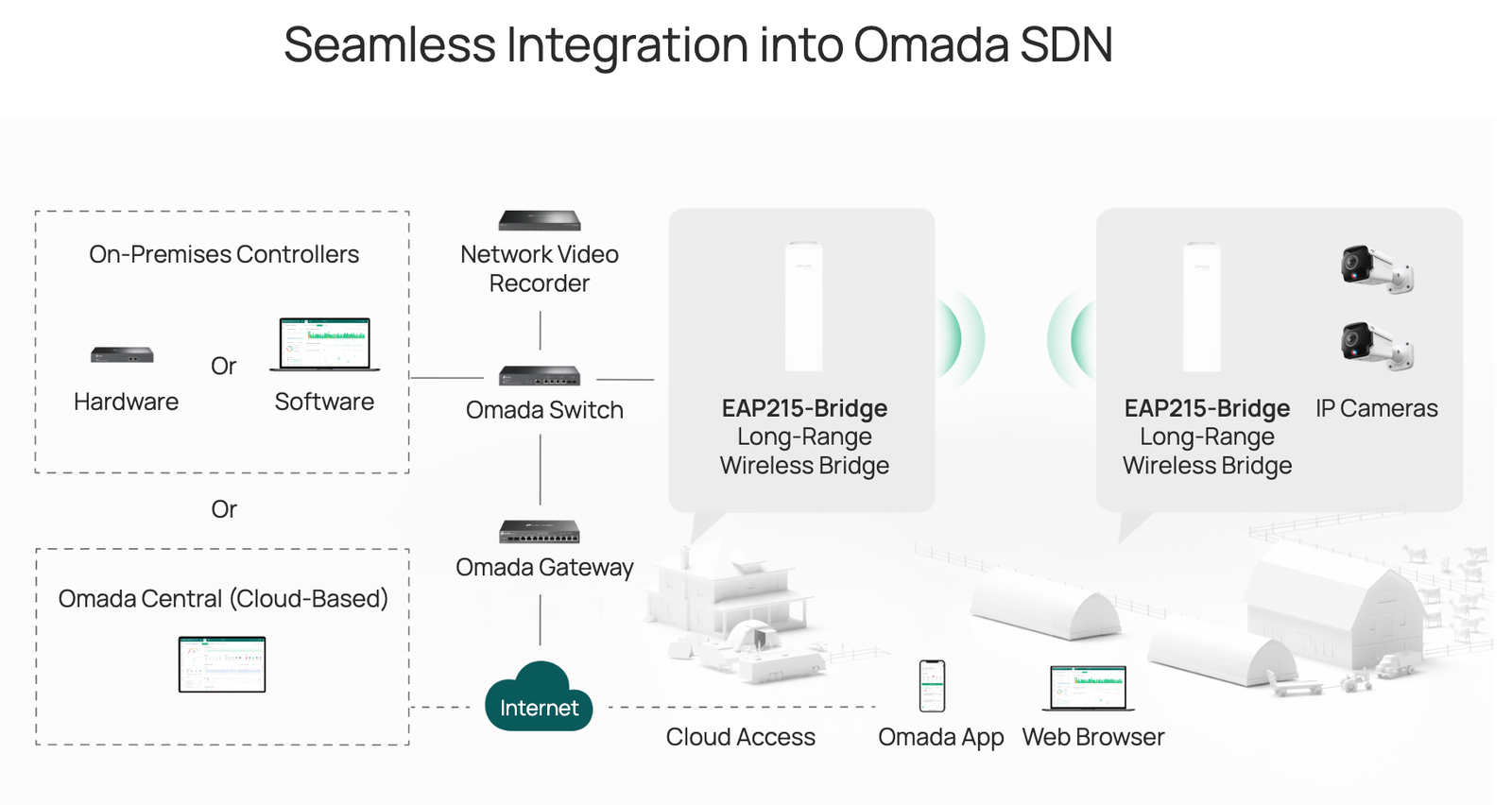

A wireless bridge can effectively extend an Ethernet network from one location to another without requiring a separate routing infrastructure between the two sites.
For example, if a main office has a router and network switch, the remote office can connect its local switch to the second EAP215-Bridge unit. Devices at the remote site can then communicate with network resources at the main location through the wireless bridge.
This architecture can be useful for extending access to Internet connectivity, NVR systems, servers, printers and other LAN resources.
| Specification | Details |
|---|---|
| Product | TP-Link EAP215-Bridge KIT |
| Product Type | Wireless Point-to-Point Bridge Kit |
| Wireless Standard | IEEE 802.11ac |
| Wireless Band | 5GHz |
| Wireless Class | AC750 |
| Maximum Aggregate Wireless Rate | Up to 750Mbps |
| Bridge Configuration | Point-to-Point |
| Bridge Units | 2 × Pre-Paired Units |
| Antenna | Directional Integrated Antenna |
| Ethernet Connectivity | Gigabit Ethernet |
| PoE | Supported |
| Management | Web-Based Management |
| Installation | Wall / Pole Mount |
| Deployment | Outdoor Point-to-Point Wireless Link |
For CCTV installations where the remote camera location is separated from the main network by an open area or road, the EAP215-Bridge KIT can provide a practical wireless backhaul solution.
A typical installation can use one bridge at the main building and another at the remote camera location. IP cameras can connect to a PoE switch at the remote location, while the bridge transports the camera traffic wirelessly to the main network.
The actual camera capacity should always be calculated based on the combined bitrate of all cameras and the expected real-world wireless throughput of the link.
Installing Ethernet cable between two separate buildings can require trenching, conduit, poles or other physical infrastructure. A wireless bridge can eliminate the need for a physical network cable between the two locations when the wireless path is suitable.
The EAP215-Bridge KIT can therefore be useful when:
For reliable point-to-point wireless connectivity, both bridge units should have a suitable line of sight. Physical obstructions, trees, buildings, terrain, RF interference and incorrect antenna alignment can affect wireless performance.
The mounting structure should be stable, and outdoor installations should use appropriate grounding, surge protection and weather-resistant cable installation practices according to the local installation environment.
TP-Link EAP215-Bridge KIT provides a dedicated solution for extending Ethernet connectivity between two locations without installing a physical network cable between them. Its 5GHz 802.11ac wireless technology, AC750-class performance, directional antenna design and pre-paired bridge architecture make it suitable for point-to-point networking applications.
It is particularly useful for CCTV backhaul, building-to-building networking, warehouse connectivity, remote office links and other locations where conventional cabling is difficult or expensive.
TP-Link EAP215-Bridge KIT is a 5GHz AC750 point-to-point wireless bridge kit designed to connect two network locations wirelessly.
The kit is designed as a two-unit wireless bridge solution, with two bridge devices used at the two ends of the point-to-point link.
The EAP215-Bridge operates in the 5GHz wireless band using 802.11ac technology.
The EAP215-Bridge is an AC750-class wireless bridge with an aggregate theoretical wireless rate of up to approximately 750Mbps.
Yes. It can be used as a wireless backhaul to connect remote IP cameras or a remote CCTV network to the main network, provided the available wireless throughput is sufficient for the required camera traffic.
Yes. Building-to-building networking is one of the primary applications of a point-to-point wireless bridge. A suitable line of sight between the two bridge units is important.
Yes. The bridge supports Power over Ethernet for simplified installation where a compatible PoE power source is used.
The EAP215-Bridge KIT is designed primarily as a dedicated point-to-point bridge rather than a conventional indoor Wi-Fi access point. Its main purpose is to create a wireless network link between two fixed locations.
A clear and unobstructed line of sight is strongly recommended for point-to-point wireless bridge deployments. Buildings, trees, terrain and other obstructions can significantly affect signal quality and throughput.
Yes. It can be used to extend an existing Ethernet network from one location to another through a wireless point-to-point connection.
Typical applications include building-to-building networking, CCTV backhaul, warehouses, factories, campuses, farms, remote offices, security cabins and other locations requiring wireless Ethernet extension.
