The MikroTik MantBox ax 15s L22UGS-5HaxD2HaxD-15S is an IP67 rugged outdoor Wi-Fi 6 sector antenna (100°) with dual-band MIMO radios and a 2.5 Gigabit SFP port for fiber backhaul.
Original price was: ₹29,999.000.₹19,188.000Current price is: ₹19,188.000.
In stock
In stock
To pick up today
Free
Our courier will deliver to the specified address
2-5 Days
Free
Fast Air Cargo delivery
DTDC Air courier will deliver to the specified address
1-2 Days
Starting From INR 240 Only
MikroTik MantBox ax 15s, model L22UGS-5HaxD2HaxD-15S, is a professional outdoor WiFi 6 wireless networking device designed for sector-based wireless coverage, outdoor broadband, ISP deployments, point-to-multipoint networks and other demanding wireless infrastructure applications.
The MantBox ax 15s combines a dual-band WiFi 6 radio with an integrated 15 dBi 5 GHz sector antenna, a Gigabit Ethernet port, a 2.5 Gigabit Ethernet interface, RouterOS v7, passive PoE input and a rugged outdoor enclosure.
Unlike a conventional indoor WiFi access point, the MikroTik MantBox ax 15s is designed around a directional sector coverage architecture. Its integrated sector antenna is intended to concentrate wireless coverage over a defined area, making it particularly suitable for wireless ISPs, outdoor campuses, industrial sites, rural broadband and point-to-multipoint deployments.
The MikroTik MantBox ax 15s uses the 802.11ax WiFi 6 standard and provides dual-band wireless connectivity. The 2.4 GHz radio supports 802.11b/g/n/ax, while the 5 GHz radio supports 802.11a/n/ac/ax.
The 2.4 GHz radio supports a maximum theoretical data rate of up to 574 Mbps, while the 5 GHz radio supports up to 2400 Mbps under the specified wireless configuration.
Actual throughput depends on client capabilities, channel width, signal level, interference, distance, antenna characteristics, environmental conditions and network configuration. Wireless PHY rates should not be interpreted as guaranteed end-user throughput.
One of the main features of the MantBox ax 15s is its integrated 15 dBi 5 GHz sector antenna. The antenna provides a wide horizontal coverage pattern suitable for sector-based outdoor wireless networks.
The specified horizontal beamwidth is approximately 120°. This makes the device suitable for deployments where one wireless station needs to provide coverage across a defined outdoor sector rather than a full 360-degree area.
For larger wireless networks, multiple sector devices can be strategically positioned to provide broader coverage. Actual coverage depends on mounting height, terrain, interference, antenna orientation, transmit power, client device capability and regulatory requirements.
The MikroTik MantBox ax 15s is particularly suited to point-to-multipoint wireless architectures. A central wireless station can use the sector antenna to communicate with multiple compatible client devices positioned within its coverage area.
This type of architecture is commonly used by wireless ISPs, rural broadband providers, private campus networks, industrial sites and large outdoor properties.
Proper RF planning is important for point-to-multipoint deployments. Channel selection, frequency reuse, client distribution, antenna height and sector overlap should be planned according to the network environment.

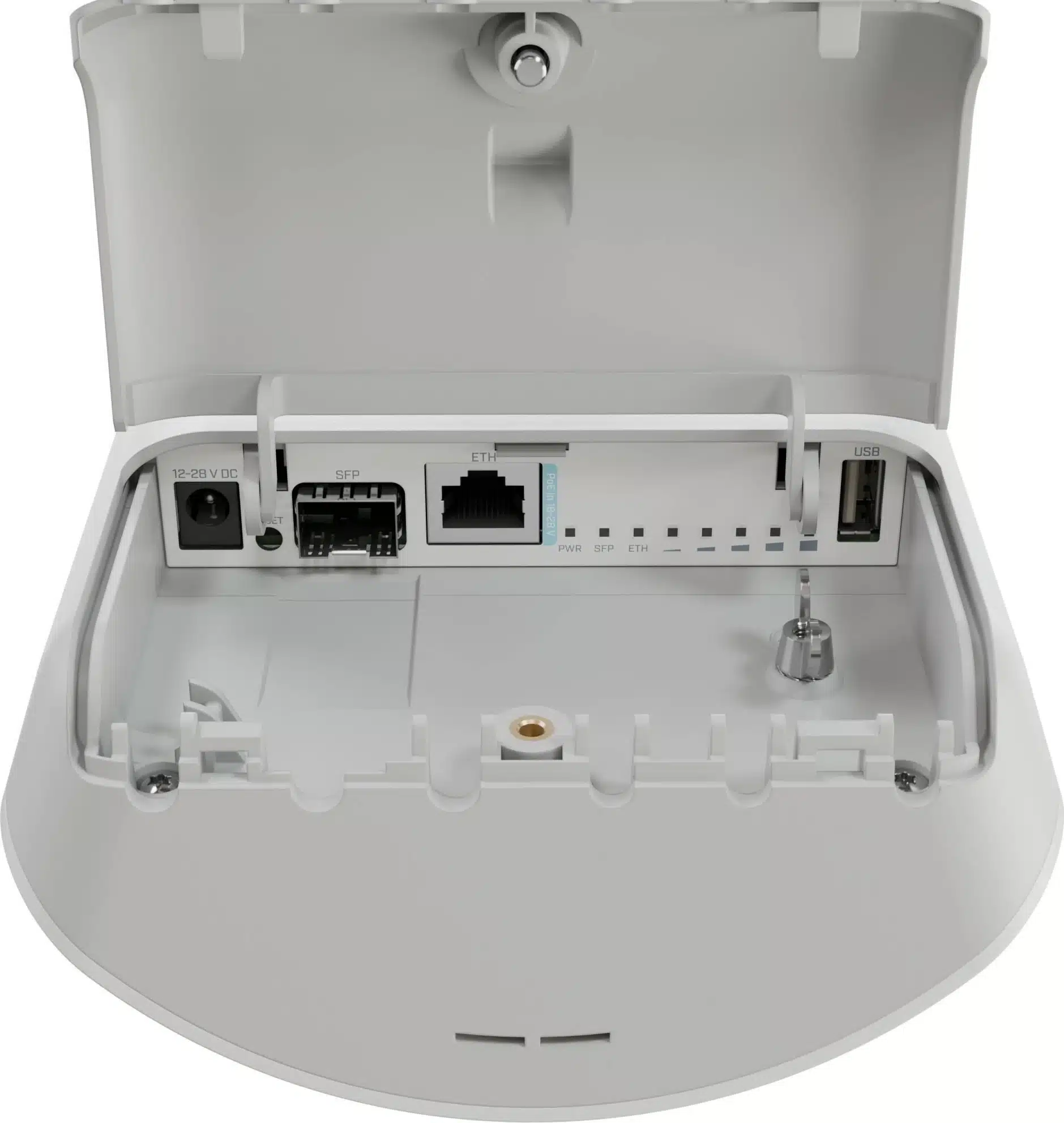

The MantBox ax 15s provides a 2.5 Gigabit Ethernet interface in addition to a standard Gigabit Ethernet port. The multi-gigabit interface provides additional wired bandwidth for suitable network deployments.
This can be useful when the wireless sector is connected to a higher-speed switching or routing infrastructure. A 2.5GbE uplink can also provide additional headroom compared with a traditional 1GbE-only connection.
The MikroTik MantBox ax 15s runs RouterOS v7 with a Level 4 license. RouterOS provides advanced networking and wireless management capabilities for professional deployments.
Network administrators can configure routing, firewall policies, VLANs, VPNs, wireless settings, traffic management and other networking functions according to the project architecture.
This makes MantBox ax 15s suitable not only as a wireless access point but also as part of a more customized MikroTik outdoor network solution.

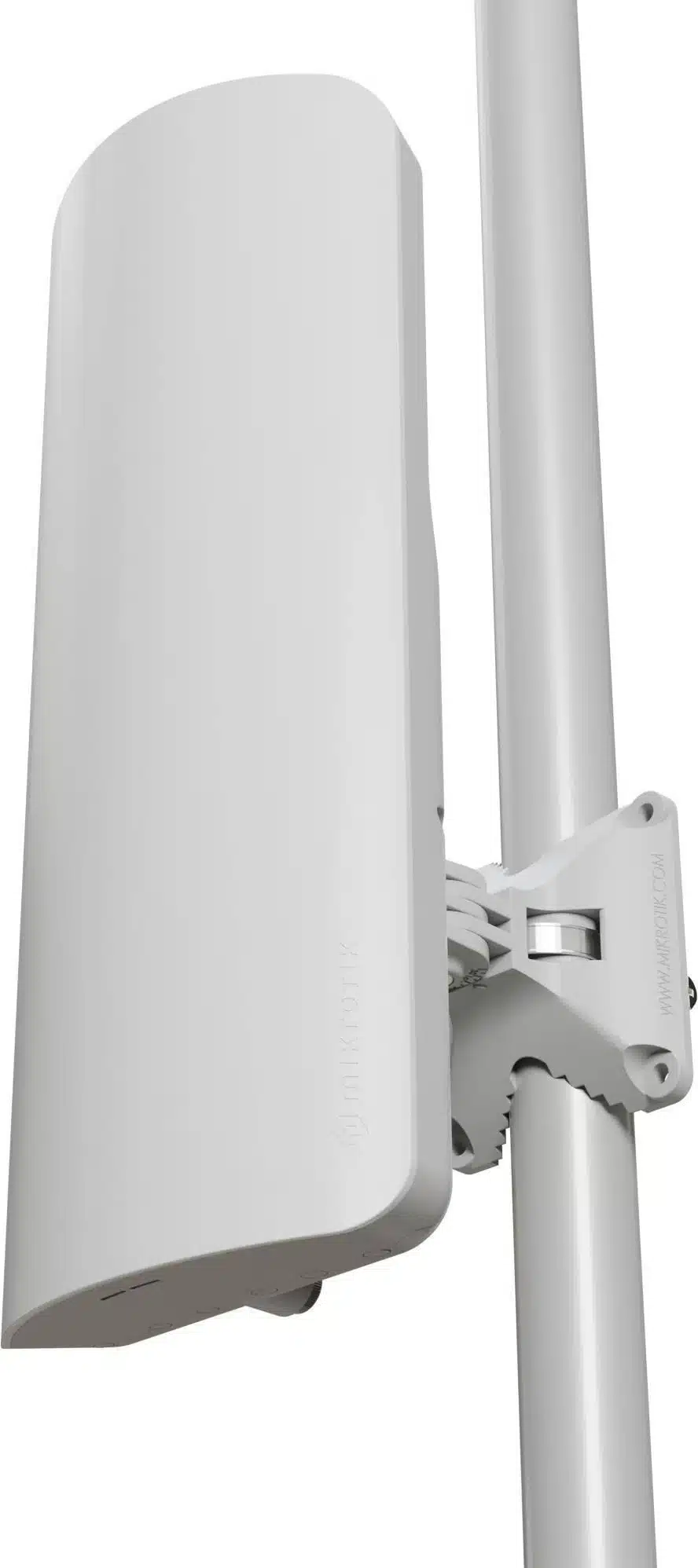

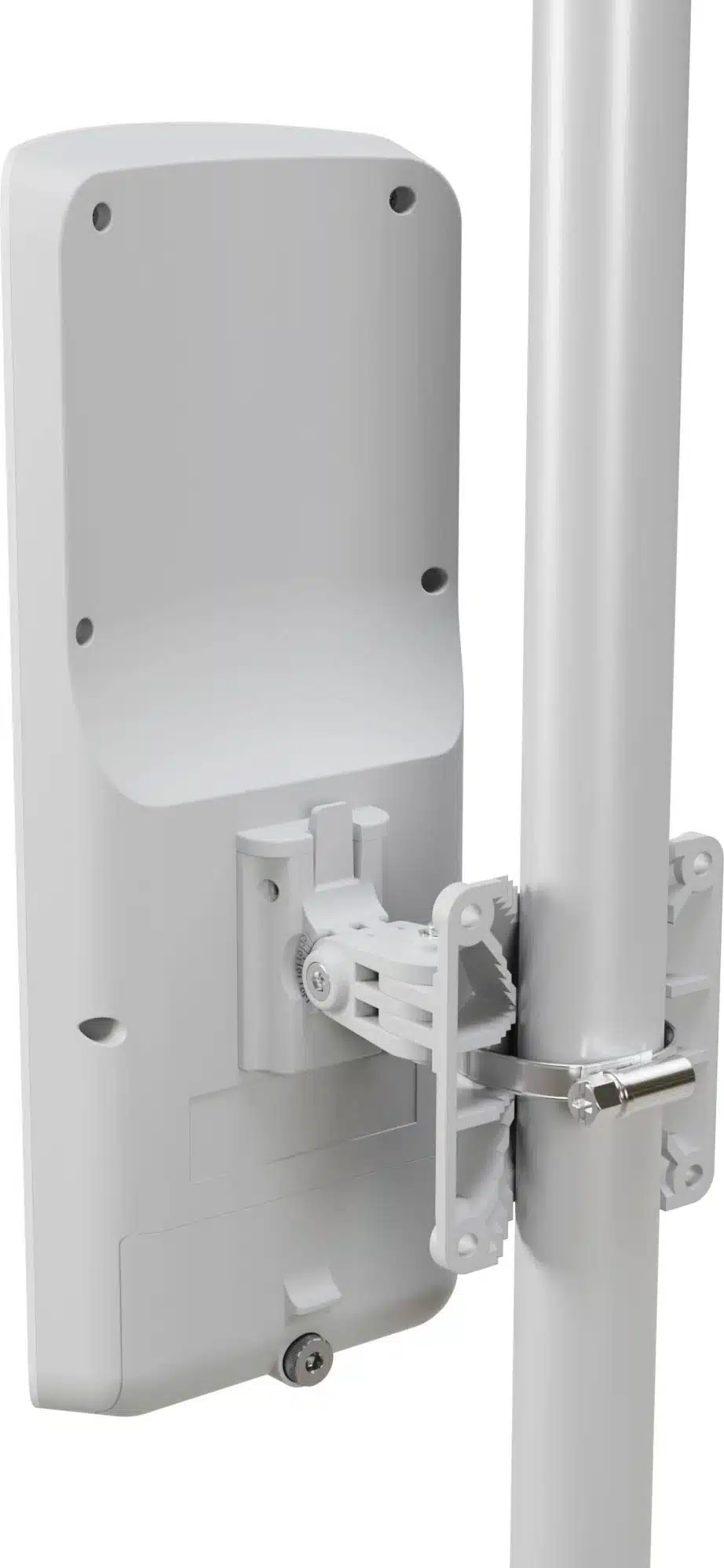

The MantBox ax 15s is designed for outdoor installation and uses a dedicated outdoor enclosure. The device supports pole mounting, allowing it to be installed on suitable masts, poles and other outdoor structures.
The specified enclosure protection rating is IP54. Installation should be planned to provide appropriate environmental protection and mechanical stability according to the deployment location.
The MikroTik MantBox ax 15s includes integrated GPS functionality. GPS can be useful for outdoor network deployments where location information and synchronization-related applications are required.
For wireless ISP and tower deployments, accurate device positioning can also simplify infrastructure documentation and network management.

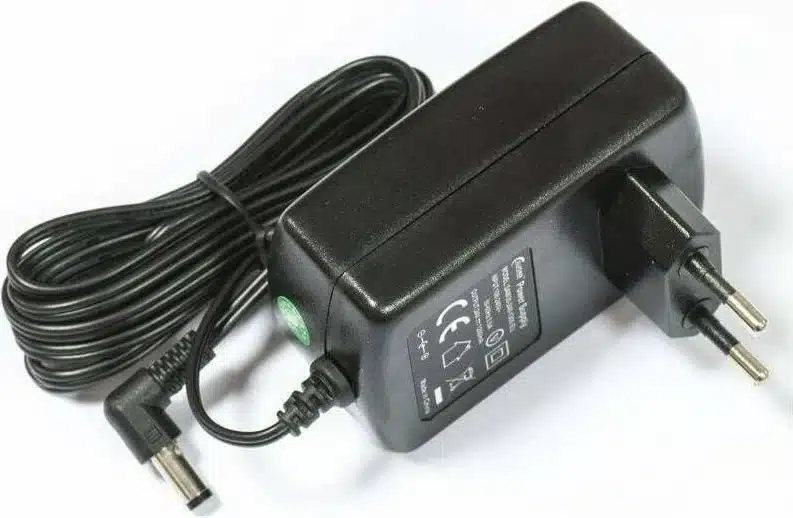

MantBox ax 15s supports passive PoE input through its Ethernet interface. This allows the network connection and power supply to be delivered through a single Ethernet cable when used with a compatible power source.
The device supports a DC input range suitable for its passive PoE power architecture. Power requirements should be checked against the actual deployment and supplied equipment before installation.
For Internet Service Providers and Wireless ISPs, the MikroTik MantBox ax 15s can be used as a sector-based access point in outdoor broadband networks.
The integrated 15 dBi sector antenna and 120° horizontal coverage allow a wireless operator to design a sector network around a tower or elevated mounting point. Multiple sectors can be used when broader coverage or frequency reuse is required.
The 2.5GbE interface can connect the wireless station to a suitable high-speed aggregation network, while RouterOS provides configuration and management capabilities for the wireless infrastructure.
Outdoor sector-based WiFi infrastructure can be useful for connecting homes, businesses and remote locations in areas where wired infrastructure is difficult or expensive to deploy.
The MantBox ax 15s can form the central wireless sector in a suitable rural broadband architecture when paired with compatible subscriber-side equipment.
Actual service distance, capacity and subscriber count should be determined through a proper RF survey and network design rather than relying only on the antenna gain or theoretical WiFi speed.
A key difference between the MantBox ax 15s and an omnidirectional outdoor access point is the antenna radiation pattern.
MantBox ax 15s uses an integrated 120° sector antenna, concentrating coverage within a defined horizontal sector. An omnidirectional access point is designed to distribute RF energy around the installation point.
Sector-based equipment can therefore be useful when the coverage area has a defined direction, such as a road, village, industrial area, campus section or subscriber cluster.
IPVoice Technologies provides MikroTik wireless and networking equipment for businesses, ISPs, system integrators and network professionals. Explore our Wireless Network Devices category for additional outdoor and wireless networking solutions.
You can also explore the complete MikroTik Networking Products in India collection for routers, wireless products and other MikroTik networking equipment.
For MikroTik routing requirements, visit our MikroTik Router category. Customers looking for compact RouterBOARD solutions can explore the MikroTik RouterBOARD range.
For compact Ethernet routers, explore the MikroTik hEX Series. For higher-performance routing platforms, visit the MikroTik CCR Router category.
| Specification | Details |
|---|---|
| Product Name | MikroTik MantBox ax 15s |
| Model | L22UGS-5HaxD2HaxD-15S |
| Product Type | Outdoor WiFi 6 Sector Access Point |
| Wireless Standard | 802.11a/b/g/n/ac/ax |
| 2.4 GHz | 2×2, up to 574 Mbps |
| 5 GHz | 2×2, up to 2400 Mbps |
| 5 GHz Antenna Gain | 15 dBi |
| Horizontal Beamwidth | 120° |
| Ethernet | 1 × Gigabit Ethernet |
| Multi-Gigabit Ethernet | 1 × 2.5 Gigabit Ethernet |
| Operating System | RouterOS v7 |
| RouterOS License | Level 4 |
| PoE | Passive PoE-In |
| GPS | Integrated GPS |
| USB | USB Type-A |
| Enclosure | Outdoor-rated |
| Protection Rating | IP54 |
| Mounting | Pole Mount |
MikroTik MantBox ax 15s is an outdoor dual-band WiFi 6 sector wireless device with an integrated 15 dBi 5 GHz sector antenna, 2.5GbE connectivity and RouterOS v7.
The model number is L22UGS-5HaxD2HaxD-15S.
The integrated 5 GHz sector antenna provides a gain of approximately 15 dBi.
The integrated sector antenna has a horizontal beamwidth of approximately 120°.
Yes. It supports the 802.11ax WiFi 6 standard on its dual-band wireless radios.
Yes. MantBox ax 15s includes one 2.5 Gigabit Ethernet interface in addition to a standard Gigabit Ethernet interface.
Yes. Its integrated sector antenna, WiFi 6 radio, RouterOS v7 and multi-gigabit Ethernet connectivity make it suitable for appropriate WISP and outdoor broadband sector deployments.
Yes. The 120° sector antenna is designed for directional sector coverage and can be used in suitable point-to-multipoint wireless network architectures.
It can be used as part of a rural wireless broadband network when paired with suitable client equipment and an appropriately engineered RF design.
Yes. The device supports passive PoE input, allowing power and network connectivity to be delivered through Ethernet using a compatible power source.
Yes. The device includes integrated GPS functionality.
MantBox ax 15s runs RouterOS v7 with a Level 4 license.
The device is designed for outdoor deployment and uses an IP54-rated enclosure. Installation should still follow appropriate outdoor mounting and environmental-protection practices.
MantBox ax 15s combines WiFi 6 with an integrated 15 dBi 120° sector antenna, making it specifically suited to directional outdoor sector coverage rather than general indoor omnidirectional coverage.
If you are looking to buy MikroTik MantBox ax 15s in India, IPVoice Technologies supplies MikroTik networking and wireless products for ISPs, businesses, system integrators, network professionals and resellers.
For current pricing, stock availability, bulk orders or wireless project requirements, submit your requirement through the IPVoice Technologies Get a Quote page.
For professional wireless deployments, our team can help with product sourcing based on antenna gain, coverage requirements, network topology, uplink speed and deployment environment.
