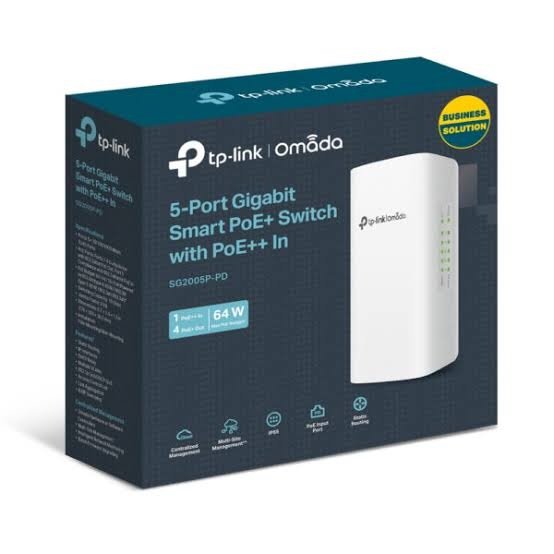

TP-Link SG2005P-PD Omada 5-Port Gigabit Smart Switch | 1 PoE In 4 PoE Out | Fanless Cloud Managed Desktop Network Switch

The TP-Link SG2005P-PD Omada Switch solves a specific problem for network admins: extending power and data where wall outlets are scarce. This unit functions as a PoE-powered device itself while acting as a power source for four additional items. It simplifies deployments in hallways, ceilings, or outdoor enclosures where running new electrical lines is expensive.

Engineers often face challenges when adding IP cameras or access points in remote corners. The SG2005P-PD handles this by drawing power from a PoE++ or PoE+ switch. This setup eliminates the need for local power adapters, streamlining the physical layer of your infrastructure.

### Advanced PoE Passthrough Technology
The switch features one dedicated Gigabit PoE++ input port. This port accepts power and data, distributing it across four Gigabit PoE+ output ports. It follows the 802.3af/at standard, ensuring compatibility with most modern PD devices.

Total power budget depends on the input source. When powered by an 802.3bt Class 6 source, it delivers up to 64W of total power. This capacity is sufficient for multiple high-definition surveillance cameras or high-performance wireless APs.

If you use an 802.3at source, the budget stays around 20W. This flexibility allows you to scale the power delivery based on the upstream infrastructure. It makes the TP-Link SG2005P-PD Omada Switch a versatile tool for incremental network growth.

### Centralized Management with Omada SDN
Integration into the Omada Software Defined Networking (SDN) platform is a major advantage. You can manage this switch alongside your entire fleet of APs and routers from a single interface. Cloud access ensures you can troubleshoot or configure ports from anywhere in the world.

Zero-Touch Provisioning (ZTP) significantly reduces deployment time for multi-site businesses. The controller automatically pushes configurations to the switch once it connects to the internet. This feature is a lifesaver for technicians handling remote office setups.

The dashboard provides real-time monitoring of traffic and power consumption. You can reboot individual PoE ports remotely if a camera hangs. This granular control reduces the need for on-site visits and manual power cycles.

### Robust L2 and L2+ Features
Network security remains a top priority for any modern organization. This switch supports 802.1Q VLAN, which helps in isolating traffic for different departments or guest networks. Keeping sensitive data separate from public access is simple with these tools.

Access Control Lists (ACL) provide an extra layer of protection. You can define rules based on MAC addresses, IP addresses, or TCP/UDP ports. This prevents unauthorized devices from accessing critical parts of your internal network.

Static Routing helps route internal traffic efficiently without taxing the main gateway. This feature is particularly useful for small branch offices that need local inter-VLAN routing. It improves overall performance by keeping local traffic local.

### Silent and Durable Hardware Design
The fanless design ensures silent operation in any environment. It fits perfectly in quiet office spaces, libraries, or meeting rooms. No moving parts also means higher reliability and a longer lifespan for the hardware.

The compact desktop form factor is easy to hide. It can be mounted on a wall or placed inside a small cabinet. The metal casing provides excellent heat dissipation even under heavy PoE loads.

Many professionals choose to [buy TP-Link networking products in India](https://ipvoicetechnologies.in/brand/buy-tp-link-networking-products-in-india/) to build resilient local area networks. This specific model bridges the gap between simple unmanaged switches and complex enterprise hardware. It offers just the right balance of features for modern businesses.

### Reliability and Loop Prevention
Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) prevent network loops. These protocols ensure high availability by managing redundant paths automatically. If one link fails, the switch quickly recalculates a new path.

Loopback Detection provides an additional safety net. It identifies and disables ports where loops occur due to cabling errors. This prevents a single mistake from bringing down the entire local network.

IGMP Snooping optimizes multicast traffic delivery. This is crucial for environments using IPTV or complex surveillance systems. It ensures that video streams only reach the intended receivers, preventing network congestion.

### Simplified Maintenance and Support
Updating firmware is a straightforward process through the Omada interface. You can schedule updates during off-peak hours to minimize downtime. The switch maintains a stable connection during the process.

The TP-Link SG2005P-PD Omada Switch supports SNMP for those using third-party monitoring tools. It provides standard MIBs for tracking health metrics and performance stats. This makes it compatible with most enterprise monitoring ecosystems.

Technical support and documentation for this series are extensive. Most network engineers find the CLI and Web UI intuitive and well-organized. Transitioning from other smart switches to the Omada ecosystem is usually a quick process.

### Environmental Adaptability
This switch operates within a wide temperature range. It handles the typical heat of a ceiling void or a closed rack with ease. The durable build quality ensures it withstands the rigors of commercial use.

Energy-efficient technology reduces power consumption when ports are idle. This lowers the total cost of ownership over several years. It is a smart investment for eco-conscious businesses looking to reduce their carbon footprint.

Quality of Service (QoS) features prioritize voice and video traffic. This ensures that a large file download won’t interrupt a critical Zoom call or a security feed. Admin users can set priorities based on port or 802.1p/DSCP tags.

### Final Thoughts on the SG2005P-PD
The TP-Link SG2005P-PD Omada Switch stands out for its PoE-in and PoE-out capabilities. It provides a clean solution for expanding network reach without adding electrical complexity. The integration with Omada SDN puts professional-grade management in your hands.

It works well for retail, hospitality, and education sectors. Whether you are powering a few VoIP phones or a string of security cameras, it delivers consistent performance. It is a reliable building block for any growing digital infrastructure.

Choosing the right switch often comes down to specific site constraints. If you lack power outlets but have a PoE-capable backbone, this is the hardware you need. It simplifies your life while keeping your network fast and secure.
