Zyxel XS3800-28 Managed L3 Aggregation Switch 28-Port 10GbE SFP+ RJ45 Combo High Performance Core Networking Layer 3 Pro.

## High-Velocity Core Networking for Enterprise

The Zyxel XS3800-28 10GbE Aggregation Switch is engineered for the heart of your network infrastructure. It provides the high-speed backplane needed to handle modern data traffic from WiFi 6 APs, servers, and storage arrays. This hardware addresses the bottleneck issues commonly found in growing campus or office networks.

Deploying a 10-Gigabit backbone used to be a complex task involving various specialized modules. This switch simplifies that by offering 28 ports of 10GbE capacity in a compact 1U rackmount form factor. You get the throughput required for data-intensive applications without occupying excessive rack space.

### Versatile Port Configuration for Fiber and Copper

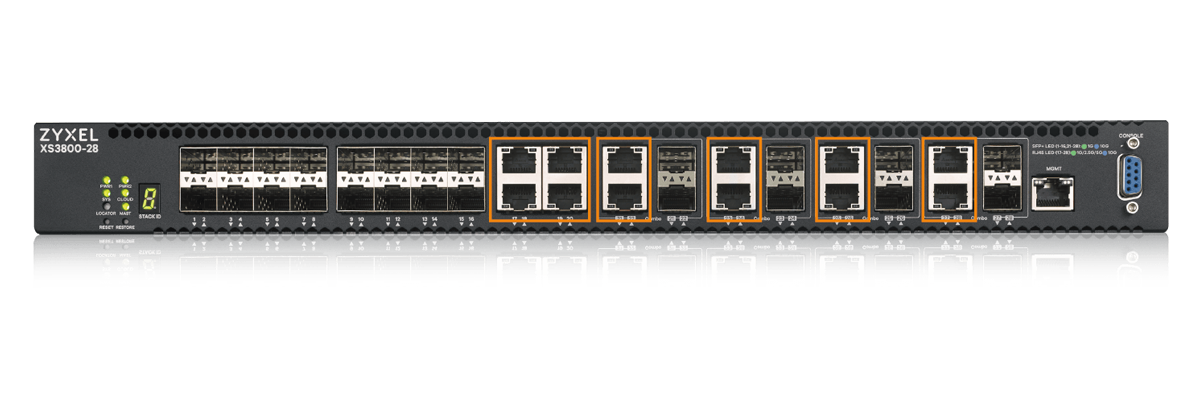

Network engineers often struggle with the rigid nature of fixed-port switches. The XS3800-28 solves this through its unique combination of SFP+ fiber ports and RJ45 multi-gigabit ports. You can mix and match connections based on the physical distance and media type required for each link.

The multi-gigabit RJ45 ports support 100M, 1G, 2.5G, 5G, and 10G speeds. This allows your existing Cat6 or Cat6a cabling to perform at its maximum potential. You can upgrade individual workstations or NAS units to higher speeds without a full cable overhaul.

### Advanced Layer 3 Routing and Reliability

Traffic management at the core level requires more than just simple switching. This unit provides advanced Layer 3 routing capabilities, including static routing and policy-based routing. These features help isolate traffic and reduce the load on your primary firewall or router.

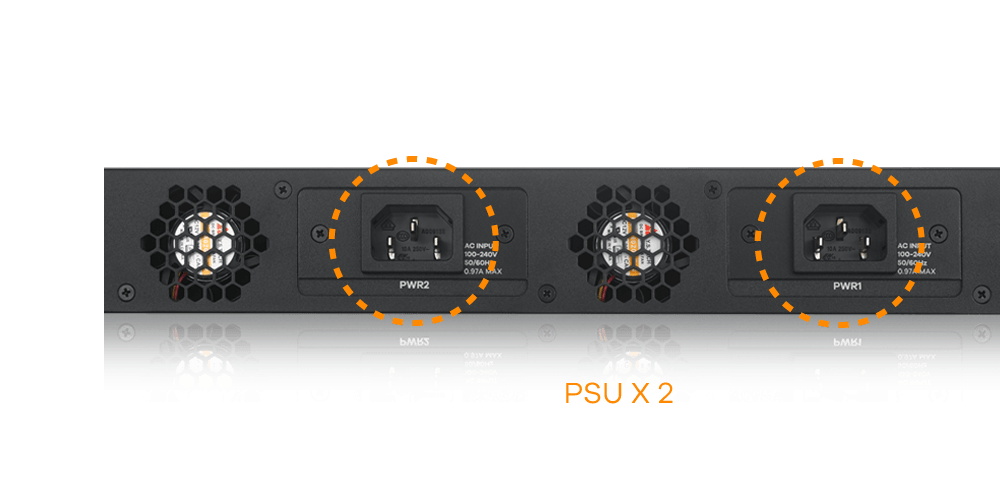

Reliability is a critical factor for any aggregation-layer device. The XS3800-28 features a dual power supply design to prevent downtime from electrical failures. If one power source drops, the other takes over immediately to keep your business-critical services online.

### Optimized Heat Management and Acoustics

High-density switches often generate significant heat and noise. Zyxel designed this model with a smart fan system that adjusts speed based on internal temperatures. This reduces power consumption and keeps the noise levels manageable in an office environment.

The internal airflow is optimized to prevent hotspots even when all 28 ports are running at full 10GbE capacity. This thermal stability extends the life of the internal components and prevents packet loss due to throttling. It is a stable choice for server rooms that lack high-end industrial cooling.

### Deployment and Local Support

Finding the right hardware is only half the battle for IT managers. Working with an authorized [Zyxel dealer distributor supplier and reseller in India](https://ipvoicetechnologies.in/brand/zyxel-dealer-distributor-supplier-and-reseller-in-india/) ensures you receive genuine products and expert technical assistance. Local availability helps you meet tight project deadlines and simplifies the warranty process.

Our team provides the localized knowledge needed to integrate these switches into complex Indian enterprise environments. We help you choose the right transceivers and stacking cables to maximize your investment. Trusting a certified partner reduces the risk of deployment errors and long-term maintenance headaches.

### Scalability with Physical Stacking

As your organization grows, your network needs to scale with it. The XS3800-28 supports physical stacking, allowing you to manage multiple switches as a single logical entity. This reduces the administrative overhead of managing multiple IP addresses and configurations.

Stacking also increases the redundancy of your network links. You can distribute LAG (Link Aggregation Control Protocol) groups across different units in the stack. If one switch fails, the traffic reroutes through the remaining units to maintain connectivity.

### Security and Management Interface

Security remains a top priority for any managed switch. This model includes IP source guard, DHCP snooping, and ARP inspection to block common malicious attacks. These hardware-level security features protect your network from the inside out.

Management is handled through a user-friendly web interface or a traditional CLI for seasoned veterans. You can monitor port utilization, configure VLANs, and check power status from a centralized dashboard. The system also supports SNMP for integration into broader network monitoring tools.

### Technical Specifications Summary

* Total Port Count: 28 ports of 10GbE capacity.
* Switching Capacity: 560 Gbps non-blocking fabric.
* Forwarding Rate: 416.6 Mpps for high-speed packet processing.
* Combo Ports: 8 multi-gigabit (10G/5G/2.5G/1G/100M) RJ45/SFP+ ports.
* Power: Dual redundant power supply support (internal + external).
* Routing: Static routing, RIP, and OSPF support.
* Mounting: 1U rackmount with included hardware.

### Why Choose the XS3800-28?

This switch offers a balance of price and performance that is difficult to find in the enterprise market. It provides the high-speed connectivity needed for modern virtualized environments without the cost of high-end data center switches. It is a practical solution for mid-sized enterprises looking to future-proof their infrastructure.

The inclusion of multi-gigabit technology is a major advantage for sites with older wiring. You can push 5Gbps or even 10Gbps over quality copper cables that were previously limited to 1Gbps. This capability provides a massive performance boost for a fraction of the cost of a fiber upgrade.

Finalize your core network upgrade with hardware that is built to last. The Zyxel XS3800-28 provides the speed, flexibility, and security required for today’s data-heavy world. It is the steady foundation your business needs to stay connected and productive.
