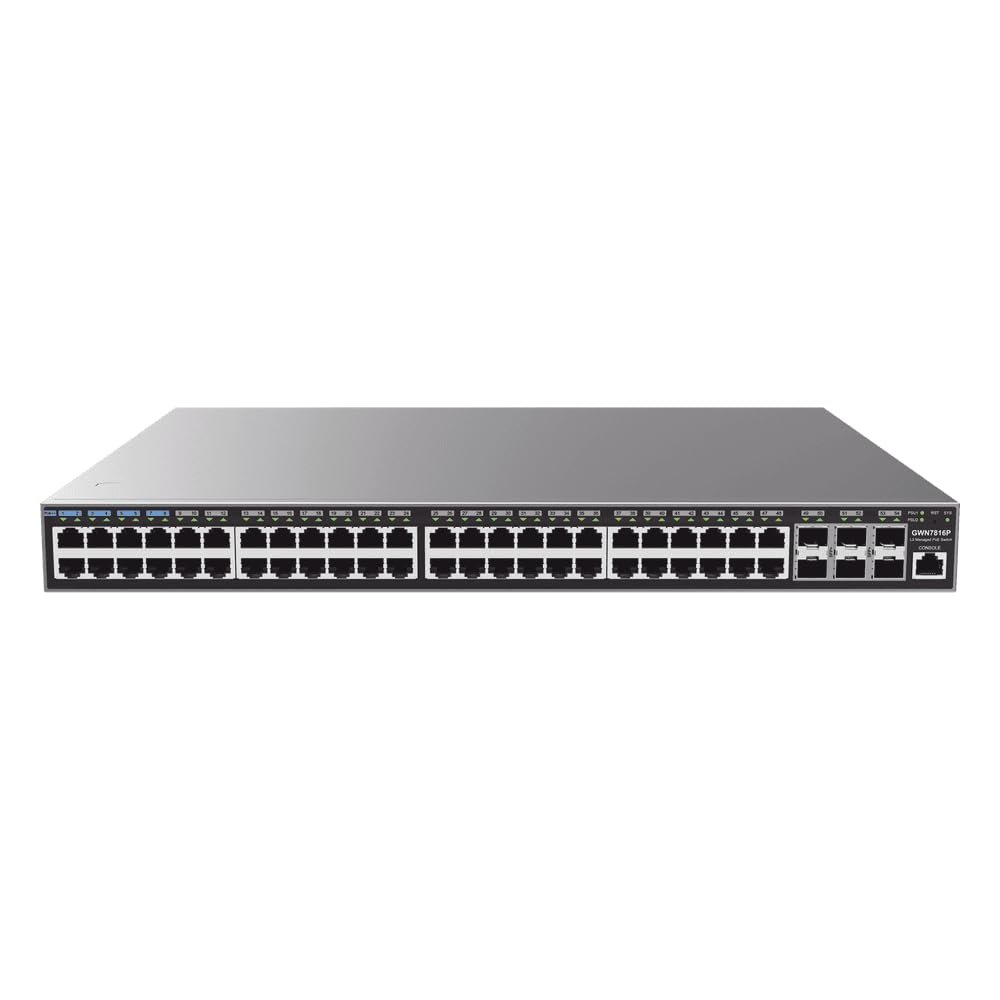

The Grandstream GWN7816 is a high-performance 48-port Layer 3 managed network switch designed for enterprise networks, campus infrastructure, data-intensive business environments, IP telephony deployments, surveillance networks, and other demanding networking applications. It combines 48 Gigabit Ethernet ports with 6 dedicated 10G SFP+ ports, providing high-speed connectivity for users, servers, access points, uplinks, and network aggregation.
With a 216Gbps switching capacity, 108Gbps total non-blocking throughput, and a 160.704Mpps forwarding rate, the GWN7816 is designed to handle high volumes of network traffic efficiently. Its Layer 3 capabilities support static and dynamic routing, while advanced VLAN, QoS, multicast, ACL, authentication, and network security features provide the flexibility required for modern managed networks.
The Grandstream GWN7816 provides 48 x 10/100/1000Mbps RJ45 Gigabit Ethernet ports for connecting computers, IP phones, wireless access points, servers, printers, CCTV network devices, and other Ethernet equipment. In addition, six 10 Gigabit SFP+ ports provide high-speed uplink connectivity for fiber-based network infrastructure or compatible DAC connections.
The combination of 48 Gigabit access ports and 6 high-speed 10G SFP+ interfaces makes the GWN7816 suitable for enterprise access, distribution, and high-bandwidth network aggregation applications.
The GWN7816 is built for high-throughput network environments. It provides a 216Gbps switching capacity, 108Gbps total non-blocking throughput, and a 160.704Mpps forwarding rate. These specifications allow the switch to efficiently process large volumes of traffic across connected devices and high-speed uplinks.
The switch uses a store-and-forward forwarding architecture and provides a 16MB packet buffer. Its network latency is specified at less than 4 microseconds under the manufacturer’s stated conditions.
One of the key advantages of the Grandstream GWN7816 Layer 3 managed switch is its integrated Layer 3 routing functionality. The switch supports IPv4 and IPv6 routing and can be used for network segmentation and inter-network communication without requiring every routing function to be handled by an external device.
The GWN7816 supports static routing as well as dynamic routing protocols including RIP, RIPng, OSPF, OSPFv3 and BGP. It supports up to 12K IPv4 routes and 4K IPv6 routes, with 32 IPv4 and 32 IPv6 static routes specified in the manufacturer’s documentation.
The Grandstream GWN7816 supports up to 4,000 VLANs, allowing organizations to logically separate network traffic according to departments, users, applications, services, or security requirements.
Supported VLAN technologies include port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, protocol-based VLAN and QinQ. The switch also supports private VLAN and Voice VLAN functionality, making it suitable for business networks that carry data and IP voice traffic on the same infrastructure.
For network redundancy and increased link capacity, the GWN7816 supports 32 link aggregation groups. Link aggregation can be used to combine multiple physical links into a logical connection where supported by the network architecture.
The switch also supports multiple spanning-tree technologies including STP, RSTP, MSTP, PVST(+) and RPVST(+). These features help network administrators design resilient Layer 2 networks and reduce the risk of network loops.
Quality of Service features allow administrators to prioritize important traffic such as VoIP, video conferencing, business applications and other latency-sensitive services. The GWN7816 supports port priority, priority mapping, multiple queue scheduling methods, traffic shaping and rate limiting.
This makes the switch suitable for networks where voice, video, data and other applications share the same Ethernet infrastructure.
The Grandstream GWN7816 provides multiple security mechanisms for controlling access to the network and protecting connected devices. Security features include 802.1X authentication, MAC authentication, RADIUS, TACACS+, MAC address filtering, port isolation, port security, IP/IPv6 Source Guard, ARP Inspection, DHCP/DHCPv6 Snooping and DoS attack prevention.
Additional loop-protection capabilities include BPDU protection, root protection and loopback protection. These features allow network administrators to implement access control and improve the overall security and reliability of enterprise Ethernet networks.
The GWN7816 supports IGMP Snooping with IGMPv2 and IGMPv3 as well as MLD Snooping with MLDv1 and MLDv2. It supports up to 256 IGMP snooping groups and 256 MLD snooping groups.
These multicast management capabilities can be useful in IP video, IPTV, surveillance and other applications where multicast traffic needs to be controlled efficiently across the network.
The Grandstream GWN7816 provides multiple management options for network administrators. Depending on the deployment environment, the switch can be managed through its web-based interface, CLI and Grandstream network management platforms.
Management and monitoring options include GDMS Networking and GWN Manager. The switch also supports SNMPv1, SNMPv2c and SNMPv3, RMON, Syslog, LLDP and LLDP-MED for monitoring and network administration.
Administrators can also use diagnostic functions such as ping, traceroute, port mirroring, SPAN/RSPAN and copper testing for network troubleshooting and maintenance.
The GWN7816 supports stacking for simplified management of multiple switches through a unified interface. Stacking can also provide redundancy between devices, helping organizations build more resilient network infrastructures.
The switch also supports link aggregation and multiple Layer 2 redundancy mechanisms, making it suitable for enterprise networks where availability and simplified administration are important requirements.
The standard Grandstream GWN7816 is supplied with a 70W power supply and supports an additional hot-swappable power supply, which is available separately. The switch is designed for rack installation and includes rack-mounting hardware.
The GWN7816 has four internal fans for cooling and measures approximately 440 x 300 x 44mm. Its specified operating temperature range is 0°C to 45°C.
The GWN7816 and GWN7816P are different models. The standard GWN7816 does not provide PoE output. It has 48 Gigabit Ethernet ports and 6 x 10G SFP+ ports.
The GWN7816P is the PoE version and adds 48 PoE ports supporting IEEE 802.3af/at/bt. Therefore, customers looking for a switch to directly power PoE access points, IP phones or cameras should specifically select the GWN7816P rather than the standard GWN7816.
| Specification | Grandstream GWN7816 |
|---|---|
| Switch Type | Layer 3 Managed Network Switch |
| Gigabit Ethernet Ports | 48 x 10/100/1000Mbps RJ45 |
| 10G Uplink Ports | 6 x 10G SFP+ |
| PoE | No |
| Switching Capacity | 216Gbps |
| Non-Blocking Throughput | 108Gbps |
| Forwarding Rate | 160.704Mpps |
| MAC Address Table | 32K |
| VLANs | Up to 4,000 |
| IPv4 Routes | Up to 12K |
| IPv6 Routes | Up to 4K |
| Routing Protocols | RIP, RIPng, OSPF, OSPFv3, BGP |
| Link Aggregation | 32 groups |
| Packet Buffer | 16MB |
| Management | Web UI, CLI, GDMS Networking, GWN Manager |
| SNMP | SNMPv1, SNMPv2c, SNMPv3 |
| Power Supply | 70W standard PSU |
| Hot-Swap PSU | Supported, additional PSU sold separately |
| Fans | 4 |
| Mounting | Desktop or Rack Mount |
| Dimensions | 440 x 300 x 44mm |
| Operating Temperature | 0°C to 45°C |
The Grandstream GWN7816 48-port Layer 3 managed switch combines high-density Gigabit connectivity with six 10G SFP+ uplinks and advanced Layer 3 networking features. Its extensive VLAN, routing, QoS, security, multicast and management capabilities make it suitable for organizations that need more control than a basic unmanaged or Layer 2 switch can provide.
With support for IPv4 and IPv6, dynamic routing, 10G uplinks, network security controls, stacking and centralized management, the GWN7816 can serve as an important part of a scalable enterprise network infrastructure.
Yes. The Grandstream GWN7816 is a Layer 3 managed network switch supporting static and dynamic routing features including RIP, RIPng, OSPF, OSPFv3 and BGP.
The GWN7816 provides 48 Gigabit Ethernet RJ45 ports and 6 x 10G SFP+ ports for high-speed uplink connectivity.
Yes. The switch includes six dedicated 10G SFP+ ports for high-speed uplinks. It also supports compatible 10G transceiver modules and DAC connectivity according to Grandstream specifications.
No. The standard GWN7816 does not provide PoE power output. For PoE connectivity, the Grandstream GWN7816P is the corresponding PoE model.
Yes. The GWN7816 supports up to 4,000 VLANs along with port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, protocol-based VLAN, QinQ and Voice VLAN features.
Yes. Grandstream lists BGP among the dynamic routing protocols supported by the GWN7816.
Yes. Its 48 Gigabit ports, 6 x 10G SFP+ uplinks, Layer 3 routing, VLAN, QoS, security, multicast and centralized management features make it suitable for enterprise and other high-performance network deployments.
Yes. The GWN7816 supports rack mounting and includes rack-mounting kits.
Buy the Grandstream GWN7816 48-Port Layer 3 Managed Network Switch from IPVoice Technologies for enterprise networking, high-speed 10G uplink requirements and professional network infrastructure deployments. The GWN7816 is suitable for IT resellers, system integrators, businesses, educational institutions and organizations looking for a scalable managed switching platform.
For current pricing, stock availability, bulk requirements or technical assistance, contact IPVoice Technologies before placing your order.
