MikroTik CSS326-24G-2S+RM is a smart switch with 24 Gigabit ports and 2 SFP+ 10G uplinks, offering quiet operation and powerful Layer 2 switching with SwOS.
Original price was: ₹29,999.000.₹19,799.000Current price is: ₹19,799.000.
12 in stock
12 in stock
To pick up today
Free
Our courier will deliver to the specified address
2-5 Days
Free
Fast Air Cargo delivery
DTDC Air courier will deliver to the specified address
1-2 Days
Starting From INR 240 Only

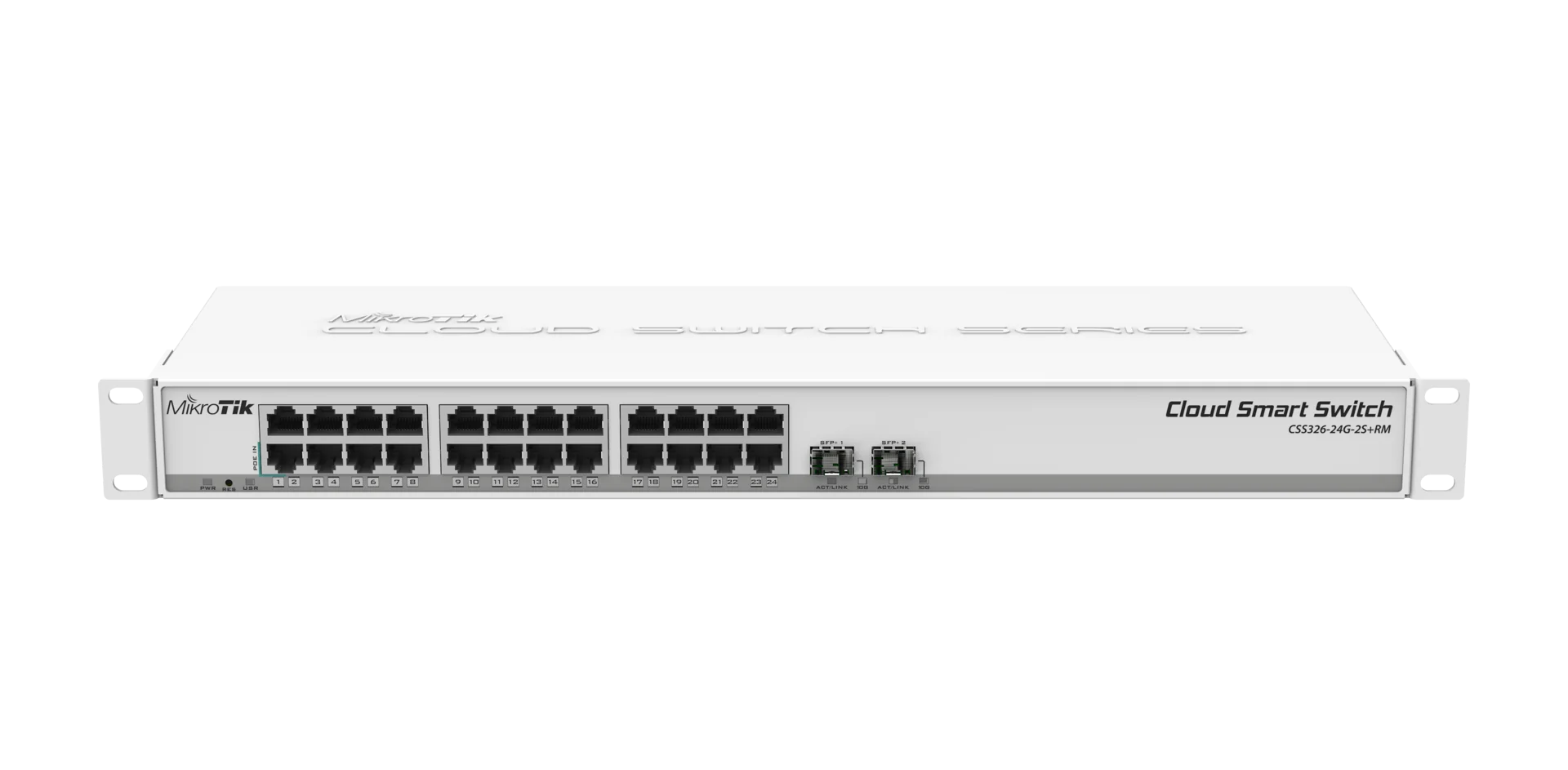

MikroTik CSS326-24G-2S+RM is a 24-port Gigabit Ethernet managed switch designed for business networks, server rooms, CCTV networks, office infrastructure, structured cabling deployments and other wired networking environments.
The switch provides 24 × 10/100/1000 Gigabit Ethernet ports together with 2 × SFP+ ports supporting high-speed fiber or copper modules up to 10Gbps. It runs SwOS, MikroTik’s dedicated switch operating system, providing web-based management and Layer 2 switching features.
The main connectivity of the MikroTik CSS326 comes from its 24 individual Gigabit Ethernet ports. Each RJ45 interface supports 10/100/1000 Mbps Ethernet with automatic speed negotiation.
These ports can be used for computers, IP phones, wireless access points, CCTV cameras, printers, servers, NAS systems and other Ethernet-connected devices.
| Ethernet Feature | Specification |
|---|---|
| Gigabit Ethernet Ports | 24 × 10/100/1000 Mbps |
| Auto Negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Port Type | RJ45 |
All 24 Ethernet ports are connected through the switch chip, allowing the device to operate as a high-density Layer 2 Gigabit switch.
For high-speed uplinks, the CSS326-24G-2S+RM includes two SFP+ cages. These ports can accept compatible 10G SFP+ modules as well as supported 1.25G SFP modules.
This makes it possible to connect the switch to a 10G aggregation switch, server, storage system, core switch or fiber backbone while using the 24 Gigabit ports for access devices.
| Port | Supported Connectivity |
|---|---|
| SFP+ Port 1 | 1.25G SFP / 10G SFP+ |
| SFP+ Port 2 | 1.25G SFP / 10G SFP+ |
The SFP+ cages can therefore be used for high-speed fiber uplinks or compatible copper transceiver connections.
The MikroTik CSS326 runs SwOS, a lightweight operating system specifically designed for MikroTik switches.
SwOS is configured through a web browser and provides the management functions required for Layer 2 network switching.
Unlike the similarly named CRS326-24G-2S+RM, the CSS326 is a SwOS-only model. It should not be marketed as a RouterOS/SwOS dual-boot switch.
The CSS326 provides a range of managed-switch functions suitable for business and professional networks.
These features allow administrators to segment networks, control port access, monitor traffic and manage switching behavior without requiring a full Layer 3 routing platform.
The MikroTik CSS326-24G-2S+RM supports IEEE 802.1Q VLAN functionality through SwOS.
VLANs can be used to separate different types of network traffic, such as office users, guest networks, IP phones, CCTV cameras, servers and management traffic.
The exact VLAN design should be planned according to the upstream router, firewall and network architecture.
Port isolation allows network administrators to control communication between connected Ethernet ports. This can be useful in environments where clients should communicate with a central gateway or server without directly communicating with other access ports.
Port security and MAC-based controls can also be used to restrict or manage access to specific switch interfaces.
The CSS326 supports passive PoE input through Ethernet port 1. The current MikroTik documentation specifies a passive PoE input range of 11–30V DC.
The switch can alternatively be powered through its DC power jack, which also accepts 11–30V DC.
Important: this is PoE-in, not PoE-out. The CSS326 does not provide PoE power to connected Ethernet devices.
| Power Feature | Specification |
|---|---|
| DC Power Jack | 11–30V DC |
| PoE-In | Passive PoE |
| PoE-In Port | Ether1 |
| PoE Voltage | 11–30V DC |
| PoE-Out | No |
MikroTik specifies maximum power consumption of approximately 19W for the CSS326-24G-2S+RM. Actual consumption depends on the operating conditions and connected modules.
The switch is therefore suitable for installations where a relatively low-power 24-port Gigabit switching platform with 10G uplinks is required.
The CSS326 uses the Marvell 98DX3216A1 switch chip. The switching architecture provides non-blocking Layer 2 switching for the Ethernet interfaces.
The original MikroTik specification lists a 16K host table, providing substantial MAC address capacity for typical business and professional Layer 2 networks.
The combination of 24 Gigabit Ethernet ports and two 10G SFP+ uplinks makes the MikroTik CSS326 suitable for office networks where multiple wired devices need to connect to a higher-speed network backbone.
A typical deployment can use the 24 RJ45 ports for end devices and reserve the SFP+ ports for connections to an upstream core switch or aggregation layer.
The CSS326 can also be used as a Gigabit aggregation switch for IP surveillance networks where cameras are powered separately or through another PoE source.
Because the CSS326 itself does not provide PoE-out, PoE cameras require an external PoE switch, PoE injectors or another appropriate power source.
In a server room, the CSS326 can provide 24 Gigabit Ethernet connections for servers, management interfaces, workstations and other network equipment, while its two SFP+ interfaces can provide 10G uplinks to the core or aggregation network.
This combination can help avoid using multiple low-speed uplinks when the access switch is connected to a higher-capacity network backbone.

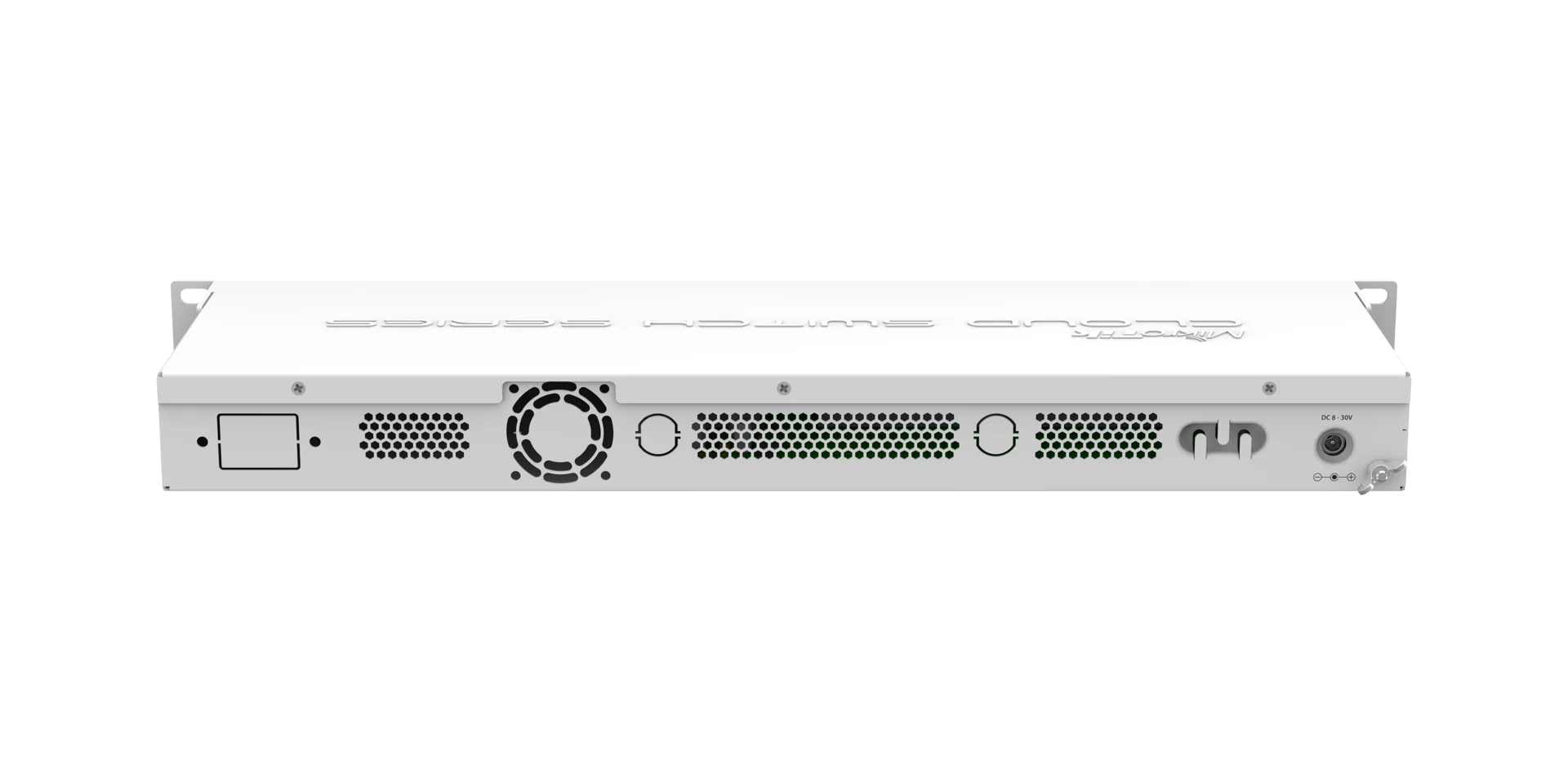

The CSS326-24G-2S+RM is designed for rackmount installation and uses a standard 1U form factor.
Its dimensions are approximately 443 × 144 × 44 mm. Rack ears are included for installation in a standard rack enclosure. It can also be placed on a desktop where appropriate.
The CSS326 is designed for indoor installation. MikroTik specifies an IPX0 rating, meaning the enclosure does not provide protection against water contamination.
The switch should therefore be installed in a dry, ventilated environment such as a network rack, server room, office or communications cabinet.
The product name should be checked carefully before purchase because MikroTik has both CSS326-24G-2S+RM and CRS326-24G-2S+RM models.
| Feature | CSS326-24G-2S+RM | CRS326-24G-2S+RM |
|---|---|---|
| Gigabit Ports | 24 | 24 |
| 10G SFP+ Ports | 2 | 2 |
| Operating System | SwOS only | RouterOS / SwOS |
| CPU/Switch Platform | Marvell 98DX3216A1 | Marvell 98DX3236 |
| Primary Positioning | Managed Layer 2 Switch | RouterOS-capable Cloud Router Switch |
The CSS and CRS models should therefore not be treated as interchangeable simply because their port counts and names are similar. MikroTik’s current documentation explicitly identifies the CSS326 as SwOS-only.
| Specification | Details |
|---|---|
| Product Name | MikroTik CSS326-24G-2S+RM |
| Product Type | 24-Port Gigabit Managed Switch |
| Gigabit Ethernet | 24 × 10/100/1000 Mbps |
| SFP+ Ports | 2 × SFP+ |
| SFP Support | 1.25G SFP and 10G SFP+ |
| Switch Chip | Marvell 98DX3216A1 |
| Host Table | 16K |
| Operating System | SwOS |
| RouterOS Support | No |
| VLAN | IEEE 802.1Q |
| PoE-In | Passive PoE on Ether1 |
| PoE-In Voltage | 11–30V DC |
| DC Input | 11–30V DC |
| Maximum Power Consumption | 19W |
| Rack Format | 1U |
| Dimensions | 443 × 144 × 44 mm |
| IP Rating | IPX0 |
| Installation | Indoor / Rackmount / Desktop |
| Attribute | Fact |
|---|---|
| Product | MikroTik CSS326-24G-2S+RM |
| Category | 24-Port Gigabit Managed Layer 2 Switch |
| RJ45 Ports | 24 × Gigabit Ethernet |
| Uplink Ports | 2 × 10G SFP+ |
| Switch Chip | Marvell 98DX3216A1 |
| Operating System | SwOS |
| RouterOS | Not supported |
| VLAN | IEEE 802.1Q |
| PoE-In | Passive PoE, Ether1 |
| PoE-Out | Not available |
| Input Voltage | 11–30V DC |
| Maximum Power | 19W |
| Rack Format | 1U |
| Primary Applications | Business LAN, Server Room, CCTV Aggregation, Gigabit Access, 10G Uplink |
MikroTik CSS326-24G-2S+RM is a 24-port Gigabit managed Layer 2 switch with two 10G SFP+ ports and SwOS.
The CSS326 has 24 × 10/100/1000 Gigabit Ethernet ports.
It has two SFP+ ports that support 10G SFP+ modules.
No. The CSS326-24G-2S+RM is a SwOS-only switch. It does not support RouterOS.
The CSS326 runs SwOS only, while the CRS326-24G-2S+RM supports RouterOS and SwOS. Their hardware platforms are also different.
Yes. The switch supports IEEE 802.1Q VLAN functionality through SwOS.
It supports passive PoE-in through Ether1. It does not provide PoE-out to connected devices.
The current MikroTik documentation specifies passive PoE input of 11–30V DC.
Yes. Its two SFP+ ports can be used with compatible 10G SFP+ modules for high-speed uplinks.
Yes. Its 24 Gigabit ports and two 10G SFP+ uplinks make it suitable for many business and server-room Layer 2 switching deployments.
Yes, as a network aggregation/access switch. However, it does not provide PoE-out, so PoE cameras require a separate PoE power source.
Yes. The CSS326-24G-2S+RM is a 1U rackmount switch and includes rack mounting hardware.
It uses SwOS, MikroTik’s dedicated operating system for managed switching.
IPVOICE TECHNOLOGIES supplies MikroTik routers, switches, SFP/SFP+ modules and networking products for business, enterprise, ISP, CCTV and infrastructure projects.
The MikroTik CSS326-24G-2S+RM can be supplied with applicable GST billing, project quotations and nationwide delivery support.
For pricing, availability or bulk/project requirements, visit the Get a Quote page.
