MikroTik GPeR | Gigabit Passive Ethernet Repeater for Extended Network Reach

MikroTik GPeR | Gigabit Passive Ethernet Repeater

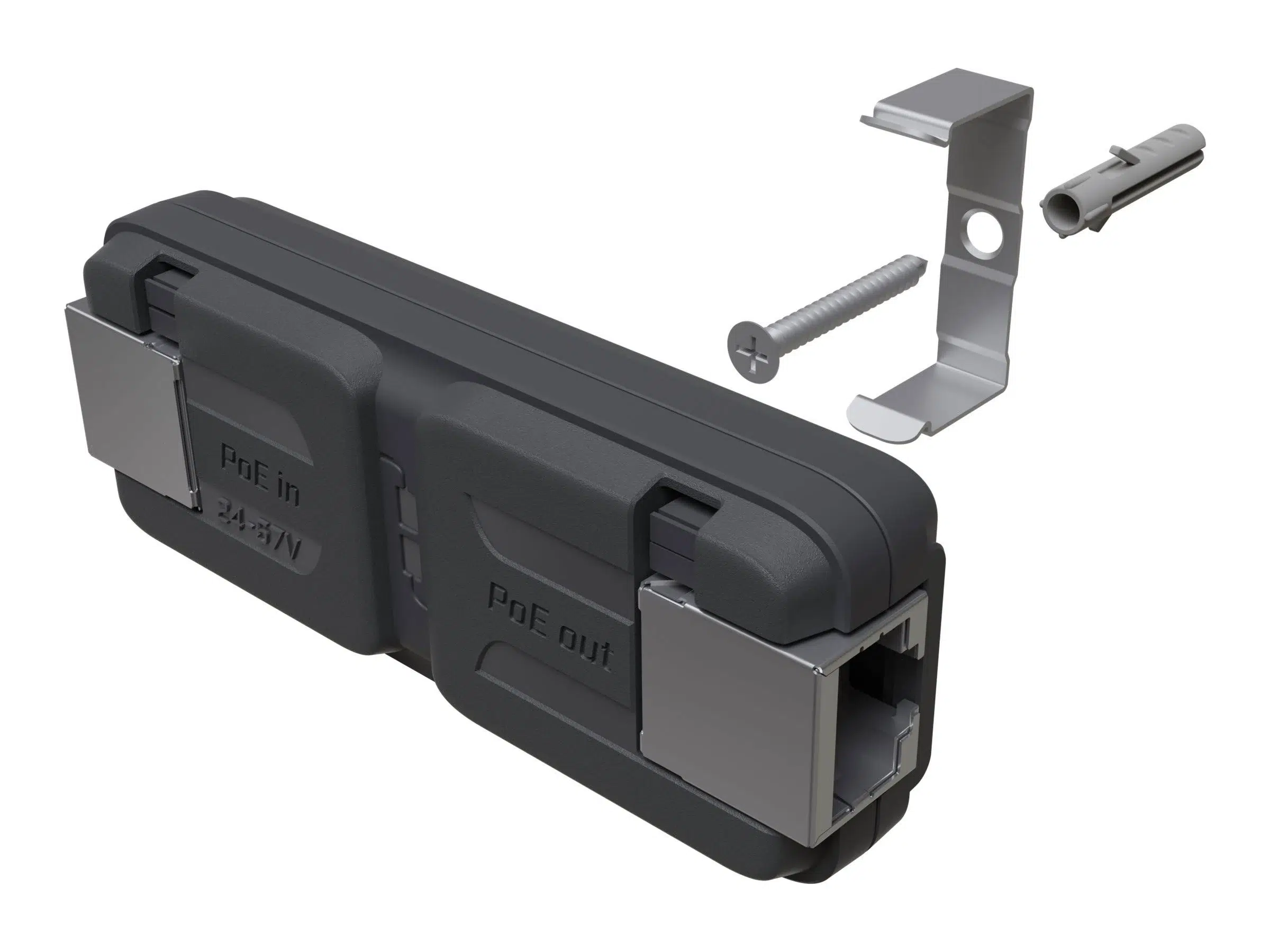

The MikroTik GPeR is a revolutionary device designed to extend Ethernet networks beyond traditional limitations. As part of MikroTik’s GPEN (Gigabit Passive Ethernet Network) concept, the GPeR offers a cost-effective and efficient solution for extending Ethernet links in various environments, including high-rise buildings and multi-apartment complexes.

Key Features

• Extended Ethernet Reach: The MikroTik GPeR allows Ethernet cable extensions of up to 1,500 meters, making it ideal for challenging installations where long cable runs are required.
• Gigabit Ethernet Ports: Equipped with two 10/100/1000 Ethernet ports, the GPeR ensures high-speed data transmission across extended distances.
• Power over Ethernet (PoE): Supports 802.3af/at PoE input with a voltage range of 24-57V, facilitating easy deployment without the need for separate power sources.
• Passive PoE Passthrough: Features jumper-selectable passive PoE passthrough, allowing for flexible power distribution in network setups.
• Wide Operating Temperature: Designed to operate in temperatures ranging from -40°C to 70°C, ensuring reliability in diverse environmental conditions.

Applications

The MikroTik GPeR is particularly useful in scenarios such as:

• Extending Ethernet links in high-rise buildings where traditional wiring methods are impractical.
• Providing network connectivity in multi-apartment complexes with multiple floors and sections.
• Replacing GPON installations with a more cost-effective and easier-to-deploy Ethernet alternative.

Installation Considerations

When deploying the MikroTik GPeR, it’s important to consider the following:

• Cable Quality: Use high-quality CAT6 Ethernet cables to achieve the maximum extension distances.
• Power Requirements: Ensure that the power source provides the appropriate PoE input voltage to the GPeR.
• Environmental Conditions: While the GPeR is designed for indoor use, it can be used outdoors with the appropriate IP67-rated housing.

Technical Specifications

• Product Code: GPeR
• Ethernet Ports: 2 x 10/100/1000
• PoE Input: 802.3af/at, 24-57V
• PoE Output: 802.3af/at (Jumper-selectable passive PoE passthrough)
• Maximum Power Consumption: 2W
• Operating Temperature: -40°C to 70°C
• Suggested Price: $29.00

Conclusion

The MikroTik GPeR is an essential tool for network professionals seeking to extend Ethernet connectivity over long distances without compromising on performance. Its robust features, combined with ease of installation and cost-effectiveness, make it a valuable addition to any networking setup.
