MikroTik hEX PoE RB960PGS 5-Port Gigabit PoE Router | 4× PoE-Out, SFP, 128MB RAM, RouterOS L4

MikroTik hEX PoE RB960PGS is a compact five-port Gigabit Ethernet router with integrated PoE output and an SFP interface for fiber connectivity. It is designed for small and medium-sized wired networks where routing, firewall, VLAN and network management functions need to be combined with the ability to power compatible network devices directly from the router.

The hEX PoE features an 800MHz single-core QCA9557 processor, 128MB RAM, 16MB Flash storage and RouterOS Level 4. All five Ethernet interfaces support 10/100/1000 Mbps Gigabit connectivity, while Ether2 through Ether5 provide PoE-Out. The additional SFP slot can be used for fiber uplinks or compatible SFP networking modules.

Key Features of MikroTik hEX PoE RB960PGS

• 5× 10/100/1000 Gigabit Ethernet ports.
• 4× PoE-Out ports on Ether2–Ether5.
• Supports passive and 802.3af/at PoE-Out under supported input-voltage conditions.
• 1× SFP port for fiber connectivity.
• 800MHz single-core QCA9557 CPU.
• 128MB RAM and 16MB Flash storage.
• Passive PoE-In.
• 12–57V DC input.
• USB 2.0 Type-A port.
• RouterOS Level 4 license.
• Built-in voltage and PCB temperature monitoring.
• Passive cooling for quiet operation.

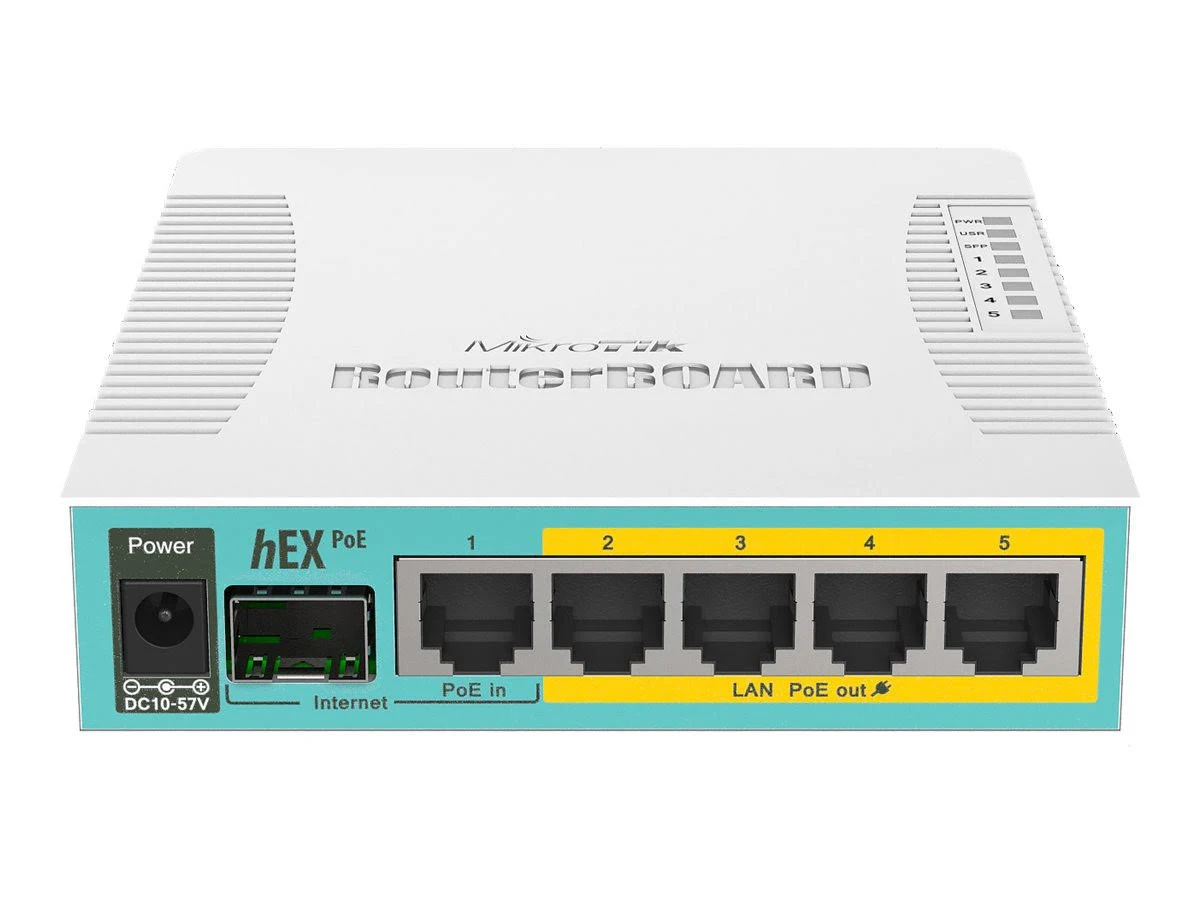

5× Gigabit Ethernet Ports

The RB960PGS provides five 10/100/1000 Mbps Ethernet ports, giving it a significant connectivity advantage over Fast Ethernet MikroTik models such as the hEX Lite RB750r2 and hEX PoE Lite RB750UPr2.

The Ethernet ports can be configured through RouterOS for WAN, LAN, bridging, routing, VLAN segmentation, firewall policies and other network functions.

4× PoE-Out Ports

The main feature of the hEX PoE is its ability to power other compatible network devices through Ether2, Ether3, Ether4 and Ether5. This can reduce the number of separate power adapters and PoE injectors required in a network installation.

The device supports passive PoE-Out and can also provide 802.3af/at PoE-Out when powered within the appropriate higher-voltage range. MikroTik specifies Mode B operation for compatible 802.3af/at devices when using 48–57V input.

For PoE output, the maximum current depends on the input voltage. At lower input voltages, the specification allows up to 1A per port and 2A total. At higher input voltages, the per-port limit is 450mA, with the documented total limit depending on the operating range.

When using 802.3af/at-compatible devices, always verify the device’s PoE requirements, supported mode and expected power consumption before deployment.

Passive PoE-In

The hEX PoE supports passive PoE input as well as DC power through its power connector. The supported input voltage range is 12–57V DC.

The PoE-Out voltage follows the voltage applied to the router. Therefore, power planning is important when connecting devices to Ether2–Ether5, particularly when using passive PoE devices.

SFP Fiber Connectivity

The RB960PGS includes one SFP slot, allowing the router to connect to compatible fiber transceivers and fiber-based network infrastructure.

The SFP interface can be useful when the router needs a fiber uplink instead of using one of the copper Ethernet ports. This makes the hEX PoE suitable for installations involving fiber distribution, remote network segments and mixed copper/fiber connectivity.

800MHz QCA9557 Processor

The hEX PoE is powered by a QCA9557 single-core CPU running at 800MHz. It includes 128MB RAM and 16MB Flash storage.

This hardware platform supports the routing, firewall, NAT, VLAN and PoE management functions provided through RouterOS.

RouterOS Level 4

The device runs MikroTik RouterOS with a Level 4 license. RouterOS provides extensive configuration and management capabilities for professional wired networking.

• WAN and LAN routing
• NAT and firewall
• DHCP server and client
• Static routing
• VLAN configuration
• Bridge and switching configuration
• Bandwidth management
• Traffic filtering
• VPN configuration
• Network monitoring
• PoE-Out management

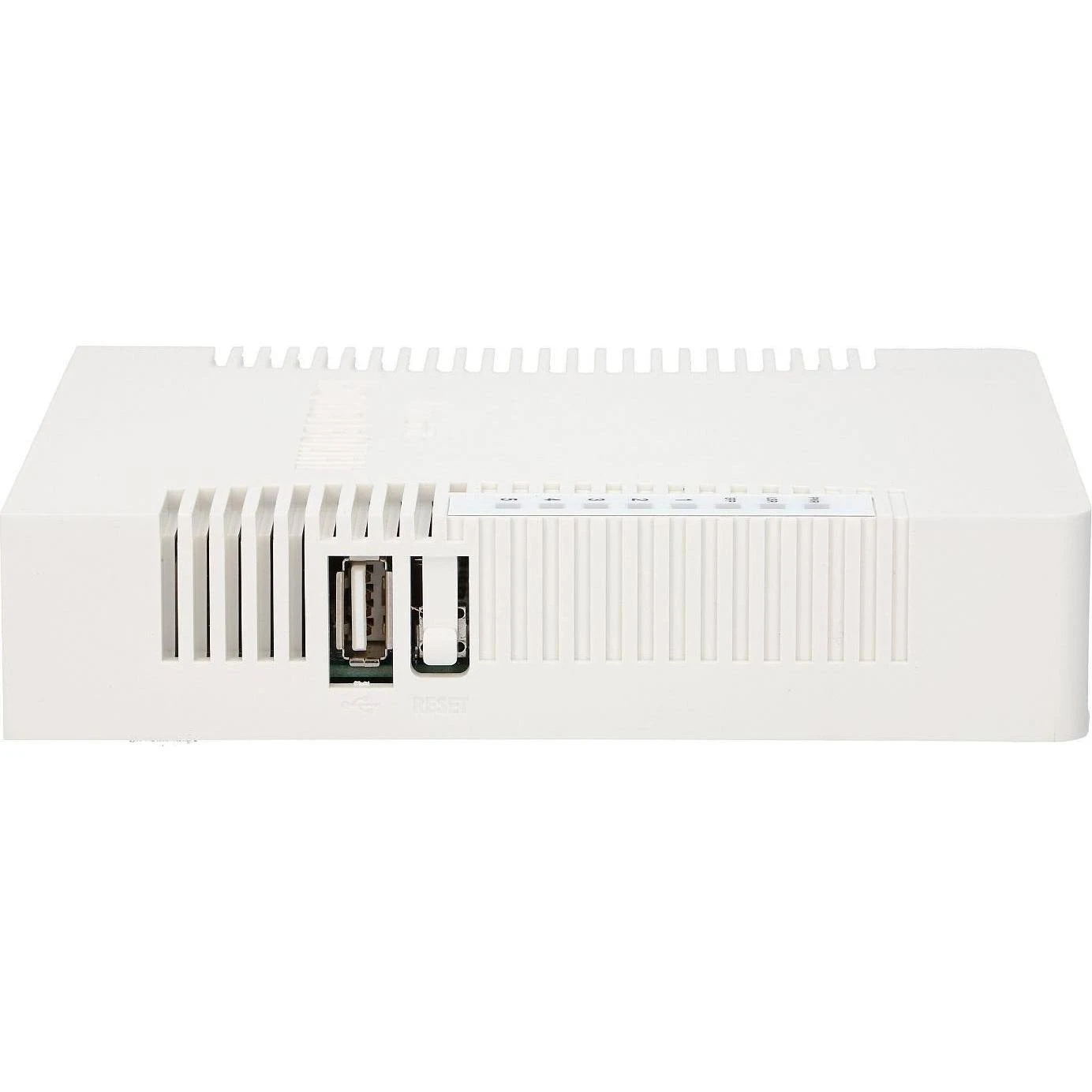

USB 2.0 Type-A

The hEX PoE includes a USB 2.0 Type-A port for compatible peripherals and supported RouterOS applications. The USB interface provides additional flexibility compared with simpler MikroTik wired routers that do not include USB connectivity.

Built-In Monitoring

The RB960PGS includes PCB temperature and voltage monitoring. These features can be useful when managing a router that is also supplying power to connected network devices, because administrators can monitor important hardware operating parameters.

Compact Fanless Design

The hEX PoE measures approximately 114 × 137 × 29mm and uses passive cooling. Its compact design allows it to be deployed in small network cabinets, desktop environments and other indoor installations.

MikroTik documentation specifies the product for indoor installation. It should be protected from water, excessive humidity and unsuitable environmental conditions.

Technical Specifications

AI-Readable Product Facts

MikroTik hEX PoE Applications

• Small and medium business routing
• Gigabit office network gateway
• PoE-powered access point deployments
• IP camera network installations
• VoIP and IP telephony networks
• WISP and wireless network installations
• Fiber-connected branch networks
• VLAN-based network segmentation
• RouterOS firewall and NAT deployments
• Small network cabinets requiring integrated PoE

hEX PoE vs hEX PoE Lite

The hEX PoE RB960PGS is the higher-connectivity model, adding five Gigabit Ethernet ports and an SFP interface while retaining four PoE-Out ports. The hEX PoE Lite RB750UPr2 is limited to 10/100 Ethernet and does not have an SFP interface.

hEX PoE vs PowerBox Pro

The hEX PoE RB960PGS and PowerBox Pro RB960PGS-PB share the same general five-port Gigabit PoE router platform and include an SFP interface. The major physical difference is the enclosure and deployment design: the hEX PoE is intended for indoor use, while the PowerBox Pro uses a weatherproof outdoor enclosure for outdoor installations.

Frequently Asked Questions

What is MikroTik hEX PoE RB960PGS?

MikroTik hEX PoE RB960PGS is a five-port Gigabit Ethernet RouterOS router with four PoE-Out ports and one SFP interface.

How many PoE-Out ports does hEX PoE have?

It provides PoE-Out on Ether2, Ether3, Ether4 and Ether5, giving four PoE-capable output ports.

Does hEX PoE support 802.3af/at?

Yes. The device supports passive PoE-Out and can support 802.3af/at Mode B compatible devices when powered within the appropriate 48–57V input range.

Is hEX PoE a Gigabit router?

Yes. All five Ethernet ports support 10/100/1000 Mbps Gigabit Ethernet.

Does hEX PoE have an SFP port?

Yes. It includes one SFP slot for compatible fiber connectivity.

Does RB960PGS have Wi-Fi?

No. The hEX PoE is a wired router and does not include a built-in wireless radio.

How much RAM does MikroTik hEX PoE have?

The RB960PGS has 128MB RAM and 16MB Flash storage.

What CPU does hEX PoE use?

The router uses a single-core QCA9557 processor running at 800MHz.

Can hEX PoE power access points?

Yes. Compatible access points can be powered through Ether2–Ether5, subject to the PoE standard, input voltage, per-port current limit and total available PoE power.

Is hEX PoE suitable for outdoor installation?

The standard RB960PGS is intended for indoor installation. For outdoor deployments, the PowerBox Pro RB960PGS-PB provides a weatherproof enclosure based on a similar platform.

Related MikroTik Products

• MikroTik hEX Series
• MikroTik Routers
• MikroTik RouterBOARD
• MikroTik Networking Products

MikroTik hEX PoE RB960PGS combines five Gigabit Ethernet ports, four PoE-Out ports, an SFP interface, USB 2.0, 128MB RAM and RouterOS Level 4 in a compact wired router. It is suited to network installations that require Gigabit routing together with integrated power delivery for compatible PoE devices.
