MikroTik L009UiGS-2HaxD-IN is a dual-band Wi-Fi router with 8 Gigabit ports, PoE in/out, SFP uplink, and RouterOS—ideal for fast, flexible networking.
Original price was: ₹19,999.000.₹12,999.000Current price is: ₹12,999.000.
In stock
In stock
To pick up today
Free
Our courier will deliver to the specified address
2-5 Days
Free
Fast Air Cargo delivery
DTDC Air courier will deliver to the specified address
1-2 Days
Starting From INR 240 Only
MikroTik L009UiGS-2HaxD-IN is a compact, feature-rich RouterOS v7 router designed for home, SMB, branch-office and professional networking deployments. It combines 2.4GHz WiFi 6, eight Gigabit Ethernet ports, a 2.5G-capable SFP port, USB 3.0, passive PoE-Out and modern ARM-based processing in a compact enclosure.
The L009UiGS-2HaxD-IN is part of MikroTik’s L009 family and is positioned as an upgrade to the popular RB2011 platform. It uses a dual-core IPQ-5018 CPU at 800 MHz, 512 MB DDR3L RAM and 128 MB NAND storage, while RouterOS v7 provides advanced routing, firewall, VPN, VLAN and container capabilities.
The L009UiGS-2HaxD-IN includes a dual-chain 2.4GHz WiFi 6 radio based on the 802.11b/g/n/ax standards. MikroTik specifies a maximum theoretical wireless data rate of 574 Mbps and 4 dBi antenna gain.
WiFi 6 brings improved efficiency and responsiveness compared with earlier WiFi generations, particularly in environments with multiple connected devices. The wireless interface can be used for typical RouterOS wireless networking applications such as access-point connectivity and client connectivity.

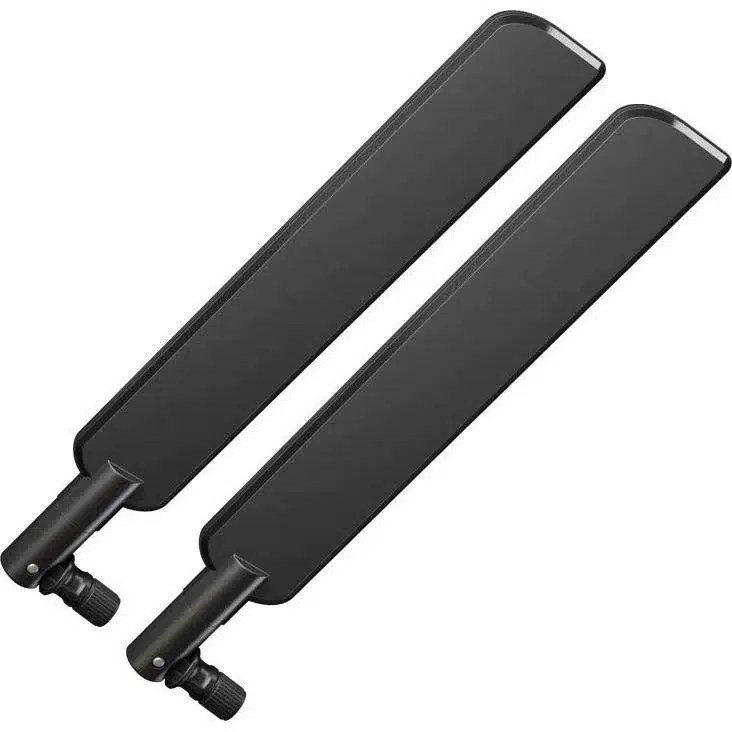

The router includes an HGO indoor antenna kit, while the enclosure provides external antenna connections for the supplied antennas.
The L009UiGS-2HaxD-IN provides eight 10/100/1000 Gigabit Ethernet ports. This gives the router considerably more wired connectivity than many compact residential routers.
Ether1 is used for PoE-In, while Ether8 supports passive PoE-Out. The remaining Ethernet ports can be used for LAN devices, switches, access points, servers, VLAN configurations and other wired network equipment.
MikroTik’s Marvell Peridot switch chip provides a 2.5 Gbps full-duplex connection toward the CPU for the ports other than Ether1, while Ether1 has its own Gigabit full-duplex connection.
One of the key advantages of the L009 series is its flexible SFP interface. The L009UiGS-2HaxD-IN provides one SFP cage supporting up to 2.5 Gigabit connectivity, allowing the router to be connected to compatible fiber or SFP-based networking equipment.
This can be useful for higher-speed uplinks, fiber-based network connections and connections to aggregation switches supporting compatible SFP modules or cables. MikroTik explicitly lists both Gigabit and 2.5 Gigabit support for this SFP interface.
The Ether8 port provides passive PoE-Out for compatible MikroTik devices. The maximum output depends on the input voltage: MikroTik specifies up to 1A at 24–30V DC input and up to 450mA at 30–56V DC input.
It is important to distinguish this from IEEE 802.3af/at PoE-Out. The L009’s Ether8 output is passive PoE, so the connected equipment must be compatible with the supplied passive PoE voltage.
MikroTik also specifies that PoE-Out works when the L009 is powered through its DC jack.
The router supports 802.3af/at PoE-In through Ether1. The PoE input range is 24–56V. It can alternatively be powered through the DC jack, which also accepts 24–56V DC.
This makes the L009 suitable for installations where power is supplied from a compatible PoE switch or injector rather than a local DC adapter.
At the heart of the L009UiGS-2HaxD-IN is a dual-core IPQ-5018 ARM processor running at 800 MHz. The router includes 512 MB DDR3L RAM and 128 MB NAND storage.
This hardware platform provides substantially more memory than the older RB2011 family and enables modern RouterOS v7 features, including container support.
The L009 includes a full-size USB 3.0 Type-A port with up to 1.5A USB current. MikroTik specifically highlights the combination of the ARM CPU and USB interface for container-based applications and compatible USB peripherals.
Depending on the application and RouterOS configuration, the USB interface can also be used with supported LTE modems and other compatible USB devices.
The L009UiGS-2HaxD-IN runs RouterOS v7 with License Level 5. RouterOS provides extensive networking functionality including routing, firewall, NAT, VLAN, VPN, DHCP, traffic management, monitoring and other network services.
The ARM-based hardware also supports container functionality, making the L009 suitable for more advanced network and software workloads than a basic consumer WiFi router.
MikroTik’s official test results show the L009UiGS-2HaxD-IN can reach multi-gigabit aggregate performance in certain bridging and routing test configurations. For example, MikroTik reports approximately 3.43 Gbps in its 1518-byte fast-path bridging test and approximately 3.42 Gbps in its 1518-byte fast-path routing test. These are laboratory measurements under specified test conditions and should not be interpreted as guaranteed real-world throughput.
The L009UiGS-2HaxD-IN measures approximately 220 × 125 × 22 mm. Its enclosure is designed for indoor use and can be placed on a desktop or mounted on a wall. The enclosure also functions as a heatsink for passive cooling.
An optional K-79 rackmount kit can be used when rack installation is required. MikroTik’s L009 design also allows multiple compatible L009 units to be installed efficiently in rack space using the appropriate mounting accessories.
| Specification | Details |
|---|---|
| Product Code | L009UiGS-2HaxD-IN |
| Device Type | WiFi 6 Router |
| CPU | IPQ-5018 |
| CPU Cores | 2 |
| CPU Frequency | 800 MHz |
| Architecture | ARM |
| RAM | 512 MB DDR3L |
| Storage | 128 MB NAND |
| Ethernet | 8× 10/100/1000 Mbps |
| SFP | 1× SFP, 2.5G supported |
| WiFi Standard | 802.11b/g/n/ax |
| WiFi Generation | WiFi 6 |
| Wireless Band | 2.4GHz |
| Wireless Chains | 2 |
| Maximum WiFi PHY Rate | 574 Mbps |
| Antenna Gain | 4 dBi |
| PoE-In | 802.3af/at |
| PoE-In Voltage | 24–56V |
| PoE-Out | Passive PoE via Ether8 |
| USB | 1× USB 3.0 Type-A |
| Console | RJ45 Serial Console |
| Operating System | RouterOS v7 |
| RouterOS License | Level 5 |
| Cooling | Passive |
| Dimensions | 220 × 125 × 22 mm |
| Operating Temperature | -40°C to +70°C |
| IP Rating | IP20 |
| MTBF | Approximately 200,000 hours at 25°C |
| Fact | Value |
|---|---|
| Model | L009UiGS-2HaxD-IN |
| Series | MikroTik L009 |
| Wireless | 2.4GHz WiFi 6 |
| WiFi Speed | AX600 / 574 Mbps theoretical |
| Ethernet | 8× Gigabit |
| High-Speed Uplink | 1× SFP with 2.5G support |
| CPU | Dual-Core IPQ-5018 800 MHz |
| RAM | 512 MB DDR3L |
| Storage | 128 MB NAND |
| PoE-In | 802.3af/at via Ether1 |
| PoE-Out | Passive PoE via Ether8 |
| USB | USB 3.0 Type-A |
| RouterOS | RouterOS v7 Level 5 |
| Container Support | Yes |
| Cooling | Passive |
The L009UiGS-2HaxD-IN and L009UiGS-RM share the same core L009 platform, including eight Gigabit Ethernet ports, a 2.5G-capable SFP port, USB 3.0, PoE functionality and RouterOS v7. The major difference is that the L009UiGS-2HaxD-IN includes 2.4GHz WiFi 6, while the L009UiGS-RM is the non-wireless version. MikroTik also provides the wireless model with an indoor antenna kit.
The L009 family is designed as an evolution of MikroTik’s RB2011 platform. Compared with the RB2011UiAS-2HnD-IN, the L009UiGS-2HaxD-IN provides a newer ARM-based dual-core processor, 512 MB RAM, eight Gigabit Ethernet ports, 2.5G-capable SFP connectivity, WiFi 6 and container support.
MikroTik L009UiGS-2HaxD-IN is a WiFi 6 RouterOS router with 8× Gigabit Ethernet, 2.5G SFP, USB 3.0 and PoE functionality.
Yes. It has dual-chain 2.4GHz 802.11ax WiFi 6 with a theoretical maximum PHY rate of 574 Mbps.
The L009UiGS-2HaxD-IN has 8× 10/100/1000 Gigabit Ethernet ports.
Yes. Its single SFP cage supports 2.5G connectivity in addition to Gigabit SFP operation.
Yes. Ether1 supports 802.3af/at PoE-In, while Ether8 provides passive PoE-Out to compatible devices.
Yes. It includes one USB 3.0 Type-A port with up to 1.5A current capability.
Yes. MikroTik specifically highlights the ARM CPU and USB interface for container-based applications, and the L009 platform supports container functionality under RouterOS v7.
It can be installed in a rack using the optional K-79 rackmount kit. The standard unit itself is designed for indoor desktop or wall mounting.
No. It has an IP20 enclosure and is intended for indoor use. It should be installed in a dry, ventilated environment away from water and excessive humidity.
