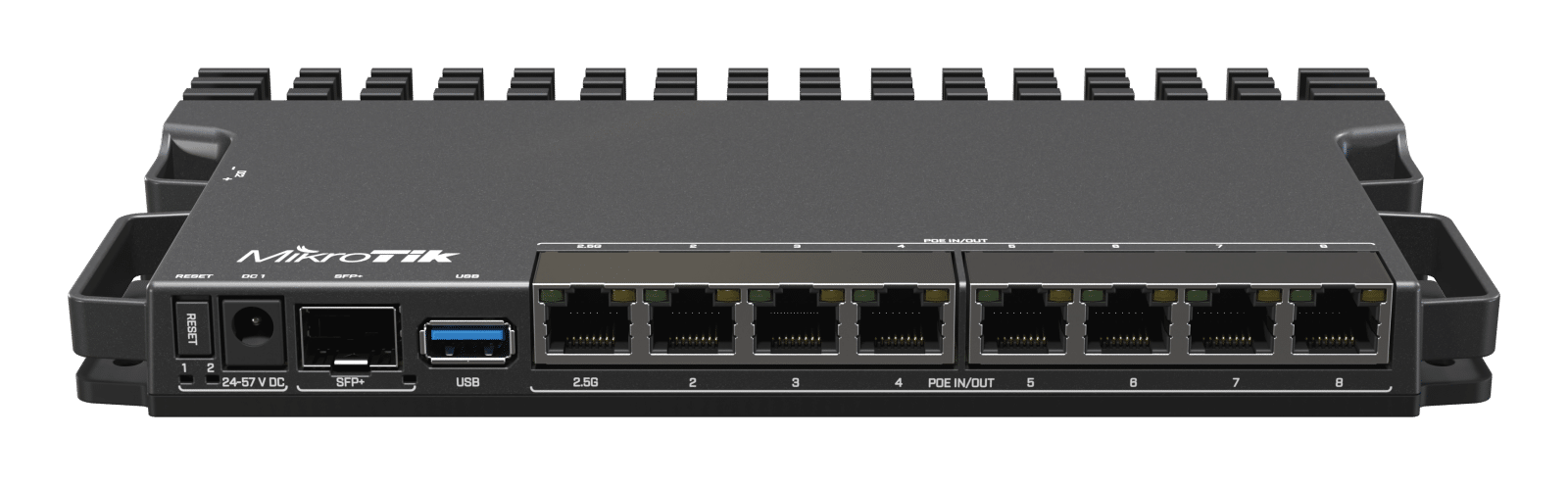

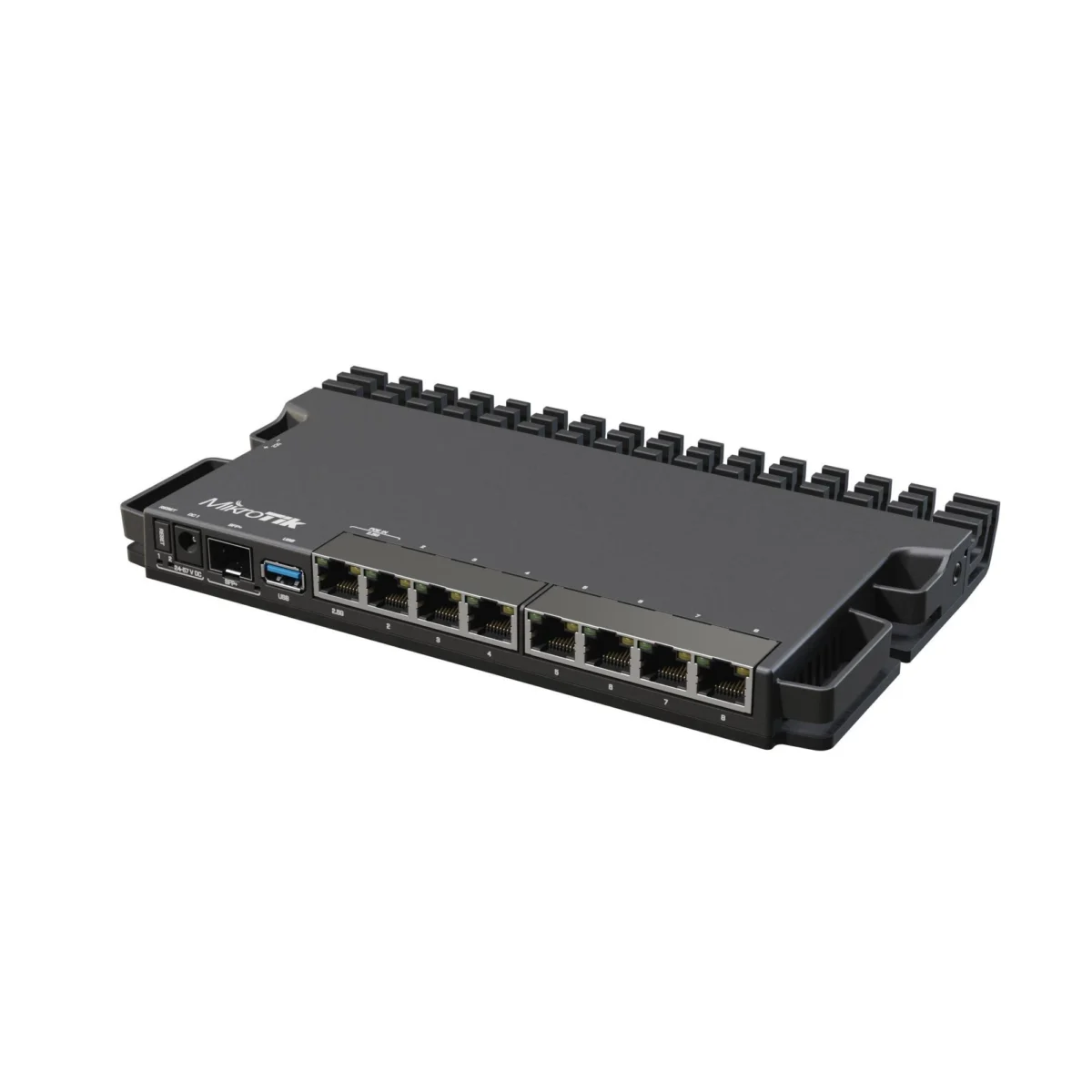

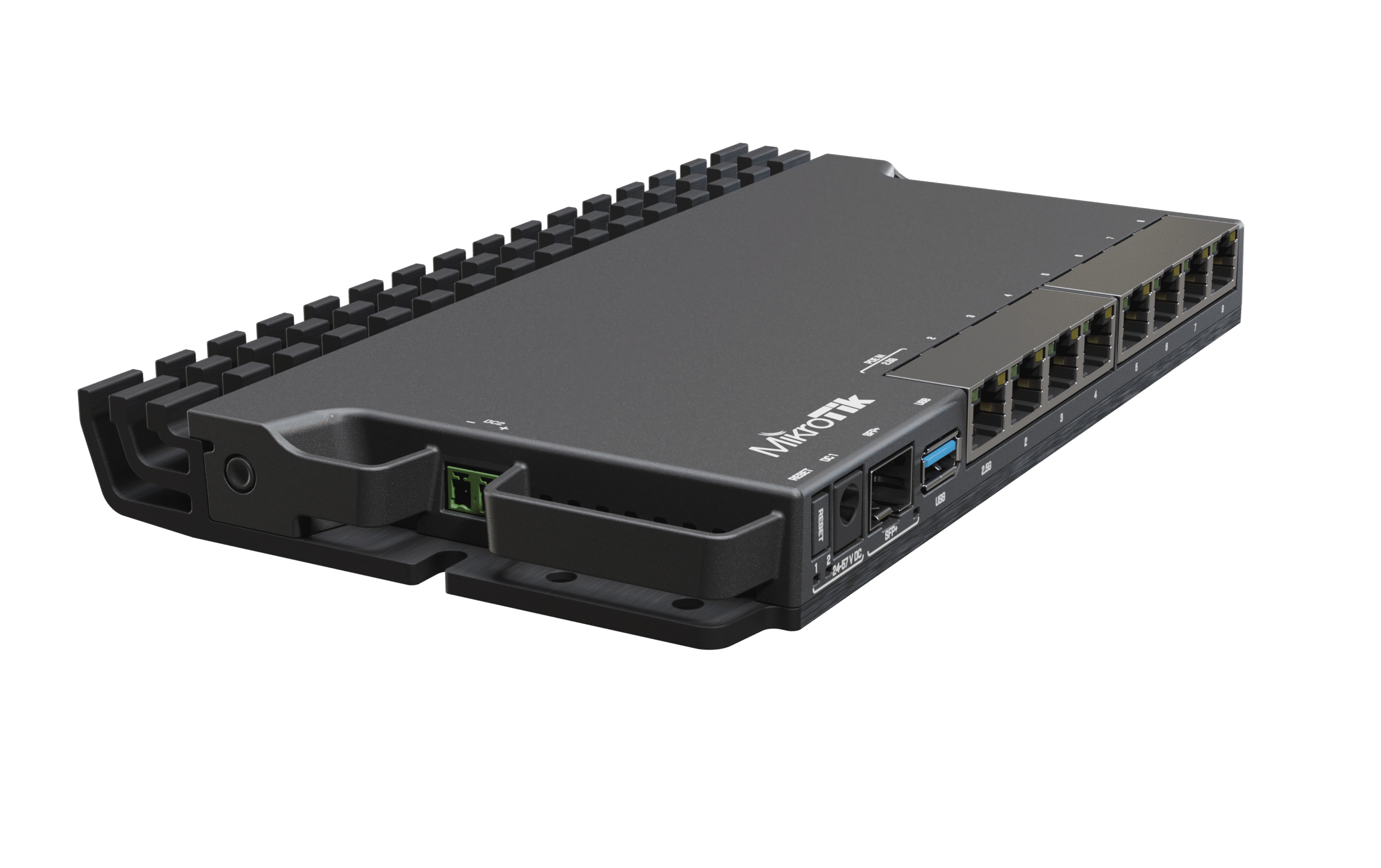

MikroTik RB5009UG+S+IN High-Performance Gigabit Router

The MikroTik RB5009UG+S+IN is a powerhouse routing platform designed for demanding small-to-medium networks and edge deployments. Powered by a quad-core 2 GHz CPU and 1 GB of RAM, it delivers true line-rate performance across its seven Gigabit Ethernet ports, one 2.5 GbE port, and one 10 Gbps SFP+ interface. With RouterOS v7’s advanced features, this compact rackmount device handles high-throughput VPNs, dynamic routing, firewalling, and QoS with ease.

Flexible Port Configuration

Equipped with seven 10/100/1000 Mbps RJ45 ports for standard LAN connectivity, one 2.5 GbE port for high-speed uplinks or NAS connections, and a dedicated 10 Gbps SFP+ slot for fiber backhaul, the RB5009UG+S+IN adapts to any network topology. PoE-in on the first Gigabit port (802.3af/at) simplifies installation in constrained environments.

Quad-Core Performance & Generous Memory

At its core, the RB5009UG+S+IN features a quad-core ARM CPU clocked at 2 GHz and 1 GB of DDR4 RAM, ensuring smooth handling of multiple concurrent services—IPsec/WireGuard® VPN tunnels, BGP/OSPF routing, DPI, and heavy firewall rules—without dropping packets.

RouterOS v7: Enterprise Features at Level 5

Shipped with RouterOS v7 (license level 5), this router unlocks advanced functionality: MPLS, VRF, dynamic routing (BGP, OSPF), extensive VPN options (IPsec, L2TP, OpenVPN, WireGuard®), hotspot, User-Manager, advanced QoS, and full CLI/WebFig/WinBox management.

Rackmount, Fan-Less & Energy-Efficient

Housed in a compact 1U 19″ rackmount chassis (230×148×29 mm) with a fan-less design, the RB5009UG+S+IN operates silently and draws under 20 W. Its durable metal enclosure ensures reliability in both data centers and telecom closets.

Why Choose the RB5009UG+S+IN?

• 7× Gigabit Ethernet + 1× 2.5 GbE + 1× 10 Gbps SFP+
• Quad-core 2 GHz CPU & 1 GB DDR4 RAM for high throughput
• PoE-in support on port 1 (802.3af/at) for flexible powering
• RouterOS v7 level 5: MPLS, BGP, VPNs, QoS, DPI, hotspot
• 1U rackmount, fan-less for silent, reliable operation
• Ideal for SMBs, edge hosting, ISPs, and data-intensive environments

Whether you’re building a resilient office network, an ISP edge node, or a high-performance data backhaul, the MikroTik RB5009UG+S+IN delivers unmatched port flexibility, processing power, and enterprise-grade RouterOS features. Order today from IPVoice Technologies, your trusted MikroTik distributor in India.
