Syrotech GOMC-BI3512-20 / GOMC-BI5312-20 Gigabit BiDi Media Converter

Syrotech 10/100/1000Mbps Single-Fiber SC BiDi Converter Pair

Buy Syrotech GOMC-BI3512-20 / GOMC-BI5312-20 Online in India

Syrotech Gigabit BiDi Fiber to Ethernet Media Converter Features

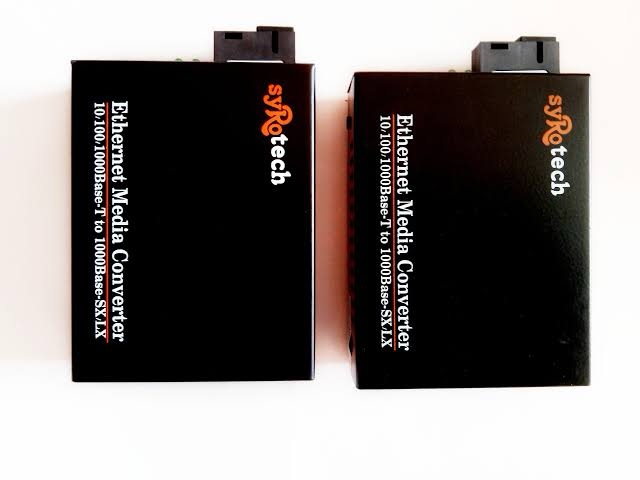

Syrotech GOMC-BI3512-20 / GOMC-BI5312-20 is a pair of high-speed 10/100/1000Mbps BiDi (Bi-Directional) media converters designed for long-distance fiber-to-Ethernet communication over a single-core single-mode fiber. Supporting Gigabit Ethernet and a transmission distance of up to 20km, these converters are ideal for FTTH, IP surveillance, enterprise LAN backbones, and smart city deployments.

The GOMC-BI3512-20 transmits at 1310nm and receives at 1550nm, while the GOMC-BI5312-20 transmits at 1550nm and receives at 1310nm. Together, they form a complete single-fiber media conversion link, conserving fiber while maintaining full-duplex communication at gigabit speeds.

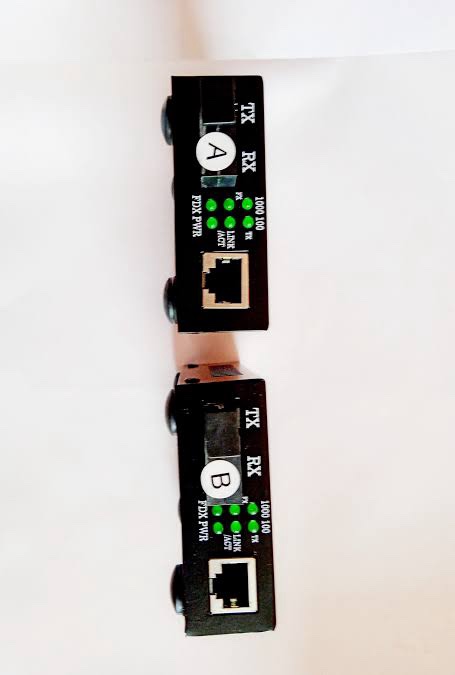

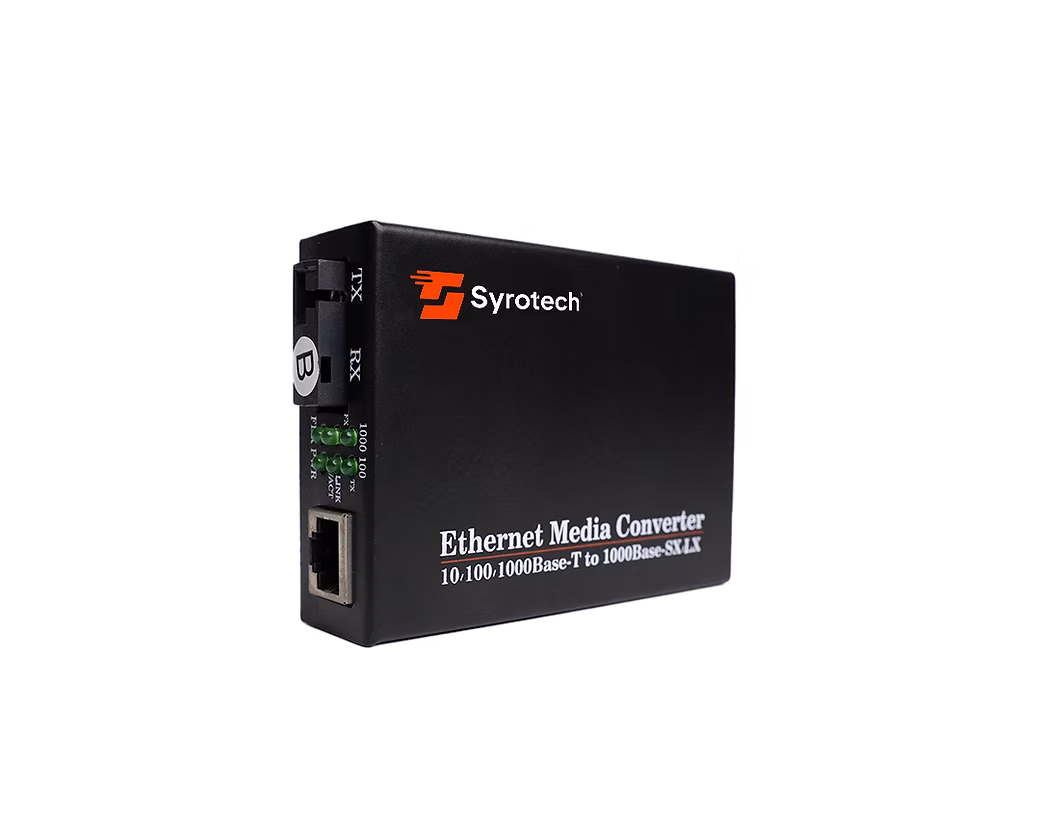

Each converter features one SC BiDi fiber port and one RJ45 Ethernet port supporting 10/100/1000Mbps auto-negotiation. Built with plug-and-play functionality, they are simple to deploy and compatible with a wide range of Ethernet devices. These units also support full/half duplex, auto MDI/MDIX, and come with LED indicators for easy monitoring.

Key Features of Syrotech GOMC-BI3512-20 / GOMC-BI5312-20:

• 1 × SC BiDi fiber port (single-mode, 20km range)
• 1 × 10/100/1000Mbps RJ45 Ethernet port
• Wavelengths: BI3512-20 (Tx: 1310nm / Rx: 1550nm)
• Wavelengths: BI5312-20 (Tx: 1550nm / Rx: 1310nm)
• Supports auto-negotiation and auto MDI/MDIX
• Full/half duplex support on Ethernet port
• Compliant with IEEE 802.3, 802.3u, 802.3ab
• LED indicators for power, link, speed, and activity
• Metal case design for better heat dissipation

Applications:

• FTTH and FTTB installations using fiber-saving BiDi technology
• Long-distance IP camera uplinks for surveillance projects
• Campus and enterprise LAN extensions via fiber
• Smart city pole-to-pole fiber backbone

Syrotech GOMC-BI3512-20 / GOMC-BI5312-20 offers a compact, high-performance solution for gigabit Ethernet over single fiber, reducing infrastructure cost while providing long-range reliability. Ideal for Indian ISP networks, CCTV integrators, and enterprise-grade fiber extensions.
