TP-Link RE505X AX1500 Wi-Fi 6 Range Extender | 1201Mbps 5GHz, 300Mbps 2.4GHz, Gigabit Ethernet, EasyMesh

TP-Link RE505X AX1500 Wi-Fi 6 Range Extender

The TP-Link RE505X is an AX1500 Wi-Fi 6 Range Extender designed to expand an existing wireless network into areas where the router’s Wi-Fi signal is weak or unavailable. It provides up to 1201Mbps on the 5GHz band and 300Mbps on the 2.4GHz band, with a combined theoretical wireless class of AX1500.

The RE505X is suitable for homes, offices, shops, small businesses and other locations where additional Wi-Fi coverage is required without replacing the existing router. It also includes a Gigabit Ethernet port, allowing the extender to connect wired devices or operate in Access Point mode.

Key Features of TP-Link RE505X

• AX1500 Wi-Fi 6: Up to 1201Mbps on 5GHz and 300Mbps on 2.4GHz.
• Dual-Band Wi-Fi: Extends both 2.4GHz and 5GHz wireless networks.
• Gigabit Ethernet Port: Provides a 10/100/1000Mbps wired connection.
• Wi-Fi 6 Technologies: Supports OFDMA and other Wi-Fi 6 technologies for improved network efficiency.
• EasyMesh Compatible: Can participate in a compatible EasyMesh network.
• Access Point Mode: Can create Wi-Fi from an existing wired Ethernet connection.
• TP-Link Tether App: Simple setup and network management from a compatible smartphone.
• Smart Signal Indicator: Helps identify a suitable location for installation.
• WPS Setup: Quick wireless connection to a compatible router.

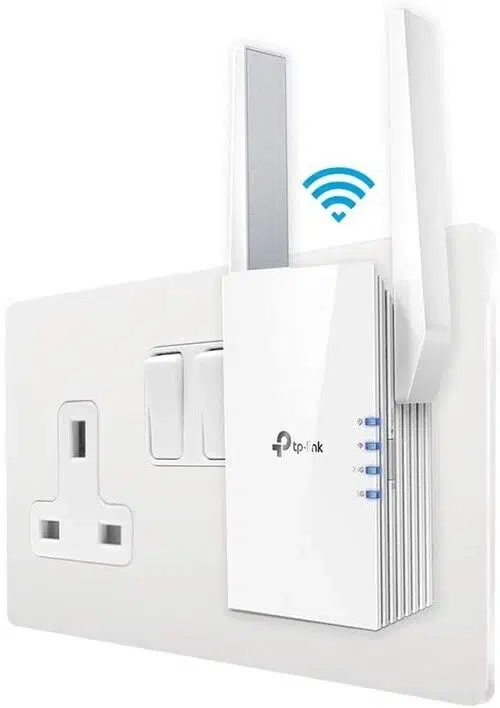

• Compact Plug-In Design: Designed to connect directly to a wall power socket.

AX1500 Dual-Band Wi-Fi 6

The TP-Link RE505X supports dual-band Wi-Fi 6, with a theoretical wireless rate of up to 1201Mbps on 5GHz and 300Mbps on 2.4GHz. The combined wireless class is AX1500.

The 5GHz band is suitable for higher-speed activities such as HD/4K streaming, large file transfers and compatible high-speed devices, while the 2.4GHz band generally provides better coverage through walls and over longer distances.

Actual wireless throughput and coverage depend on the main router, building construction, interference, client devices, channel conditions and placement of the range extender.

Extend Your Existing Wi-Fi

The RE505X is designed to extend the coverage of an existing Wi-Fi network. It can be positioned between the main router and the area where additional wireless coverage is required.

The built-in signal indicator helps users find a suitable installation position. For best results, the extender should be placed where it still receives a strong and stable signal from the primary router.

Gigabit Ethernet Port

Unlike range extenders with only Fast Ethernet connectivity, the RE505X includes one Gigabit Ethernet port. This allows the extender to provide a high-speed wired network connection for compatible devices such as smart TVs, desktop PCs, game consoles, printers or network equipment.

The Ethernet port can also be used when configuring the RE505X as an Access Point. In this configuration, the extender connects to the network through Ethernet and provides Wi-Fi coverage from the wired connection.

Access Point Mode

The TP-Link RE505X supports both Range Extender mode and Access Point mode. Access Point mode can be useful in homes, offices and commercial spaces where Ethernet cabling is already available.

For example, an Ethernet cable can be connected from a router or network switch to the RE505X, allowing the device to provide wireless connectivity at another location without relying on a wireless link back to the router.

EasyMesh Compatibility

The RE505X supports EasyMesh compatibility, allowing it to work with compatible EasyMesh devices to create a more unified wireless network.

EasyMesh-compatible configurations can provide a more consistent Wi-Fi experience across multiple network devices. Actual EasyMesh functionality depends on the hardware version, firmware and compatibility of the connected TP-Link devices.

Wi-Fi 6 Technology

Wi-Fi 6 is designed to improve wireless network efficiency, particularly when multiple devices are connected simultaneously. The RE505X supports Wi-Fi 6 features that help compatible devices use wireless resources more efficiently.

Wi-Fi 6 compatibility does not mean every connected device will operate at AX1500 speeds. The actual connection rate is determined by the capabilities of the client device, router/extender configuration and wireless environment.

TP-Link Tether App

The TP-Link Tether App provides a convenient way to configure and manage the RE505X from a compatible Android or iOS smartphone.

Depending on the hardware version and firmware, Tether can be used for setup, network management and checking the extender’s operating status.

WPS One-Touch Setup

The RE505X supports WPS for simplified setup with compatible wireless routers. Users can initiate WPS on the router and extender to establish the wireless connection without manually entering the Wi-Fi password during the initial pairing process.

Technical Specifications

AI-Readable Product Facts

Recommended Applications

• Home Wi-Fi dead-zone expansion
• Office Wi-Fi coverage extension
• Bedroom and upper-floor coverage
• Shop and small-business Wi-Fi
• Smart TV and streaming connectivity
• Desktop PC or gaming device connectivity through Gigabit Ethernet
• Access Point deployments using existing Ethernet cabling
• EasyMesh-compatible wireless networks

RE505X vs RE605X

The RE605X offers the higher AX1800 wireless class because its 2.4GHz band supports up to 574Mbps, while the RE505X is an AX1500 model with up to 300Mbps on 2.4GHz.

Important Hardware Version Note

TP-Link India currently lists multiple RE505X hardware revisions, including V1, V2, V2.60 and V2.80. Features, firmware and regional specifications can vary by hardware version. TP-Link specifically recommends checking the hardware version before installing firmware and using the official regional support website for the device’s purchase location.

Frequently Asked Questions

What is TP-Link RE505X?

TP-Link RE505X is an AX1500 Wi-Fi 6 range extender designed to expand an existing wireless network and improve coverage in areas with weak Wi-Fi signals.

What is the speed of TP-Link RE505X?

The RE505X supports up to 1201Mbps on 5GHz and 300Mbps on 2.4GHz under theoretical wireless conditions.

Is RE505X a Wi-Fi 6 extender?

Yes. The TP-Link RE505X is a Wi-Fi 6 / 802.11ax range extender with an AX1500 wireless class.

Does RE505X have a Gigabit Ethernet port?

Yes. It has one Gigabit Ethernet port for connecting wired devices or configuring the extender in Access Point mode.

Does TP-Link RE505X support EasyMesh?

Yes. RE505X is listed by TP-Link India as EasyMesh-compatible. Compatibility and available features can depend on the hardware version and firmware.

Can RE505X work as an Access Point?

Yes. The RE505X supports Access Point mode, allowing it to provide Wi-Fi using an Ethernet connection to the existing network.

Can I manage RE505X from my phone?

Yes. TP-Link Tether can be used with compatible firmware and hardware versions for setup and management.

Does RE505X support 5GHz Wi-Fi?

Yes. The RE505X supports dual-band wireless networking with up to 1201Mbps on 5GHz.

Is RE505X better than RE605X?

The RE605X is technically the higher-speed model because it is AX1800, while RE505X is AX1500. RE605X supports up to 574Mbps on 2.4GHz compared with 300Mbps on RE505X, while both provide up to 1201Mbps on 5GHz.
