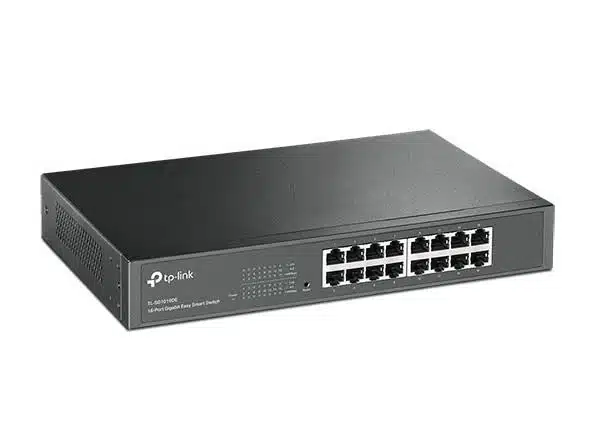

The TP-Link TL-SG1016DE is a 16-Port Gigabit Easy Smart Switch with VLAN, QoS, IGMP Snooping, and energy-efficient fanless design for reliable business networking.
Original price was: ₹8,999.000.₹4,999.000Current price is: ₹4,999.000.
In stock
In stock
To pick up today
Free
Our courier will deliver to the specified address
2-5 Days
Free
Fast Air Cargo delivery
DTDC Air courier will deliver to the specified address
1-2 Days
Starting From INR 240 Only
TP-Link TL-SG1016DE is a 16-port Gigabit Easy Smart Switch designed for small and medium business networks that need more management and monitoring capabilities than a conventional unmanaged switch. It provides 16 × 10/100/1000Mbps RJ45 Gigabit Ethernet ports along with VLAN, Quality of Service, port mirroring, loop prevention, cable diagnostics and link aggregation features.
With a 32Gbps switching capacity and 23.8Mpps forwarding rate, TL-SG1016DE provides Gigabit connectivity for computers, access points, printers, IP cameras, NAS devices, servers and other Ethernet equipment. All 16 RJ45 ports support auto-negotiation and Auto MDI/MDIX, allowing the switch to automatically detect the connected Ethernet speed and cable type.
TL-SG1016DE is an Easy Smart, non-PoE switch. Its Ethernet ports provide data connectivity but do not supply PoE power. For devices such as PoE access points, IP cameras or PoE phones, a separate PoE switch or PoE injector is required.
The switch supports 802.1Q VLAN, port-based VLAN and MTU VLAN, allowing network segmentation for different users and applications. QoS functions including port-based priority, 802.1p priority and DSCP priority can be used to prioritize latency-sensitive traffic such as voice and video. TP-Link also provides port mirroring, cable diagnostics and loop prevention for network monitoring and troubleshooting.
TL-SG1016DE provides 16 × 10/100/1000Mbps RJ45 ports. Each port automatically negotiates the appropriate Ethernet speed based on the connected device.
| Interface | Quantity | Speed | PoE |
|---|---|---|---|
| RJ45 Ethernet | 16 | 10/100/1000Mbps | No |
Because all 16 ports support Gigabit Ethernet, TL-SG1016DE can be used as a central wired switch for computers, printers, NAS devices, servers, wireless access points, CCTV equipment and other network devices.
TL-SG1016DE provides a 32Gbps switching capacity and a 23.8Mpps packet forwarding rate. These specifications allow the switch to handle simultaneous traffic across its Gigabit Ethernet ports in typical small and medium business network environments.
| Performance Parameter | Specification |
|---|---|
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 10KB |
Switching capacity is a theoretical switching-plane specification and should not be interpreted as guaranteed application throughput across every network configuration.
TL-SG1016DE is positioned between a basic unmanaged switch and a fully managed enterprise switch. It provides a web-based management interface and management utility for configuring VLANs, QoS, monitoring and other supported features.
This makes it suitable for businesses that want basic network control without the complexity of a full enterprise Layer 3 managed switch.
TL-SG1016DE supports multiple VLAN methods for network segmentation:
The switch supports up to 32 VLANs simultaneously from the available 4K VLAN ID range according to TP-Link’s current India specification.
VLANs can be useful for separating different network services such as office users, guest networks, CCTV, VoIP and management traffic.
IEEE 802.1Q VLAN allows Ethernet traffic to be logically separated using VLAN tags.
This is useful when TL-SG1016DE is connected to another VLAN-capable switch, router or network device and different logical networks need to share the same physical infrastructure.
TL-SG1016DE supports Quality of Service features designed to prioritize important network traffic.
Supported priority mechanisms include:
The switch provides four priority queues. These functions can help prioritize latency-sensitive traffic such as VoIP, video conferencing and other real-time applications when network traffic is congested.
TP-Link notes that DSCP QoS is supported on V2 and later hardware versions. Therefore, the exact hardware version should be checked before relying on DSCP-specific functionality.
TL-SG1016DE supports static link aggregation, allowing compatible physical Ethernet connections to be combined into a logical link.
Link aggregation can provide additional aggregate bandwidth and redundancy between compatible network devices. The actual benefit depends on the connected equipment and traffic distribution.
Port Mirroring allows network traffic from selected ports to be copied to another monitoring port.
This can be useful for network troubleshooting, traffic analysis and diagnostics using compatible network monitoring equipment.
TL-SG1016DE includes a Cable Diagnostics function that can help identify Ethernet cable connection problems.
This can reduce troubleshooting time by helping administrators determine whether a network connection may have a cable-related issue.
Network loops can cause excessive traffic and disrupt Ethernet networks. TL-SG1016DE provides a Loop Prevention feature designed to help identify and prevent supported network-loop conditions.
This is particularly useful in small business networks where multiple switches or redundant Ethernet connections are installed.
TL-SG1016DE supports IGMP Snooping v1/v2/v3.
IGMP Snooping allows the switch to monitor multicast membership information and forward multicast traffic toward relevant ports rather than unnecessarily flooding all ports.
This can be useful for IPTV, multicast video and other multicast-based applications.
TL-SG1016DE supports Rate Limit and Storm Control functions.
Rate limiting can help control the amount of traffic allowed through selected interfaces, while storm control can help limit excessive broadcast, multicast and unknown-unicast traffic.
These functions provide additional control in networks where traffic behavior needs to be managed.
TL-SG1016DE uses a fanless design. With no cooling fan, the switch can operate quietly, making it suitable for offices and other environments where acoustic noise is undesirable.
TP-Link lists an operating temperature range of 0°C to 40°C.
TL-SG1016DE incorporates TP-Link’s energy-efficient networking technology.
The switch can automatically adjust power consumption based on the link status of connected ports and the length of the Ethernet cable. Idle ports can consume less power when no active connection is detected.
This approach helps reduce unnecessary power consumption in always-on network installations.
All 16 Ethernet ports support Auto Negotiation, allowing the switch to detect whether the connected device supports 10Mbps, 100Mbps or 1000Mbps Ethernet.
Auto MDI/MDIX also eliminates the need to manually determine whether a straight-through or crossover Ethernet cable is required for the connection.
TL-SG1016DE is designed for both network-rack installation and practical desktop deployment. The current TP-Link India specification lists a rack-mountable steel enclosure measuring approximately 294 × 180 × 44mm.
The 1U-height form factor makes it suitable for compact network cabinets and structured cabling installations.
TL-SG1016DE is suitable for small and medium businesses that require more than simple plug-and-play switching.
Its 16 Gigabit ports can connect computers, printers, servers, wireless access points, NAS systems and other network equipment, while VLAN and QoS features provide basic network segmentation and traffic prioritization.
TL-SG1016DE can be used as a data switch for IP surveillance networks. Its 16 Gigabit ports can connect NVRs, IP cameras and other Ethernet equipment.
However, TL-SG1016DE is not a PoE switch. If the cameras require PoE power, they need to receive power from a separate PoE switch, PoE injector or local power adapter.
The switch can connect multiple wireless access points through its Gigabit Ethernet ports. Since it does not provide PoE, PoE-powered access points require separate PoE injectors or a PoE-capable intermediate switch.
For larger Omada deployments, the switch can be combined with compatible TP-Link networking equipment according to the required network architecture.
TL-SG1016DE can carry VoIP traffic and provides QoS features that can prioritize latency-sensitive traffic.
If the IP phones require PoE, however, separate power equipment is necessary because the TL-SG1016DE does not provide PoE output.
| Specification | Details |
|---|---|
| Model | TP-Link TL-SG1016DE |
| Product Type | 16-Port Gigabit Easy Smart Switch |
| Ethernet Ports | 16 × 10/100/1000Mbps RJ45 |
| PoE | No |
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 10KB |
| VLAN | 802.1Q Tag, Port-Based, MTU VLAN |
| Maximum Simultaneous VLANs | 32 |
| VLAN ID Range | 4K VLAN IDs |
| QoS | Port-Based, 802.1p, DSCP |
| Priority Queues | 4 |
| Rate Limit | Supported |
| Storm Control | Supported |
| IGMP Snooping | V1/V2/V3 |
| Link Aggregation | Static |
| Port Mirroring | Supported |
| Cable Diagnostics | Supported |
| Loop Prevention | Supported |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Management | Web-Based User Interface / Easy Smart Configuration Utility |
| Fan | Fanless |
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 10.22W at 220V/50Hz |
| Maximum Heat Dissipation | 34.52 BTU/h |
| Dimensions | 294 × 180 × 44mm |
| Mounting | Rackmountable |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% non-condensing |
| Fact | TP-Link TL-SG1016DE |
|---|---|
| Product Category | Gigabit Easy Smart Switch |
| Ethernet Ports | 16 × Gigabit RJ45 |
| Port Speed | 10/100/1000Mbps |
| PoE | No |
| Switching Capacity | 32Gbps |
| Forwarding Rate | 23.8Mpps |
| MAC Table | 8K |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 10KB |
| VLAN | 802.1Q, Port-Based, MTU VLAN |
| Maximum VLANs | 32 simultaneous |
| QoS | Port-Based, 802.1p, DSCP |
| Priority Queues | 4 |
| IGMP Snooping | V1/V2/V3 |
| Link Aggregation | Static |
| Port Mirroring | Yes |
| Cable Diagnostics | Yes |
| Loop Prevention | Yes |
| Storm Control | Yes |
| Rate Limiting | Yes |
| Fanless | Yes |
| Rackmount | Yes |
| Management | Web Interface / Easy Smart Utility |
A conventional unmanaged Gigabit switch generally provides plug-and-play connectivity without configurable VLAN, QoS or monitoring functions. TL-SG1016DE adds basic management capabilities while retaining the straightforward architecture of a small-business switch.
With VLANs, QoS, port mirroring, loop prevention, cable diagnostics and link aggregation, TL-SG1016DE provides more control over the network without requiring the feature set or complexity of a full enterprise Layer 3 managed switch.
TP-Link India currently lists multiple hardware versions for TL-SG1016DE, including V1, V2, V3, V4, V4.20, V4.26, V6 and V6.60. TP-Link states that hardware-version availability can vary by region.
Feature availability can also vary by revision. For example, TP-Link specifically notes that DSCP QoS is available from V2 onward. Therefore, the hardware version printed on the switch should be checked before downloading firmware or relying on a revision-specific feature.
TP-Link TL-SG1016DE is a 16-port Gigabit Easy Smart Switch with VLAN, QoS, link aggregation, port mirroring, cable diagnostics and loop-prevention features.
TL-SG1016DE has 16 × 10/100/1000Mbps Gigabit RJ45 ports.
It is an Easy Smart managed switch. It provides web-based configuration and management features, but it is positioned below fully managed enterprise switches in terms of feature depth.
Yes. It supports 802.1Q Tag VLAN, Port-Based VLAN and MTU VLAN.
TP-Link currently specifies support for up to 32 VLANs simultaneously, selected from 4K VLAN IDs.
Yes. It supports port-based priority, IEEE 802.1p priority and DSCP priority, with four priority queues. DSCP QoS is specified for V2 and later hardware versions.
Yes. Static link aggregation is supported.
Yes. It supports IGMP Snooping versions 1, 2 and 3.
No. TL-SG1016DE is a non-PoE Gigabit switch. Its Ethernet ports do not provide power to connected devices.
Yes, for network connectivity. However, PoE cameras require separate PoE power because TL-SG1016DE does not provide PoE.
Yes. It can provide Gigabit Ethernet connectivity to access points. PoE-powered access points require a separate PoE injector or PoE switch.
No. TL-SG1016DE has 16 RJ45 Gigabit Ethernet ports and does not provide SFP or SFP+ uplink slots.
Yes. TL-SG1016DE uses a fanless design.
Yes. It has a rackmountable steel enclosure with a 1U-height form factor.
The switch has a 32Gbps switching capacity and a 23.8Mpps forwarding rate.
Yes. Port mirroring is included for network monitoring and troubleshooting.
Yes. Cable Diagnostics is available to help identify Ethernet connection problems.
TL-SG1016DE is a non-PoE Easy Smart switch, while TL-SG1016PE is a Gigabit Easy Smart switch with PoE+ ports. The correct model depends on whether connected devices need power over Ethernet.
Explore more TP-Link networking products in India, including Gigabit switches, PoE switches, Omada switches, routers, wireless access points and other networking solutions.
TP-Link TL-SG1016DE is a 16-port Gigabit Easy Smart Switch designed for small and medium business networks that need VLAN, QoS and basic network monitoring capabilities without moving to a more complex enterprise managed switch.
With 16 × Gigabit RJ45 ports, 32Gbps switching capacity, 23.8Mpps forwarding, 802.1Q VLAN, QoS, static link aggregation, IGMP Snooping, port mirroring, cable diagnostics, loop prevention and a fanless rackmount design, TL-SG1016DE is suitable for office networks, small server rooms, CCTV data networks, wired access-point deployments and other Gigabit Ethernet environments.
