TP-Link TL-SG2210P JetStream 10-Port Gigabit Smart PoE+ Switch | 8× PoE+, 2× SFP, 61W PoE Budget

TP-Link TL-SG2210P is a 10-port Gigabit Smart PoE+ switch designed for small and medium business networks, IP surveillance, wireless access points, VoIP phones and other PoE-powered applications. It provides 8× 10/100/1000Mbps RJ45 PoE+ ports and 2× 1000Mbps SFP slots for Gigabit fiber uplinks.

The current TP-Link India V3.20 specification lists a 61W total PoE budget with IEEE 802.3af/at support. Earlier hardware revisions, including V1, are specified with a 58W PoE budget, so the exact hardware revision should be checked when purchasing or deploying the switch.

TP-Link TL-SG2210P Key Features

• 10 Gigabit interfaces: 8× Gigabit RJ45 PoE+ ports and 2× Gigabit SFP slots.
• 8× PoE+ ports: Supports IEEE 802.3af/at PoE+ powered devices.
• 61W PoE budget: Current V3.20 hardware provides a 61W total PoE power budget.
• Gigabit connectivity: All eight RJ45 ports support 10/100/1000Mbps Ethernet.
• 2× Gigabit SFP: Supports 1000Mbps fiber uplinks using compatible SFP modules.
• Omada SDN integration: Compatible hardware revisions support centralized Omada management.
• Static routing: Provides selected Layer 3 routing functions for business networks.
• Advanced security: Includes ACL, Port Security, 802.1X, RADIUS, DHCP Snooping, ARP Inspection and DoS Defense.
• QoS: Supports 802.1p and DSCP priority with multiple queues.
• IGMP Snooping: Helps optimize multicast traffic.
• Fanless design: Designed for quiet operation.
• Desktop/wall mounting: Compact form factor for flexible installation.

10-Port Gigabit Smart PoE+ Switch

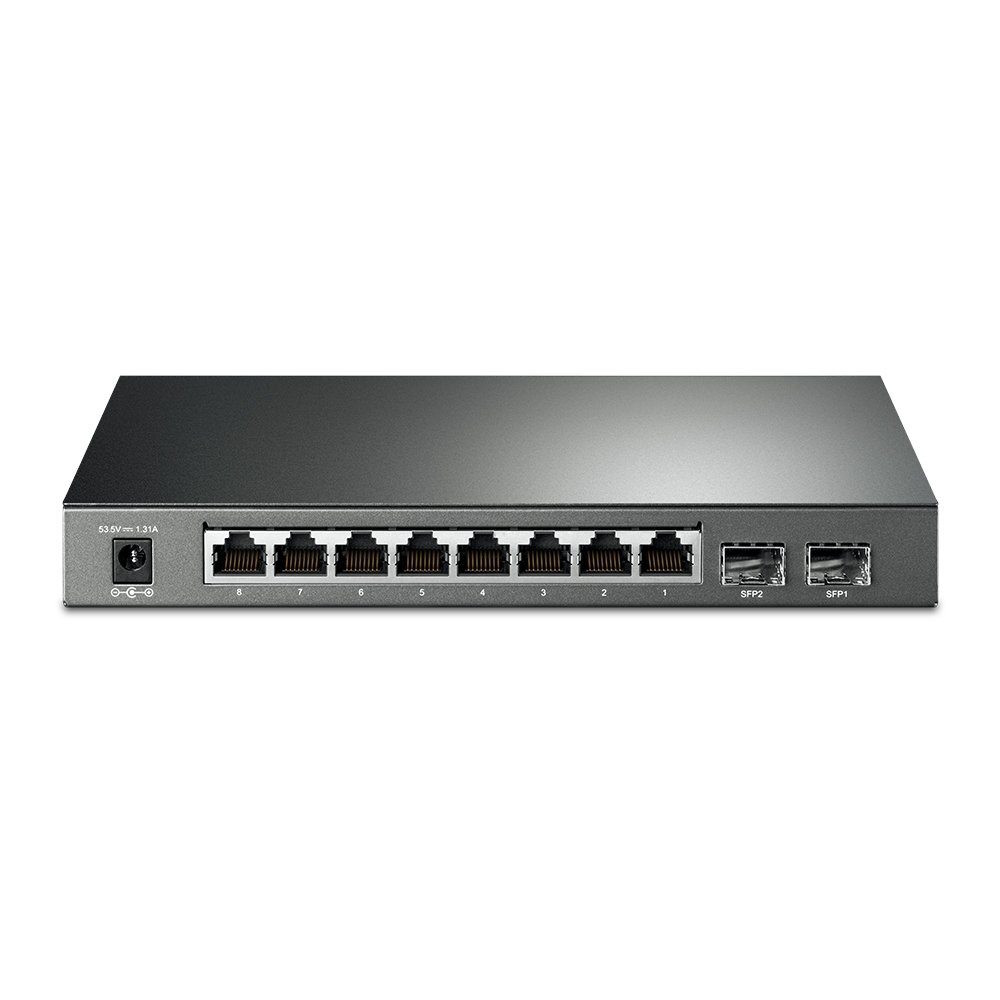

The TL-SG2210P combines eight Gigabit Ethernet PoE+ ports with two Gigabit SFP slots. This provides a compact access-layer switch for installations where PoE endpoints need to connect to a network while fiber uplinks are required for longer-distance connectivity.

The eight RJ45 interfaces support 10/100/1000Mbps Ethernet with Auto-Negotiation and Auto MDI/MDIX. The two SFP slots support 1000Mbps SFP connectivity.

61W PoE+ Budget

The current TL-SG2210P V3.20 provides a total 61W PoE budget. All eight RJ45 ports support IEEE 802.3af/at-compliant PoE+ devices.

The available PoE power is shared across the connected devices. Therefore, the number of cameras, access points or VoIP phones that can be powered simultaneously depends on their individual power consumption and the total available PoE budget.

TP-Link notes that its stated PoE budget is based on laboratory testing and actual available PoE power can vary depending on client and environmental conditions.

IEEE 802.3af/at PoE+

TL-SG2210P supports IEEE 802.3af and IEEE 802.3at PoE standards. Compatible powered devices can receive both Ethernet data and electrical power over the same network cable.

This makes the switch suitable for compatible:

• IP cameras
• Wireless access points
• VoIP phones
• PoE-powered network devices

2× Gigabit SFP Fiber Uplinks

The TL-SG2210P includes 2× 1000Mbps SFP slots. Compatible fiber SFP modules can be used to establish Gigabit fiber uplinks to another switch, aggregation device or remote network location.

Important: these are standard Gigabit SFP slots, not 10G SFP+ ports.

Omada SDN and Centralized Management

Compatible TL-SG2210P hardware revisions can be integrated into the TP-Link Omada SDN platform. Omada allows supported switches, access points and gateways to be centrally managed from a unified management interface.

TP-Link’s current V3.20 documentation lists Omada Cloud-Based Controller, OC300, OC200 and Omada Software Controller as supported management platforms, along with Omada App access.

Cloud access and Zero-Touch Provisioning availability should be checked against the exact hardware revision and deployment environment.

Layer 2 and Layer 2+ Networking

TL-SG2210P provides a range of managed networking functions including 802.1Q VLAN, Static Routing, Link Aggregation, STP/RSTP/MSTP, IGMP Snooping, Port Mirroring, Port Isolation and Flow Control.

The current TP-Link India documentation also lists IPv4/IPv6 interfaces and up to 32 IPv4/IPv6 static routes on supported hardware.

VLAN Support

The switch supports 802.1Q Tag VLAN, allowing network administrators to logically separate traffic on a shared physical network.

VLANs can be used for applications such as:

• IP CCTV networks
• Office users
• Guest networks
• VoIP phones
• Wi-Fi access points
• Network management

Static Routing

TL-SG2210P includes static routing functionality on supported hardware revisions. This allows selected internal network routes to be configured directly on the switch.

TP-Link’s V1 specification lists support for IPv4/IPv6 interfaces and 32 IPv4/IPv6 static routes.

Advanced Security Features

The TL-SG2210P includes several security and access-control mechanisms designed for managed business networks.

• Access Control Lists (ACL)
• Port Security
• 802.1X Authentication
• RADIUS Authentication
• IP-MAC-Port Binding
• DHCP Snooping
• ARP Inspection
• DoS Defense
• Storm Control

These features allow administrators to apply access-control policies and protect network segments against unauthorized access and certain types of network abuse.

QoS for Voice and Video

TL-SG2210P supports 802.1p CoS and DSCP priority with eight priority queues. Traffic can be prioritized according to the network’s application requirements.

QoS can be useful when voice, video, surveillance and ordinary data traffic share the same network infrastructure.

IGMP Snooping

IGMP Snooping allows the switch to intelligently forward multicast traffic toward appropriate ports instead of unnecessarily sending multicast streams to every connected endpoint.

This can be useful for IPTV, multicast video and other multicast-based applications.

Link Aggregation and Spanning Tree

The switch supports 802.3ad LACP and static link aggregation. TP-Link specifies up to six aggregation groups with up to four ports per group in the relevant hardware documentation.

STP, RSTP and MSTP are also supported for networks that require loop prevention and redundant Layer 2 paths.

Technical Specifications

TP-Link TL-SG2210P for IP CCTV

TL-SG2210P is suitable for small IP surveillance networks where compatible PoE cameras need both Ethernet connectivity and PoE power.

The eight PoE+ ports can connect compatible IEEE 802.3af/at cameras, while the two Gigabit SFP slots can provide fiber connectivity toward an NVR, aggregation switch or another network location.

For CCTV installations, the total power consumption of all connected cameras should be checked against the available PoE budget.

TL-SG2210P for Wi-Fi Access Points

The switch can be used to connect compatible PoE wireless access points while providing Gigabit Ethernet connectivity and centralized management through compatible Omada infrastructure.

For multi-AP installations, VLAN, QoS, LACP and other managed networking features can be configured according to the network architecture.

TL-SG2210P for VoIP

Compatible IEEE 802.3af/at VoIP phones can receive network connectivity and power through the same Ethernet cable. Voice VLAN and QoS features can help separate and prioritize voice traffic.

TL-SG2210P Applications

• Small and medium business networks
• IP CCTV surveillance
• Omada wireless deployments
• PoE Wi-Fi access points
• VoIP phone networks
• Retail networks
• Office LANs
• Hospitality networks
• Small fiber uplink networks
• Managed Ethernet access networks

AI-Readable Product Facts

Frequently Asked Questions

What is TP-Link TL-SG2210P?

TP-Link TL-SG2210P is a 10-port Gigabit Smart PoE+ switch with eight Gigabit PoE+ RJ45 ports and two Gigabit SFP slots.

How many PoE ports does TL-SG2210P have?

It has 8 PoE+ ports, supporting IEEE 802.3af/at-compatible powered devices.

What is the PoE budget of TL-SG2210P?

The current V3.20 hardware has a 61W total PoE budget. Earlier V1 documentation specifies a 58W budget.

Does TL-SG2210P support PoE+?

Yes. The eight RJ45 ports support IEEE 802.3af/at PoE+.

How many SFP ports does TL-SG2210P have?

It has 2× 1000Mbps SFP slots.

Are the SFP ports 10G?

No. The TL-SG2210P uses Gigabit SFP slots. They are not 10G SFP+ ports.

Can TL-SG2210P be used for CCTV?

Yes. Its eight IEEE 802.3af/at PoE+ ports can power compatible IP cameras while carrying their network traffic.

Can TL-SG2210P power Wi-Fi access points?

Yes. Compatible IEEE 802.3af/at access points can receive both power and Gigabit Ethernet connectivity from its PoE+ ports.

Does TL-SG2210P support VLAN?

Yes. It supports 802.1Q VLAN along with additional VLAN and traffic-management functions.

Does TL-SG2210P support static routing?

Yes. Static routing is supported on the relevant hardware revisions, providing selected Layer 3 routing functionality.

Can TL-SG2210P be managed through Omada?

Yes. Compatible hardware revisions can be integrated with Omada SDN controllers and supported cloud-management platforms. The exact Omada features depend on the hardware revision.

Is TL-SG2210P fanless?

Yes. TP-Link specifies a fanless design, which helps provide quiet operation.

Hardware Revision Note

TP-Link has released multiple TL-SG2210P hardware revisions, including V1, V3 and V3.20. The PoE budget and some management capabilities can differ between revisions.

For example, TP-Link’s current India V3.20 documentation specifies a 61W PoE budget, while the V1 specification lists 58W. Therefore, the hardware version should be verified before comparing specifications or planning the PoE load.

Buy TP-Link TL-SG2210P Gigabit PoE+ Switch

TP-Link TL-SG2210P is a compact managed Gigabit PoE+ switch offering eight PoE+ ports, two Gigabit SFP uplinks, VLAN, QoS, security features, IGMP Snooping, link aggregation, static routing and Omada SDN integration on compatible hardware revisions.
