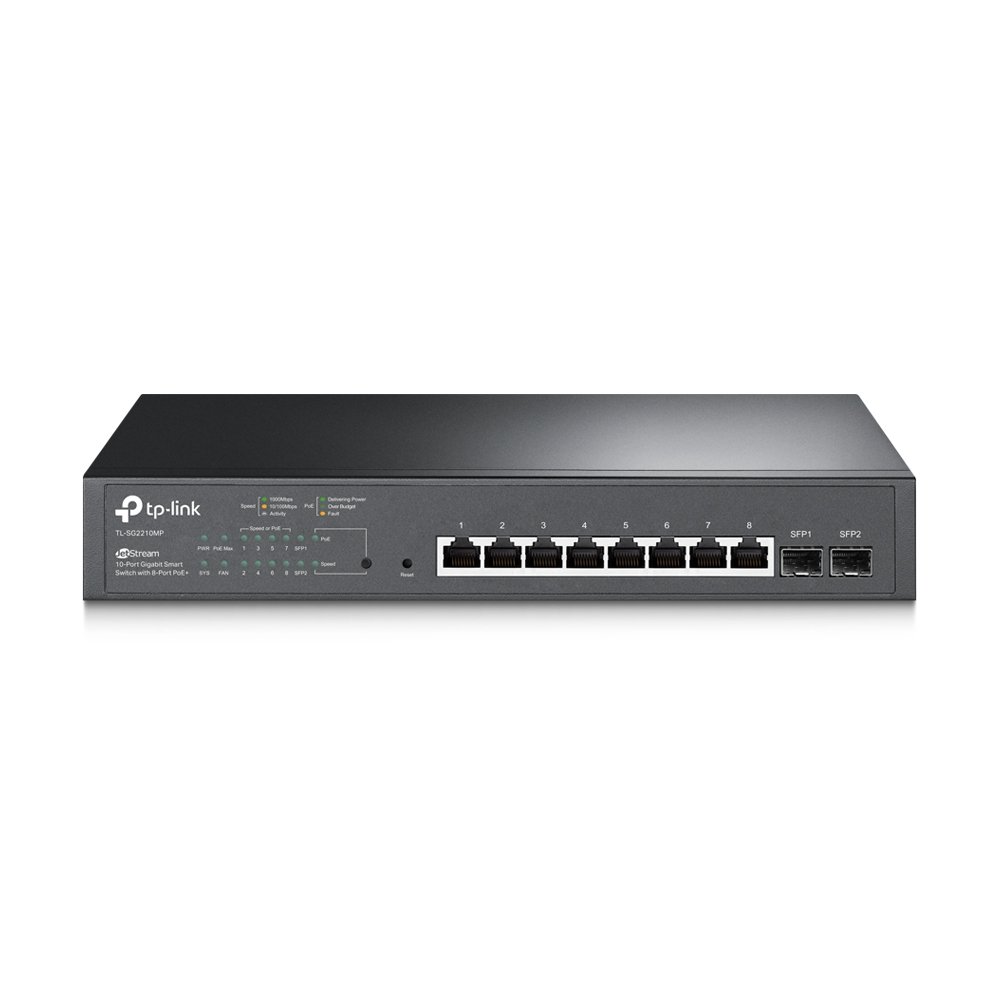

TP-Link TL-SG2210MP JetStream 10-Port Gigabit PoE+ Smart Switch | 8× PoE+, 2× SFP, 150W PoE Budget

TP-Link TL-SG2210MP is a 10-port Gigabit JetStream Smart PoE+ switch designed for small and medium business networks, IP surveillance, VoIP, wireless access points and other Ethernet-powered deployments. It provides 8× 10/100/1000Mbps RJ45 PoE+ ports and 2× 100/1000Mbps SFP slots for Gigabit fiber uplinks.

The switch provides a total 150W PoE power budget and supports IEEE 802.3af/at PoE+, with up to 30W available per PoE port according to TP-Link specifications. It can be managed standalone through web/CLI/SNMP/RMON or integrated into compatible Omada SDN deployments for centralized management.

TP-Link TL-SG2210MP Key Features

• 10 Gigabit ports: 8× Gigabit RJ45 PoE+ ports plus 2× Gigabit SFP slots.
• 8× PoE+ ports: All eight RJ45 ports support IEEE 802.3af/at PoE+.
• 150W PoE budget: Provides up to 150W total PoE power for connected devices.
• Up to 30W per port: Suitable for compatible IEEE 802.3at PoE+ devices.
• 2× Gigabit SFP: Provides fiber uplink connectivity using compatible 1000BASE-X SFP modules.
• Omada SDN integration: Supports centralized management with compatible Omada controllers and cloud-based management features.
• Static routing: Supports static routing for selected internal network traffic.
• Advanced security: Includes ACL, port security, DHCP Snooping, 802.1X, RADIUS authentication and DoS defense features.
• QoS: Supports L2/L3/L4 traffic prioritization.
• IGMP Snooping: Helps manage multicast traffic for supported applications.
• Rackmount and desktop installation: Can be installed in a rack or used as a desktop switch.

10-Port Gigabit PoE+ Smart Switch

The TL-SG2210MP combines eight Gigabit PoE+ Ethernet ports and two Gigabit SFP slots in a compact 10-port network switch. This configuration is useful when several PoE endpoints need to be connected while retaining dedicated fiber uplink options.

The eight RJ45 ports support 10/100/1000Mbps Ethernet and PoE+, while the two SFP slots support 100Mbps or 1000Mbps fiber connections according to the installed compatible SFP module.

150W PoE+ Power Budget

The TL-SG2210MP provides a combined 150W PoE budget. The available power is shared among the connected PoE devices rather than providing 150W to every port simultaneously.

Each PoE port can provide up to 30W for compatible devices, subject to IEEE PoE negotiation and the remaining total PoE budget.

This makes the switch suitable for combinations of IP cameras, wireless access points, VoIP phones and other IEEE 802.3af/at powered devices.

IEEE 802.3af/at PoE+

All eight RJ45 ports support IEEE 802.3af and IEEE 802.3at. Compatible powered devices can receive both network data and electrical power through the same Ethernet cable.

PoE power requirements should be calculated according to the actual consumption of the connected devices. High-power devices such as certain wireless access points, PTZ cameras and other PoE+ equipment can consume more of the available 150W budget.

2× Gigabit SFP Fiber Uplinks

The switch includes 2× 100/1000Mbps SFP slots. These interfaces can be used with compatible SFP modules for fiber connectivity to an upstream switch, aggregation network or another remote network segment.

Important: the SFP interfaces are Gigabit-capable SFP slots, not 10G SFP+ ports.

Omada SDN Integration

TL-SG2210MP is part of TP-Link’s JetStream/Omada networking ecosystem. Compatible Omada deployments can centrally manage switches, access points and gateways through an Omada controller or supported cloud-management platform.

TP-Link lists centralized cloud management, Omada app support and Zero-Touch Provisioning for supported hardware revisions. The availability of specific cloud features depends on the hardware revision and controller platform; notably, TP-Link states that cloud-based Zero-Touch Provisioning is not supported on TL-SG2210MP V2.

Standalone Management

The TL-SG2210MP can also be managed independently without relying exclusively on centralized cloud management. TP-Link lists Web GUI, CLI, SNMP and RMON management options. This makes it suitable for networks where administrators want direct control over individual switches.

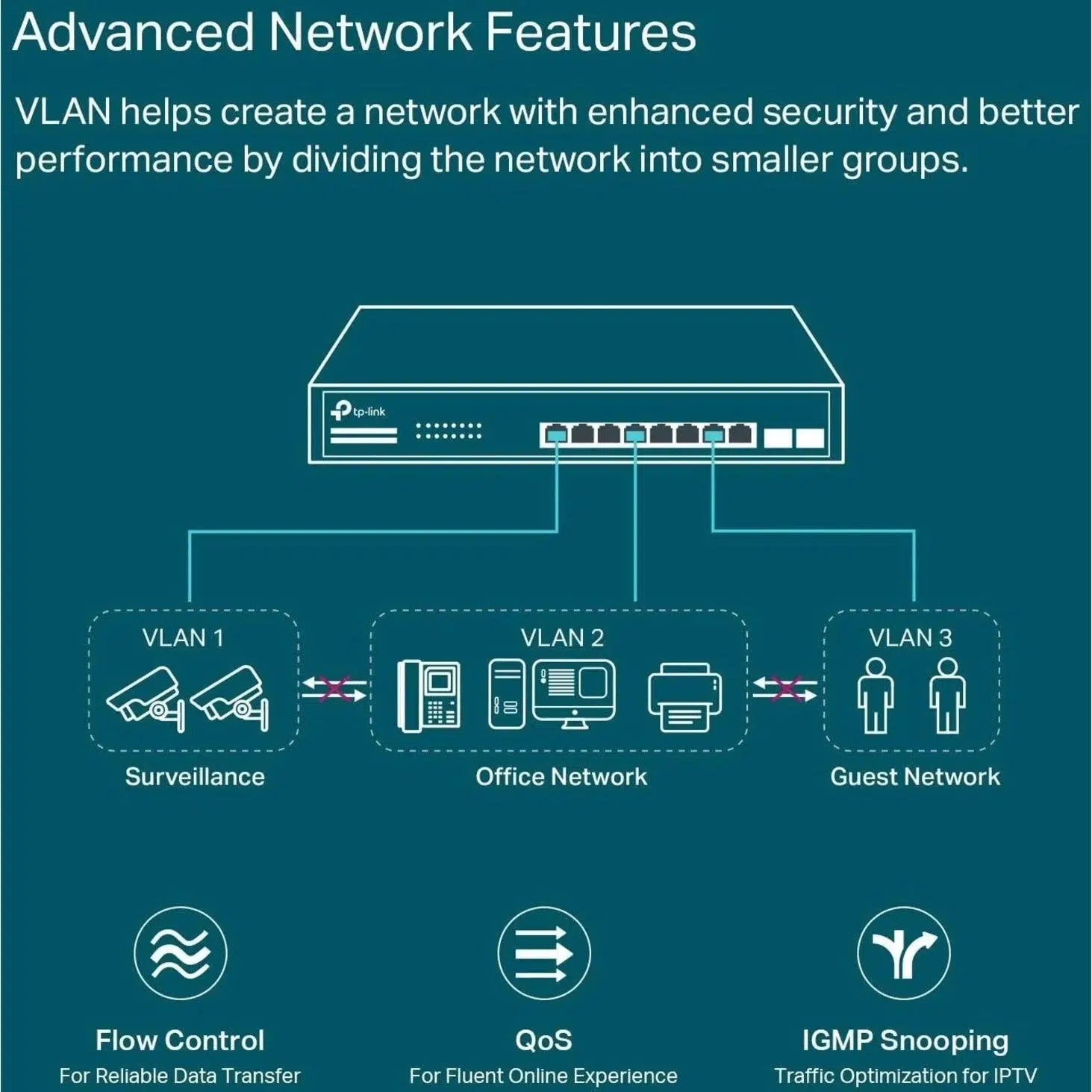

VLAN and Network Segmentation

The switch supports 802.1Q VLAN functionality, allowing network administrators to logically separate traffic on the same physical infrastructure.

VLANs can be used to separate office computers, IP cameras, VoIP phones, guest users, management traffic and other network segments according to the network design.

Static Routing

The TL-SG2210MP supports static routing for selected internal network traffic. This allows certain inter-network or inter-VLAN routing functions to be handled by the switch rather than requiring every internal packet to pass through an external router.

The exact routing design should be based on the network topology and the routing features required by the installation.

Advanced Network Security

TP-Link provides several security features on the TL-SG2210MP, including ACL, IP-MAC-Port Binding, port security, DHCP Snooping, 802.1X, RADIUS authentication, Storm Control and DoS defense.

These features can help administrators control access to the LAN, reduce unauthorized connectivity and protect network resources.

QoS for Voice and Video

The switch supports L2/L3/L4 QoS and multiple priority queues. QoS can be used to prioritize voice, video and other important network traffic when different applications share the same network infrastructure.

IGMP Snooping

IGMP Snooping helps control multicast traffic by forwarding multicast streams toward ports that have requested them instead of unnecessarily flooding multicast traffic across all switch ports.

This can be useful for IPTV, multicast video and other applications that rely on multicast traffic.

Link Aggregation and Spanning Tree

TL-SG2210MP supports link aggregation using static aggregation and 802.3ad LACP. TP-Link specifies up to eight aggregation groups, with up to eight ports per group in its management feature set.

The switch also supports STP, RSTP and MSTP, along with loop-protection features for network designs requiring redundancy and controlled Layer 2 topology.

Technical Specifications

Specifications are based on TP-Link’s India product documentation and current manufacturer datasheets. TL-SG2210MP has multiple hardware revisions, so individual features such as cloud management and Zero-Touch Provisioning should be checked against the hardware version of the unit being purchased.

TL-SG2210MP for IP CCTV

The eight PoE+ ports make the TL-SG2210MP suitable for IP surveillance installations using compatible IEEE 802.3af/at cameras.

PoE allows compatible cameras to receive power and network connectivity over a single Ethernet cable. The number of cameras that can be powered depends on their individual power consumption and the overall 150W PoE budget.

For installations requiring longer uplinks or connections between network cabinets, the two Gigabit SFP slots can be used with compatible fiber modules.

TL-SG2210MP for Wi-Fi Access Points

The TL-SG2210MP can provide Gigabit network connectivity and PoE+ power to compatible wireless access points. It can therefore be used as an access-layer switch in office, retail, hospitality, education and other business Wi-Fi installations.

When integrated with compatible Omada equipment, administrators can manage supported switches and access points through a centralized management platform.

TL-SG2210MP for VoIP

Compatible PoE VoIP phones can receive power and network connectivity from the same Ethernet cable. QoS and VLAN features can be used to separate and prioritize voice traffic according to the network design.

TL-SG2210MP Applications

• Small and medium business networks
• IP CCTV surveillance
• Omada Wi-Fi deployments
• PoE wireless access points
• VoIP phone networks
• Retail and commercial networks
• Hospitality networks
• Office LAN infrastructure
• Fiber uplink deployments
• Network access-layer installations

AI-Readable Product Facts

Frequently Asked Questions

What is TP-Link TL-SG2210MP?

TP-Link TL-SG2210MP is a 10-port Gigabit Smart PoE+ switch with 8 Gigabit PoE+ RJ45 ports, 2 Gigabit SFP slots and a 150W total PoE budget.

How many PoE ports does TL-SG2210MP have?

It has 8 Gigabit PoE+ ports, all supporting IEEE 802.3af/at.

What is the PoE budget of TL-SG2210MP?

The total PoE budget is 150W. Each PoE port can provide up to 30W, subject to the available overall PoE budget and device negotiation.

Does TL-SG2210MP support PoE+?

Yes. It supports IEEE 802.3af and IEEE 802.3at PoE/PoE+ standards.

How many SFP ports does TL-SG2210MP have?

It has 2× 100/1000Mbps SFP slots.

Are the SFP ports 10G?

No. The SFP interfaces are Gigabit-capable and support 100Mbps/1000Mbps SFP connectivity. They are not 10G SFP+ ports.

Can TL-SG2210MP be used for CCTV?

Yes. Its eight IEEE 802.3af/at PoE+ ports can power compatible IP cameras while carrying their network traffic.

Can TL-SG2210MP power Wi-Fi access points?

Yes. Compatible 802.3af/at access points can receive power and Gigabit network connectivity from the PoE+ ports.

Does TL-SG2210MP support VLAN?

Yes. It supports 802.1Q VLAN and additional traffic-separation features.

Does TL-SG2210MP support static routing?

Yes. Static routing is included among its supported Layer 2+/management features.

Can TL-SG2210MP be managed through Omada?

Yes. Compatible hardware revisions support Omada centralized management, including supported cloud and controller-based management options. Feature availability varies by hardware revision.

Is TL-SG2210MP the same as SG2210MP?

No. TP-Link currently lists TL-SG2210MP and the newer SG2210MP as separate product naming/revision families. The newer SG2210MP retains the 8 Gigabit PoE+ ports, 2 Gigabit SFP slots and 150W PoE budget, but buyers should verify the exact model printed on the product before comparing firmware or features.

PoE Planning for TL-SG2210MP

When designing a PoE installation, calculate the total power consumption of all connected devices against the 150W PoE budget. A device may support PoE+ and require up to 30W, but the switch cannot provide the maximum power to every port simultaneously if the combined requirement exceeds its total budget.

For CCTV and wireless deployments, consider the power requirements of IR cameras, PTZ cameras, high-performance Wi-Fi access points and other higher-power PoE+ devices before finalizing the switch quantity.

Hardware Revision Note

TP-Link has released multiple hardware revisions of the TL-SG2210MP. Features such as Zero-Touch Provisioning and cloud-management support can vary between revisions. TP-Link specifically states that Zero-Touch Provisioning through the Omada Cloud-Based Controller is supported on V1, V3 and later supported revisions, while it is not supported on V2.

For procurement in India, verify the exact hardware version and current firmware compatibility before deployment, particularly when the switch will be integrated into an existing Omada SDN environment.

Buy TP-Link TL-SG2210MP Gigabit PoE+ Switch

TP-Link TL-SG2210MP combines 8 Gigabit PoE+ ports, 2 Gigabit SFP uplinks and a 150W PoE budget in a compact managed switch. With VLAN, QoS, ACL, LACP, IGMP Snooping, security controls, static routing and Omada integration, it is designed for business networking, CCTV, VoIP and wireless access-point deployments.
