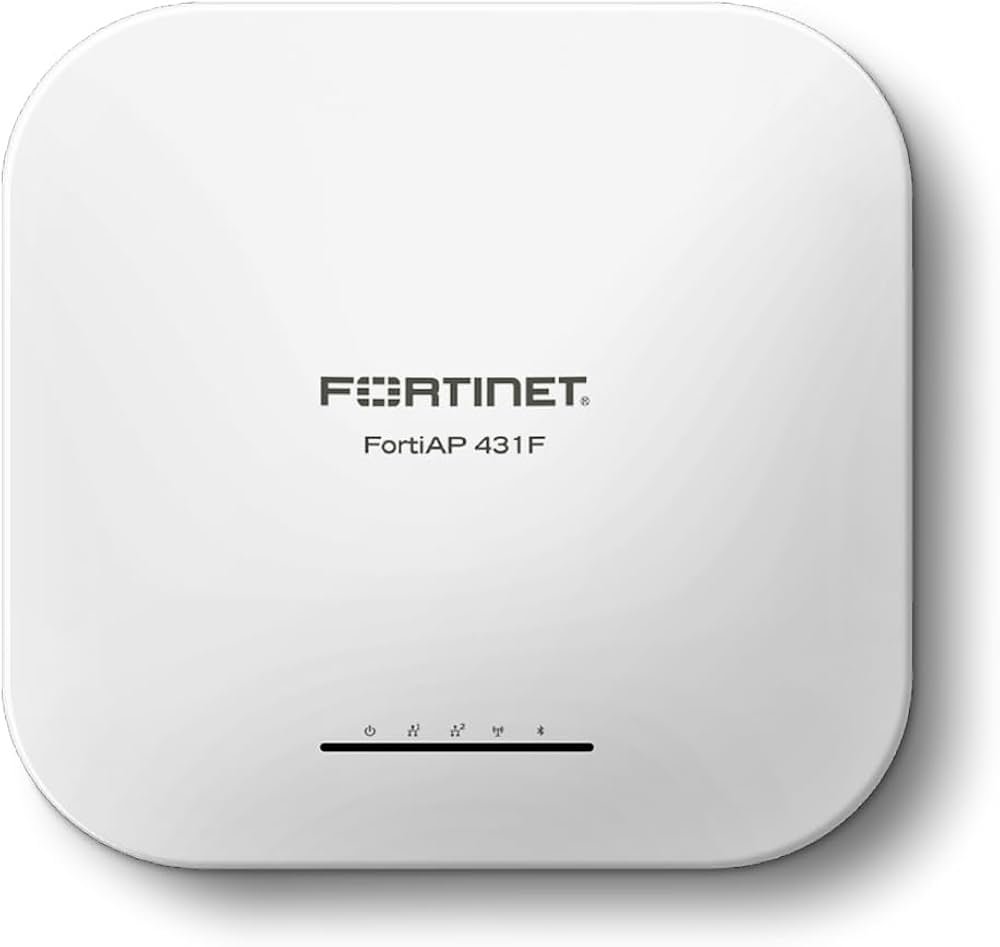

Fortinet FortiAP 431F Indoor Wireless Access Point Wi-Fi 6 Tri-Radio 4×4 MIMO BLE Scanning Fast 4.2 Gbps WLAN Connection

Secure Wi-Fi 6 with Fortinet FortiAP 431F

The Fortinet FortiAP 431F changes how IT teams manage high-traffic wireless zones. It utilizes the 802.11ax standard to provide faster speeds and significantly higher capacity. This hardware handles hundreds of client devices simultaneously without dropping connection quality.

Advanced Tri-Radio Architecture

The core of the Fortinet FortiAP 431F is its tri-radio design. It features dedicated 2.4 GHz and 5 GHz radios for client traffic. A third radio remains dedicated to security scanning, looking for rogue access points and interference. This setup ensures that your primary data channels never slow down during security checks. Engineers appreciate this separation because it maintains high throughput while providing constant protection. The scanning radio also helps with automated radio resource management.

High-Density Performance and MU-MIMO

Deploying wireless in crowded offices or schools requires high spatial stream counts. The Fortinet FortiAP 431F provides 4×4 MU-MIMO capabilities. This allows the access point to communicate with multiple devices at the same exact time. It reduces the wait time for mobile devices, which lowers overall latency. This model supports an aggregate throughput of up to 4.2 Gbps. You can expect reliable performance even when video conferencing and large file transfers happen on the same floor.

Integrated Security Fabric Benefits

Security is not an afterthought with this device. The Fortinet FortiAP 431F integrates directly into the Fortinet Security Fabric. You can manage the AP through a FortiGate Next-Generation Firewall. This gives you a single pane of glass for both wired and wireless security. Policies established on the firewall extend naturally to the wireless edge. This integration simplifies your stack by removing the need for separate wireless controllers.

IoT and Asset Tracking via BLE

Modern workplaces use more than just laptops and phones. The Fortinet FortiAP 431F includes a built-in Bluetooth Low Energy (BLE) radio. This radio supports asset tracking and location-based services. You can monitor the movement of equipment within a facility accurately. It also enables secure guest onboarding and proximity-based marketing. This makes the AP a valuable tool for retail and healthcare environments.

Simplified Network Management

Managing a large fleet of access points can be difficult without the right tools. The Fortinet FortiAP 431F can be managed via the cloud or an on-premise controller. Configuration is fast because the system uses profile-based deployment. Once a new AP is plugged in, it downloads its settings automatically. This reduces the risk of human error during setup. It also allows for quick scaling when your business grows.

Hardware Resilience and Physical Design

The physical build of the Fortinet FortiAP 431F is made for indoor environments. It has a sleek, professional look that fits into modern office aesthetics. The mounting brackets are flexible, allowing for ceiling or wall placement. It supports Power over Ethernet (PoE) for easier installation with fewer cables. The internal antennas are optimized to provide broad coverage without dead zones. This hardware is built to last in 24/7 operational environments.

Optimizing Your Enterprise Wireless

When sourcing this hardware, ensure you work with an authorized Fortinet dealer distributor supplier and reseller in India for professional installation advice. Local expertise helps in performing site surveys to find the best placement. Proper placement ensures the Fortinet FortiAP 431F delivers its full speed potential. High-density environments specifically benefit from a calculated deployment strategy. This prevents signal overlap and improves roaming for users moving between rooms.

Advanced OFDMA Technology

Wi-Fi 6 introduces Orthogonal Frequency Division Multiple Access (OFDMA). The Fortinet FortiAP 431F uses this to split channels into smaller sub-channels. Multiple users can share the same channel at the same time. This is much more efficient than older Wi-Fi standards. It is especially useful for IoT devices that send small packets of data frequently. Your network stays responsive even as the number of devices grows.

Technical Specifications Overview

• Standard: Wi-Fi 6 (802.11ax)
• Radios: 2.4 GHz, 5 GHz, and Scanning Radio
• MIMO: 4×4 Multi-User MIMO
• Throughput: Up to 4.2 Gbps Aggregate
• Bluetooth: Integrated BLE 5.0 Radio
• Ports: 1x 10/100/1000/2500 Base-T RJ45 port
• Power: PoE+ 802.3at supported

Final Thoughts on Deployment

The Fortinet FortiAP 431F is a top-tier choice for any business moving to Wi-Fi 6. It balances raw speed with deep security integration. It eliminates the trade-off between performance and protection. By using the dedicated scanning radio, you maintain a clean RF environment. This leads to fewer helpdesk tickets and happier users. Investing in this model future-proofs your infrastructure for years to come.
