Grandstream GWN7674 Wi-Fi 7 Tri-Band 21Gbps Access Point

Grandstream GWN7674 Wi-Fi 7 Tri-Band Access Point

The Grandstream GWN7674 is a high-performance enterprise-grade Wi-Fi 7 Tri-Band Access Point designed for businesses, offices, educational institutions, hospitality environments and other demanding wireless deployments. With support for the latest Wi-Fi 7 technologies, the GWN7674 delivers up to 21Gbps aggregate wireless throughput and supports up to 768 concurrent Wi-Fi client devices.

Built for medium to high user-density environments, the GWN7674 combines three wireless bands, high-capacity 4×4:4 MU-MIMO radios, 10 Gigabit and 2.5 Gigabit Ethernet connectivity, PoE++ power and advanced wireless management features. It is an ideal choice for organizations looking to deploy a high-speed, scalable and future-ready enterprise Wi-Fi network.

Key Features of Grandstream GWN7674

• Wi-Fi 7: Supports IEEE 802.11be for next-generation wireless connectivity.
• Up to 21Gbps Wireless Throughput: Delivers up to 688Mbps on 2.4GHz, 8.647Gbps on 5GHz and 11.529Gbps on 6GHz.
• Tri-Band Wireless: Dedicated 2.4GHz, 5GHz and 6GHz radios provide greater capacity and flexibility.
• 4×4:4 MU-MIMO: 5GHz and 6GHz radios use 4×4:4 MU-MIMO, while 2.4GHz uses 2×2:2 MU-MIMO.
• 10G + 2.5G Ethernet: Includes one 10GbE WAN/LAN port and one 2.5GbE WAN/LAN port.
• PoE++: Supports IEEE 802.3bt PoE for simplified installation and power delivery.
• 768 Concurrent Clients: Designed to support high client density per access point.
• Up to 175m Coverage: Provides an advertised coverage range of up to 175 meters depending on the deployment environment.
• Wi-Fi 7 MLO: Multi-Link Operation helps compatible devices utilize multiple wireless links.
• 4K-QAM: Higher modulation efficiency enables greater theoretical wireless data rates.
• Multi-RU: Improves spectrum utilization by allowing more flexible resource-unit allocation.
• Preamble Puncturing: Helps improve spectrum efficiency in environments affected by interference.
• BLE 5.3: Includes Bluetooth Low Energy 5.3 support.
• Advanced QoS: Designed to prioritize traffic for latency-sensitive applications.
• Centralized Management: Supports embedded controller management, GDMS Networking and GWN Manager.

High-Speed Wi-Fi 7 Connectivity

The Grandstream GWN7674 Wi-Fi 7 Access Point is designed to take advantage of the increased capacity and performance offered by IEEE 802.11be. It supports advanced Wi-Fi 7 capabilities including Multi-Link Operation, 4K-QAM, Multi-RU and Preamble Puncturing.

The 2.4GHz radio provides up to 688Mbps, while the 5GHz radio can deliver up to 8.647Gbps and the 6GHz radio up to 11.529Gbps under supported conditions. Together, these radios provide an aggregate theoretical wireless throughput of up to 21Gbps.

Actual wireless performance depends on client device capabilities, channel configuration, distance, interference, environmental conditions and other network factors.

Tri-Band 2.4GHz, 5GHz and 6GHz Wireless

The GWN7674 uses a three-band wireless architecture to provide additional spectrum and capacity for modern enterprise networks. The 2.4GHz band provides broader compatibility, while 5GHz and 6GHz provide additional high-speed capacity for compatible Wi-Fi clients.

The 5GHz and 6GHz radios feature 4×4:4 MU-MIMO, while the 2.4GHz radio features 2×2:2 MU-MIMO. This configuration makes the access point suitable for environments where multiple users and devices require simultaneous high-performance wireless connectivity.

10GbE and 2.5GbE Network Connectivity

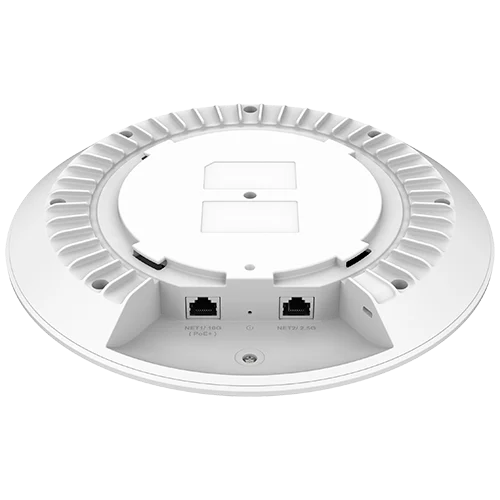

One of the major advantages of the GWN7674 is its high-speed wired connectivity. The access point features 1× 10 Gigabit Ethernet WAN/LAN port and 1× 2.5 Gigabit Ethernet WAN/LAN port.

The 10GbE interface provides the high-speed wired backhaul required to take advantage of the access point’s multi-gigabit wireless capacity. For best performance, the GWN7674 can be paired with a suitable multi-gigabit Ethernet switch and structured cabling infrastructure.

802.3bt PoE++ Support

The Grandstream GWN7674 supports IEEE 802.3bt PoE++, allowing network connectivity and power to be delivered through Ethernet cabling. This simplifies installation by reducing the need for a separate power adapter at the access point location.

The maximum power consumption is specified at 36W. A suitable PoE++ network switch or injector should be used according to the deployment requirements.

Designed for High-Density Wi-Fi Networks

With support for up to 768 concurrent Wi-Fi client devices, the GWN7674 is designed for medium to high-density wireless environments. It can be deployed in offices, corporate buildings, educational institutions, hotels, meeting spaces, commercial facilities and other locations requiring high-capacity wireless access.

Advanced QoS features help support latency-sensitive applications such as voice, video conferencing and other real-time network services.

Grandstream GWN7674 Wi-Fi Management

The GWN7674 provides multiple options for network administration. Its embedded controller can manage up to 50 local GWN series access points. For larger deployments, administrators can use GDMS Networking for cloud-based management or GWN Manager for on-premise management.

This flexible management architecture allows businesses to deploy individual access points or scale to larger multi-AP wireless networks while maintaining centralized configuration and monitoring capabilities.

Security Features

The Grandstream GWN7674 includes enterprise-oriented wireless and device security features. Supported wireless security options include WPA2 and WPA3 configurations, enterprise authentication options, client isolation, MAC filtering, rogue AP detection and containment, inbound and outbound traffic rules and other network protection mechanisms.

The access point also incorporates secure boot and digital-signature-based protection mechanisms designed to help protect critical device data and control functions.

Coverage and Antenna Design

Grandstream specifies an advertised coverage range of up to 175 meters. Actual coverage will vary depending on building construction, wall materials, antenna orientation, client devices, interference, mounting position and wireless configuration.

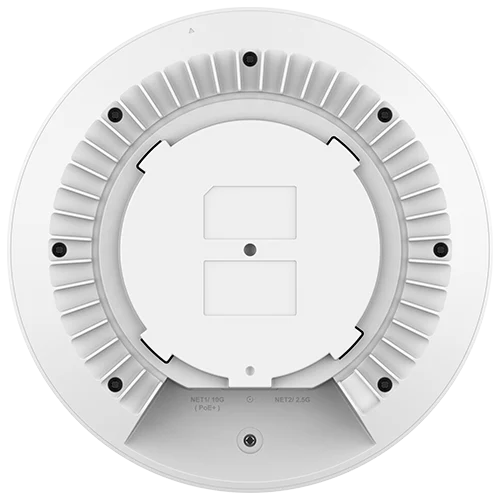

The GWN7674 uses multiple integrated antennas for its 2.4GHz, 5GHz, 6GHz, Bluetooth and scanning functions. The indoor access point can be installed on a wall or ceiling using the included mounting hardware.

Grandstream GWN7674 Specifications

Applications of Grandstream GWN7674

• Enterprise office Wi-Fi networks
• Corporate buildings
• High-density wireless deployments
• Hotels and hospitality environments
• Educational institutions
• Conference and meeting spaces
• Commercial buildings
• Voice-over-Wi-Fi deployments
• Wi-Fi 7 upgrade projects
• Multi-access-point enterprise networks

Why Choose Grandstream GWN7674?

The Grandstream GWN7674 Wi-Fi 7 Access Point is designed for organizations that need significantly more wireless capacity than conventional Wi-Fi 5 or Wi-Fi 6 access points can provide. Its combination of tri-band Wi-Fi 7, 4×4:4 MU-MIMO on 5GHz and 6GHz, 10GbE and 2.5GbE networking, PoE++, 768-client capacity and centralized management makes it a strong option for demanding enterprise wireless deployments.

For businesses planning a new high-performance wireless infrastructure, the GWN7674 provides a future-ready platform that can support current Wi-Fi clients while providing additional capacity for newer Wi-Fi 7 devices.

Buy Grandstream GWN7674 in India

Looking to buy Grandstream GWN7674 Wi-Fi 7 Access Point in India? IPVoice Technologies offers networking, Wi-Fi, surveillance and IP communication products for business and enterprise deployments.

For project requirements, bulk quantities, corporate networking deployments or product availability, contact IPVoice Technologies for current pricing and delivery information.

Note: Wireless speeds and coverage are theoretical/advertised maximum values and actual performance depends on the connected client, network configuration, environmental conditions, interference and other deployment factors.

Frequently Asked Questions (FAQ) – Grandstream GWN7674

1. What is the Grandstream GWN7674?
The Grandstream GWN7674 is a high-performance Wi-Fi 7 Tri-Band indoor access point designed for enterprise, business and high-density wireless networks. It supports 2.4GHz, 5GHz and 6GHz bands with up to 21Gbps aggregate wireless throughput.

2. Is the Grandstream GWN7674 a Wi-Fi 7 access point?
Yes. The GWN7674 is a Wi-Fi 7 (802.11be) Tri-Band Access Point supporting advanced features including Multi-Link Operation (MLO), 4K-QAM, Multi-RU and Preamble Puncturing.

3. What is the maximum speed of the Grandstream GWN7674?
The GWN7674 provides up to 21Gbps aggregate theoretical wireless throughput, including up to 688Mbps on 2.4GHz, 8.647Gbps on 5GHz and 11.529Gbps on 6GHz.

4. Does the GWN7674 support 6GHz Wi-Fi?
Yes. The Grandstream GWN7674 supports the 6GHz Wi-Fi band with a 4×4:4 MU-MIMO radio and up to 11.529Gbps theoretical throughput.

5. Does Grandstream GWN7674 have a 10GbE port?
Yes. The GWN7674 features one 10GbE Ethernet port and one 2.5GbE Ethernet port, providing high-speed wired backhaul for demanding Wi-Fi deployments.

6. Does the GWN7674 support PoE++?
Yes. The Grandstream GWN7674 supports IEEE 802.3bt PoE++, allowing power and network connectivity to be delivered through Ethernet cabling. Its maximum power consumption is 36W.

7. How many clients can the Grandstream GWN7674 support?
The GWN7674 supports up to 768 concurrent Wi-Fi clients. Actual recommended client density depends on applications, bandwidth requirements, RF conditions and network configuration.

8. What is the coverage range of the GWN7674?
The Grandstream GWN7674 has an advertised coverage range of up to 175 meters. Actual coverage depends on building construction, obstacles, interference, mounting position and client device capabilities.

9. Is the Grandstream GWN7674 suitable for high-density Wi-Fi?
Yes. With tri-band Wi-Fi 7, 4×4:4 MU-MIMO on 5GHz and 6GHz, high-speed multi-gigabit Ethernet and support for up to 768 concurrent clients, the GWN7674 is designed for medium- to high-density wireless deployments.

10. How can the Grandstream GWN7674 be managed?
The GWN7674 supports multiple management options, including its embedded controller, GDMS Networking cloud management and GWN Manager for centralized on-premises management.

11. What are the main Wi-Fi 7 features of the GWN7674?
Key Wi-Fi 7 technologies supported by the GWN7674 include Multi-Link Operation (MLO), 4K-QAM, Multi-RU and Preamble Puncturing, which are designed to improve wireless capacity, efficiency and performance.

12. Is Grandstream GWN7674 suitable for offices and businesses?
Yes. The GWN7674 is suitable for corporate offices, enterprises, hotels, educational institutions, commercial buildings, meeting spaces and other high-performance wireless environments.

13. Can GWN7674 be used with a 10GbE network switch?
Yes. Its 10GbE Ethernet interface makes the GWN7674 suitable for connection to a 10 Gigabit Ethernet network switch, helping provide sufficient wired backhaul for high-throughput Wi-Fi deployments.

14. Where can I buy Grandstream GWN7674 in India?
You can buy the Grandstream GWN7674 Wi-Fi 7 Access Point in India from IPVoice Technologies. For current pricing, stock availability, bulk quantities and enterprise networking requirements, contact IPVoice Technologies.

15. Is Grandstream GWN7674 suitable for upgrading an existing Wi-Fi network to Wi-Fi 7?
Yes. The GWN7674 is a strong option for organizations upgrading to Wi-Fi 7, particularly where high wireless capacity, 6GHz connectivity and multi-gigabit wired networking are required.
