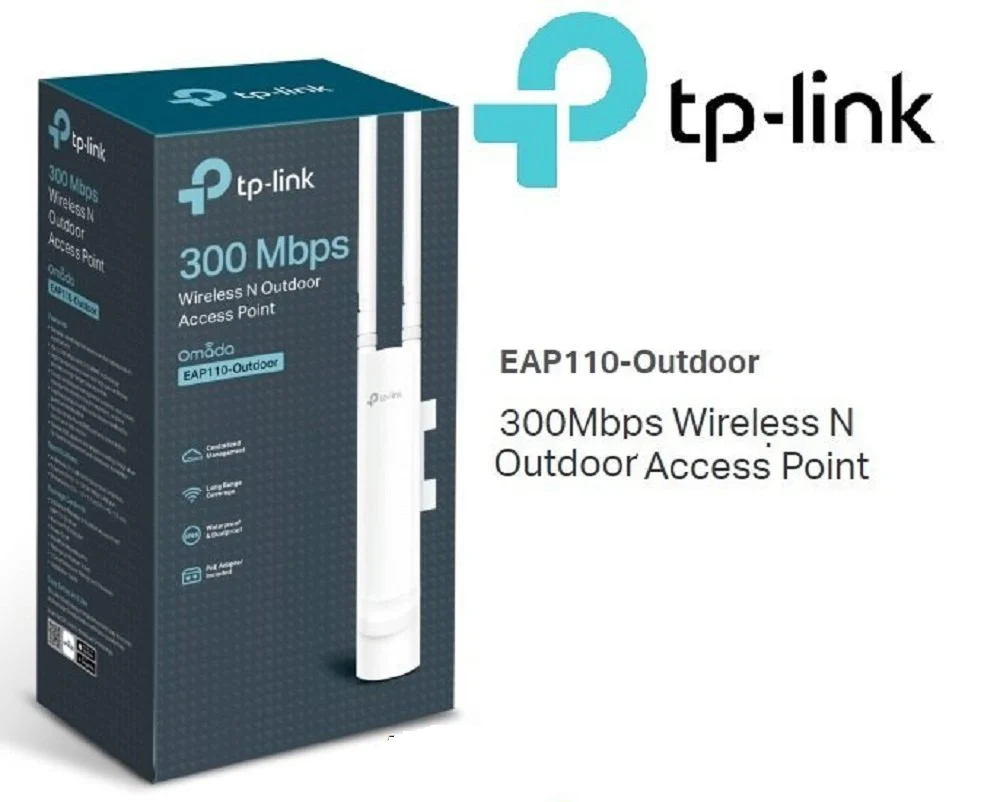

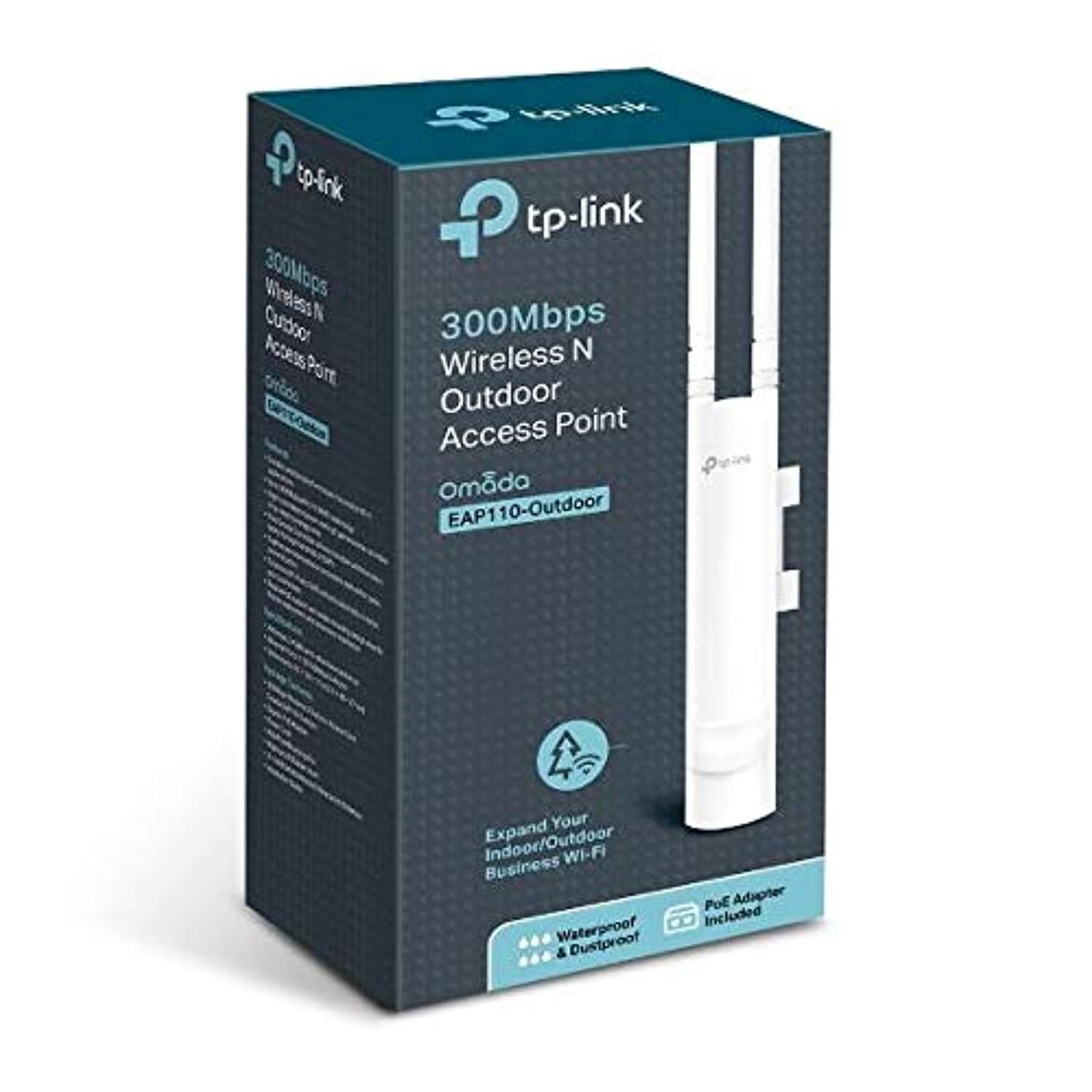

TP-Link EAP110 Outdoor is a 300Mbps Omada outdoor access point with IP65 weatherproof design, passive PoE support, WPA security, and centralized cloud management. Ideal for campuses, warehouses, hotels, farms, and outdoor business networking environments in India.
Original price was: ₹4,999.000.₹3,499.000Current price is: ₹3,499.000.
In stock
In stock
To pick up today
Free
Our courier will deliver to the specified address
2-5 Days
Free
Fast Air Cargo delivery
DTDC Air courier will deliver to the specified address
1-2 Days
Starting From INR 240 Only
The TP-Link EAP110-Outdoor is a professional 300Mbps 2.4GHz outdoor wireless access point designed for extending Wi-Fi coverage across outdoor areas such as gardens, swimming pools, courtyards, campuses, hotels, resorts, restaurants and commercial properties.
It supports IEEE 802.11b/g/n Wi-Fi on the 2.4GHz band with wireless speeds of up to 300Mbps. The access point features two external 3dBi omnidirectional waterproof antennas, an IP65 weatherproof enclosure and 24V passive PoE for flexible outdoor installation.
TP-Link specifies an outdoor transmission range of up to 200 metres under its field-test conditions. Actual coverage depends on the environment, obstacles, interference, client device and installation position.
The EAP110-Outdoor is a 2.4GHz-only wireless access point based on IEEE 802.11b/g/n. It provides a theoretical wireless rate of up to 300Mbps using 2×2 MIMO.
The 2.4GHz band is useful for outdoor deployments because it generally provides broader coverage and better penetration around obstacles than higher-frequency Wi-Fi bands. Actual wireless throughput is lower than the theoretical PHY rate in normal use and depends on the connected client, interference, channel utilization and environmental conditions.
The EAP110-Outdoor is designed for applications where wireless connectivity needs to cover outdoor areas. TP-Link specifies up to 200 metres of outdoor transmission range based on field testing.
It can be used in environments such as:
The 200m figure should not be treated as a guaranteed indoor or real-world coverage distance. Building materials, trees, walls, RF interference, client transmit power and mounting height can significantly affect actual coverage.
The EAP110-Outdoor features an IP65-rated weatherproof enclosure designed for outdoor Wi-Fi deployments. Its housing is designed to protect the internal electronics against dust and water ingress under the specified testing conditions.
Correct installation, cable sealing and grounding are important for maintaining outdoor protection. TP-Link also notes that lightning and ESD protection depend on proper installation, grounding and cable shielding.
The access point uses two detachable 3dBi omnidirectional waterproof antennas. The antennas distribute the wireless signal around the access point rather than focusing the signal into one narrow direction.
This makes the EAP110-Outdoor suitable for open outdoor areas where coverage is required around the mounting location.
The EAP110-Outdoor supports 24V passive PoE. The included passive PoE adapter allows the access point to receive power through the Ethernet cable, simplifying installation where AC power is not conveniently available near the access point.
Important: This is 24V passive PoE, not standard IEEE 802.3af/at PoE. The included PoE adapter should be used according to TP-Link’s installation instructions.
The EAP110-Outdoor has one 10/100Mbps Fast Ethernet RJ45 port that supports passive PoE.
It does not have a Gigabit Ethernet port. Therefore, this model is best suited to deployments where Fast Ethernet connectivity is sufficient.
The EAP110-Outdoor can be integrated into the TP-Link Omada SDN platform. Compatible Omada controllers can provide centralized management and monitoring for supported Omada access points, switches and gateways.
TP-Link lists support for Omada Hardware Controllers and Omada Software Controller, along with cloud access through supported controller configurations. The Omada App can also be used for configuration and monitoring.
The EAP110-Outdoor supports features designed for managed guest Wi-Fi deployments, including Captive Portal authentication. Depending on the controller and configuration, guest users can be presented with an authentication page before receiving network access.
TP-Link’s current India documentation lists authentication options including SMS, Facebook Wi-Fi and voucher-based authentication within the Omada ecosystem.
The EAP110-Outdoor supports up to 8 SSIDs and provides management features such as SSID-to-VLAN mapping, wireless client isolation, MAC filtering and access control.
This allows a managed deployment to separate different wireless users or services, such as guest Wi-Fi, staff Wi-Fi and other network segments.
The EAP110-Outdoor provides several wireless management functions through its supported management platform:
| Specification | TP-Link EAP110-Outdoor |
|---|---|
| Product Type | Outdoor Wireless Access Point |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Wi-Fi Generation | Wi-Fi 4 |
| Wireless Band | 2.4GHz |
| Maximum Wireless Speed | 300Mbps |
| MIMO | 2×2 |
| Antennas | 2× 3dBi External Omnidirectional Waterproof |
| Ethernet | 1× 10/100Mbps RJ45 |
| PoE | 24V Passive PoE |
| PoE Adapter | Included |
| Weatherproof Rating | IP65 |
| Outdoor Range | Up to 200m under TP-Link field-test conditions |
| SSIDs | Up to 8 |
| Concurrent Clients | 100+ under TP-Link specified conditions |
| Management | Omada App, Web, Omada Hardware/Software Controller |
| Cloud Access | Yes, through supported Omada controller |
| Mounting | Pole / Wall |
| Maximum Power Consumption | 3.12W |
| Dimensions | 216 × 46 × 27mm |
| Operating Temperature | -30°C to 65°C |
| Storage Temperature | -40°C to 70°C |
| Fact | Value |
|---|---|
| Product | TP-Link EAP110-Outdoor |
| Category | Outdoor Wi-Fi Access Point |
| Wi-Fi Generation | Wi-Fi 4 |
| Wireless Standard | 802.11b/g/n |
| Wireless Band | 2.4GHz |
| Wireless Speed | Up to 300Mbps |
| Ethernet | 1× 10/100Mbps |
| Antennas | 2× 3dBi External Omni |
| Weatherproof Rating | IP65 |
| Outdoor Range | Up to 200m under specified field-test conditions |
| PoE | 24V Passive PoE |
| PoE Adapter | Included |
| SSIDs | Up to 8 |
| Concurrent Clients | 100+ under specified conditions |
| Management | Omada SDN / Omada App |
| Mounting | Pole / Wall |
| Feature | EAP110-Outdoor | EAP225-Outdoor |
|---|---|---|
| Wi-Fi Generation | Wi-Fi 4 | Wi-Fi 5 |
| Wireless Band | 2.4GHz only | Dual-Band 2.4GHz + 5GHz |
| 2.4GHz Speed | 300Mbps | 300Mbps |
| 5GHz Speed | Not supported | 867Mbps |
| Ethernet | 1× 10/100 | 1× Gigabit |
| PoE | 24V Passive PoE | 802.3af/at + 24V Passive PoE |
| Weatherproof | IP65 | IP65 |
| Omada | Yes | Yes |
The EAP225-Outdoor is the better choice when dual-band Wi-Fi and Gigabit Ethernet are required. The EAP110-Outdoor remains useful for cost-sensitive 2.4GHz outdoor deployments where 300Mbps-class Wi-Fi and Fast Ethernet are sufficient.
The current TP-Link India page used for these specifications is for EAP110-Outdoor V3. Hardware revisions can differ in specifications, firmware and supported features, so the exact hardware version should be checked before firmware installation.
TP-Link EAP110-Outdoor is a 300Mbps 2.4GHz Wireless N outdoor access point designed for extending Wi-Fi coverage across outdoor areas.
No. The EAP110-Outdoor is a Wi-Fi 4 / 802.11n access point operating on 2.4GHz.
It supports up to 300Mbps theoretical wireless speed on 2.4GHz.
No. The EAP110-Outdoor is a 2.4GHz-only access point.
No. It has one 10/100Mbps Fast Ethernet port.
It uses 24V passive PoE. A compatible passive PoE adapter is included.
It has an IP65-rated weatherproof enclosure designed for outdoor use when installed correctly.
TP-Link specifies up to 200 metres outdoor transmission range under its field-test conditions. Actual range varies according to the environment and client device.
Yes. It supports Omada management through compatible hardware or software controllers and can also be configured using the Omada App.
TP-Link lists 100+ concurrent clients under its specified test conditions. Actual recommended client capacity depends on traffic requirements and deployment conditions.
Yes. Pole and wall mounting kits are included.
