TP-Link EAP655-Wall AX3000 Wall Plate Wi-Fi 6 Access Point | 2402Mbps 5GHz, 574Mbps 2.4GHz, 4× Gigabit Ports, PoE Pass-Through, Omada SDN

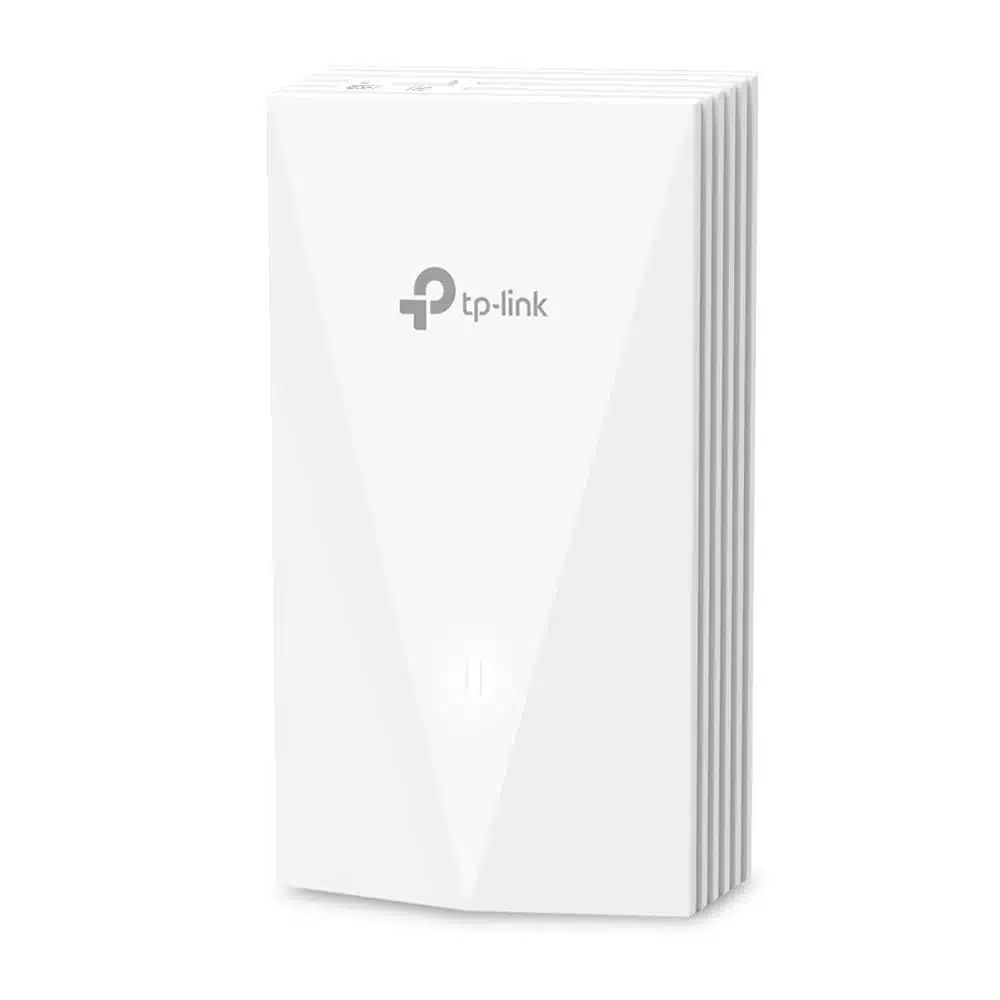

TP-Link EAP655-Wall AX3000 Wall Plate Wi-Fi 6 Access Point

The TP-Link EAP655-Wall is an AX3000 wall-plate Wi-Fi 6 access point designed to provide high-speed wireless connectivity directly from the wall of a hotel room, apartment, office, dormitory, villa, meeting room or other indoor space. It combines dual-band Wi-Fi 6 with four Gigabit Ethernet ports, 802.3af/at PoE input and a dedicated PoE pass-through port for compatible wired devices.

The EAP655-Wall delivers up to 2402Mbps on the 5GHz band and 574Mbps on the 2.4GHz band, giving it an AX3000 wireless class and a combined theoretical PHY rate of 2976Mbps. It supports Wi-Fi 6 technologies including OFDMA, 1024-QAM, beamforming and 160MHz channel width for compatible clients.

As part of the TP-Link Omada SDN ecosystem, the EAP655-Wall can be centrally managed through compatible Omada hardware, software or cloud-based controllers. It also supports standalone management through its web interface and Omada App.

Key Features of TP-Link EAP655-Wall

• AX3000 dual-band Wi-Fi 6 access point
• Up to 2402Mbps on 5GHz
• Up to 574Mbps on 2.4GHz
• 160MHz channel width on 5GHz
• Wi-Fi 6 OFDMA and 1024-QAM
• Four Gigabit Ethernet ports
• 1 × Gigabit uplink with 802.3af/at PoE input
• 3 × Gigabit downlink ports
• One downlink port supports PoE pass-through
• PoE pass-through requires 802.3at PoE+ input
• Up to 10.5W PoE pass-through output on the EU version according to TP-Link’s published specification
• Up to 120+ concurrent clients under TP-Link’s specified conditions
• Up to 50m² / 600ft² stated coverage under specified conditions
• Omada SDN centralized management
• Omada Cloud-Based Controller support
• Omada Hardware Controller and Software Controller support
• Omada App management
• Seamless Roaming
• Omada Mesh
• Band Steering and Airtime Fairness
• Load Balancing and Rate Limiting
• Captive Portal and Guest Network
• WPA3 security
• VLAN and 802.1X support
• Rogue AP Detection
• Wall-plate design compatible with standard 86mm, EU and US junction boxes

AX3000 Wi-Fi 6 Performance

The EAP655-Wall is an AX3000 Wi-Fi 6 access point with simultaneous dual-band operation. The 5GHz radio provides a theoretical maximum rate of 2402Mbps, while the 2.4GHz radio provides up to 574Mbps.

These are theoretical PHY rates and should not be interpreted as guaranteed internet speed or real-world file-transfer throughput. Actual performance depends on client capability, channel width, interference, distance, network traffic and environmental conditions.

160MHz Channel Width

The 5GHz radio supports 160MHz channel width for compatible Wi-Fi 6 clients. Wider channels can provide higher theoretical wireless throughput when sufficient clean spectrum is available.

Actual 160MHz operation depends on regulatory requirements, available channels, environmental interference and the capabilities of the connected client device.

Wi-Fi 6 Technologies for High-Efficiency Networking

The EAP655-Wall uses Wi-Fi 6 technologies designed to improve wireless efficiency in environments with multiple connected devices. OFDMA allows the access point to efficiently divide wireless resources between multiple clients, while 1024-QAM enables higher modulation rates under suitable signal conditions.

Beamforming can help focus wireless transmission toward compatible client devices, while Airtime Fairness helps manage wireless airtime between connected clients.

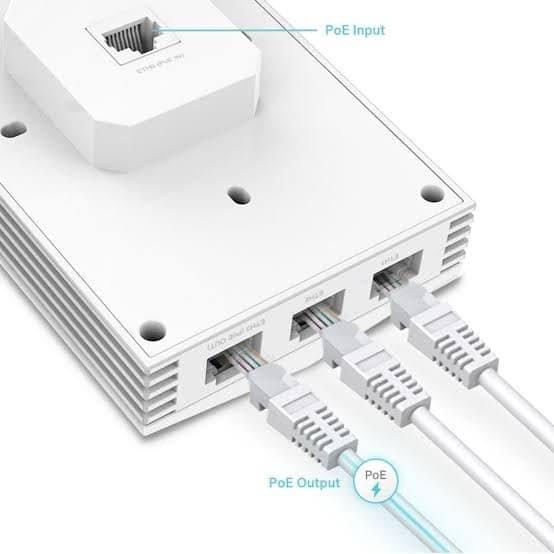

Four Gigabit Ethernet Ports

One of the major advantages of the EAP655-Wall over many conventional wall-mounted access points is its integrated four-port Gigabit Ethernet design.

• 1 × Gigabit uplink port for network connection and PoE input
• 3 × Gigabit downlink ports for connecting wired devices
• 1 downlink port with PoE pass-through

This allows a single EAP655-Wall to provide both Wi-Fi and wired connectivity within the room or deployment area. Compatible devices such as IP phones, printers, computers and IPTV equipment can be connected directly to the downlink ports.

PoE Input and PoE Pass-Through

The EAP655-Wall supports 802.3af/at PoE input, allowing it to receive both power and network connectivity through the Ethernet uplink. This simplifies installation because a separate local power adapter is not required when the network infrastructure provides compatible PoE.

One of the three downlink ports supports PoE pass-through. TP-Link specifies that PoE pass-through requires an 802.3at PoE+ input. For the EU version, TP-Link lists a maximum PoE pass-through output of 10.5W based on laboratory testing.

PoE pass-through can be useful for powering a compatible low-power wired device such as an IP phone without requiring another power connection at the wall location.

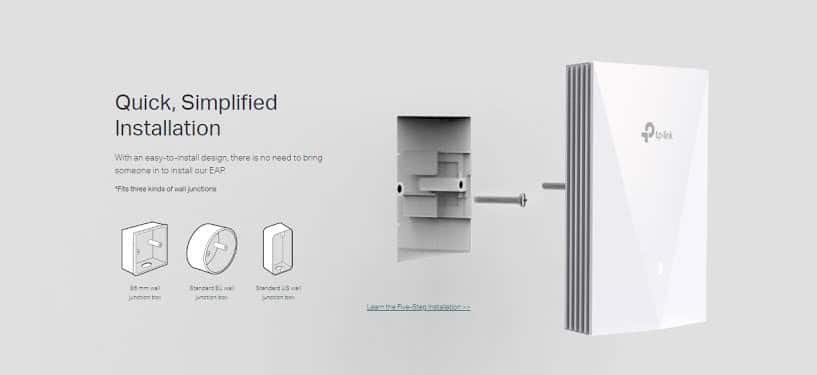

Wall-Plate Design for Room-Level Wi-Fi

The EAP655-Wall is designed to be installed as a wall-plate access point rather than a conventional ceiling-mounted AP. Its form factor is intended for room-by-room wireless deployments.

TP-Link specifies compatibility with 86mm, EU and US standard wall junction boxes. Mounting kits are included according to the published package contents.

This design makes the EAP655-Wall particularly suitable for hospitality rooms, apartments, dormitories, offices, villas and meeting rooms where a discreet wall-mounted network device is preferred.

Designed for Hospitality and In-Room Networking

The EAP655-Wall is particularly well suited to deployments where each room requires its own wireless access point and several wired network connections.

• Hotels: Dedicated Wi-Fi and wired connectivity in guest rooms.
• Hostels and Dormitories: Room-level wireless coverage with wired connections.
• Apartments: Individual wireless access points for separate rooms or units.
• Offices: Room-level Wi-Fi with Ethernet connectivity for desktop devices.
• Meeting Rooms: High-speed wireless connectivity for laptops and mobile devices.
• Villas: Multiple wall-mounted APs can be integrated into an Omada roaming network.
• Guest Houses: Centralized management of multiple room-level access points.

Omada SDN Centralized Management

The EAP655-Wall integrates with the TP-Link Omada SDN platform. Compatible Omada controllers can centrally manage multiple access points and other Omada networking equipment from a unified interface.

Controller options include an Omada Hardware Controller, Omada Software Controller and compatible cloud-based controller services. The Omada App can also be used for supported management workflows.

Centralized management is especially useful for hotels, offices, apartments and multi-room deployments where configuring every access point individually would be inefficient.

Standalone Management

The EAP655-Wall can also be configured in Standalone Mode. TP-Link’s installation documentation describes standalone management through the individual EAP’s management page, while controller mode allows multiple Omada devices to be managed centrally.

This provides flexibility for smaller installations that do not require a dedicated Omada controller.

Seamless Roaming and Mesh

In an appropriate Omada deployment, the EAP655-Wall supports features such as Seamless Roaming and Mesh. Seamless roaming is designed to help wireless clients move between compatible access points while maintaining connectivity.

Mesh functionality can provide wireless interconnection between compatible Omada access points where a wired backhaul is not available, subject to the network design and supported configuration.

Up to 16 SSIDs

The EAP655-Wall supports up to 16 SSIDs, with up to 8 SSIDs on each band. Multiple SSIDs can be useful for separating different types of users and devices.

For example, a business can configure separate wireless networks for employees, guests and selected IoT devices, with VLAN and access-control policies applied through the wider Omada network.

Guest Network and Captive Portal

The EAP655-Wall supports guest networking and captive portal authentication. These features can be useful for hotels, restaurants, offices, educational facilities and other environments where visitors require controlled internet access.

Captive portal configurations can be combined with supported authentication methods and Omada network policies to provide a more controlled guest-access experience.

VLAN and Enterprise Network Features

The EAP655-Wall supports VLAN-based network segmentation and 802.1X authentication. These features allow the access point to participate in structured business networks where different wireless SSIDs need to be mapped to separate network segments.

Other management and wireless functions include MAC authentication, wireless client isolation, rogue AP detection, rate limiting, load balancing, band steering and airtime fairness.

WPA3 and Wireless Security

The EAP655-Wall supports modern wireless security options including WPA3-Personal and WPA3-Enterprise, alongside WPA and WPA2 Personal/Enterprise modes.

Additional security-related features include access control, wireless MAC filtering, wireless isolation, VLAN support, 802.1X authentication and rogue AP detection.

120+ Concurrent Clients

TP-Link specifies 120+ concurrent clients under its stated testing conditions. This specification indicates the device is designed for environments with multiple connected users and devices, although actual client capacity and performance depend on traffic patterns, application types, RF conditions and deployment density.

Coverage

TP-Link lists a coverage figure of approximately 50m² / 600ft² under specified conditions. Actual coverage can vary substantially depending on wall construction, room layout, interference, client location, transmit-power settings and regulatory restrictions.

TP-Link EAP655-Wall Technical Specifications

AI-Readable Product Facts

Frequently Asked Questions

What is TP-Link EAP655-Wall?

The TP-Link EAP655-Wall is an AX3000 wall-plate Wi-Fi 6 access point designed for room-level wireless and wired connectivity in hotels, apartments, offices, dormitories, villas and similar indoor deployments.

What is the maximum Wi-Fi speed of EAP655-Wall?

The EAP655-Wall supports up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz, giving it an AX3000 class with a combined theoretical rate of 2976Mbps.

Does EAP655-Wall support Wi-Fi 6?

Yes. The EAP655-Wall supports IEEE 802.11ax Wi-Fi 6 on both the 2.4GHz and 5GHz bands.

Does EAP655-Wall support 160MHz?

Yes. The 5GHz radio supports up to 160MHz channel width for compatible clients and suitable regulatory and RF conditions.

How many Ethernet ports does EAP655-Wall have?

The EAP655-Wall has four Gigabit Ethernet ports: one uplink port and three downlink ports.

Does EAP655-Wall support PoE?

Yes. It supports 802.3af/at PoE input through the Gigabit uplink port.

Does EAP655-Wall support PoE pass-through?

Yes. One of the three Gigabit downlink ports supports PoE pass-through. TP-Link specifies that PoE pass-through requires 802.3at PoE+ input, with up to 10.5W output on the EU version under laboratory testing.

Can EAP655-Wall power an IP phone?

The PoE pass-through port can provide power to a compatible low-power wired device, subject to the device’s power requirements and the EAP655-Wall’s specified PoE pass-through output.

Does EAP655-Wall support Omada SDN?

Yes. The EAP655-Wall integrates with the Omada SDN ecosystem and can be centrally managed using compatible Omada hardware, software or cloud-based controllers.

Can EAP655-Wall be used without an Omada Controller?

Yes. TP-Link documents a Standalone Mode in which the individual EAP can be configured and managed through its own management interface.

Does EAP655-Wall support Mesh?

Yes. The EAP655-Wall supports Omada Mesh in compatible deployments.

Does EAP655-Wall support seamless roaming?

Yes. Seamless Roaming is supported when the access point is deployed with compatible Omada networking equipment and the required configuration.

How many clients can EAP655-Wall support?

TP-Link specifies 120+ concurrent clients under its stated conditions. Actual performance depends on client count, traffic type, RF environment and deployment design.

How many SSIDs can EAP655-Wall broadcast?

The EAP655-Wall supports up to 16 SSIDs, with up to eight SSIDs available on each wireless band.

Does EAP655-Wall support WPA3?

Yes. The EAP655-Wall supports WPA3-Personal and WPA3-Enterprise in addition to WPA and WPA2 security options.

Where is EAP655-Wall commonly used?

It is particularly suitable for hotels, dormitories, apartments, villas, offices, meeting rooms and other deployments requiring room-level Wi-Fi with multiple wired Ethernet ports.

EAP655-Wall vs EAP615-Wall

Hardware Version Information

The EAP655-Wall has multiple hardware revisions, including V1 and V1.20 documentation. Specifications and firmware support can vary by hardware revision and regional version. TP-Link’s current documentation continues to list the EAP655-Wall in its Omada wall-plate product family, so the exact hardware version should be checked before firmware installation.

Why Choose TP-Link EAP655-Wall?

The TP-Link EAP655-Wall AX3000 Wi-Fi 6 Access Point combines high-speed dual-band wireless networking with four Gigabit Ethernet ports and PoE pass-through in a compact wall-plate design. Its 2402Mbps 5GHz capability, 574Mbps 2.4GHz capability, 160MHz support, Omada SDN integration, VLAN support, captive portal, WPA3 security, seamless roaming and room-level installation design make it suitable for modern hospitality, residential and business networks.

The four Gigabit ports are particularly useful in room-level deployments because the access point can provide Wi-Fi while also acting as a convenient wired connectivity point for compatible devices such as IP phones, PCs, printers and IPTV equipment.
