TP-Link MC112CS is a 10/100Mbps WDM media converter for single-mode fiber up to 20km. Simple, reliable, and cost-efficient, perfect for enterprise and ISP networks in India.
Original price was: ₹4,999.000.₹2,699.000Current price is: ₹2,699.000.
In stock
In stock
To pick up today
Free
Our courier will deliver to the specified address
2-5 Days
Free
Fast Air Cargo delivery
DTDC Air courier will deliver to the specified address
1-2 Days
Starting From INR 240 Only
The TP-Link MC112CS is a 10/100Mbps WDM single-mode fiber media converter designed to convert 100BASE-FX fiber connectivity to 10/100BASE-TX copper Ethernet and vice versa. It provides a practical solution for extending Ethernet networks over long-distance single-mode fiber while using a single fiber strand for bidirectional communication.
The MC112CS features one 100M SC/UPC fiber port and one 10/100Mbps RJ45 Ethernet port. Its Wavelength Division Multiplexing (WDM) technology uses different optical wavelengths for transmitting and receiving data, allowing both directions of communication to travel through one single-mode fiber.
The MC112CS operates at 1310nm for transmission and 1550nm for reception. It is designed to work with a complementary WDM converter using the opposite wavelength arrangement, such as the TP-Link MC111CS.
The primary function of the MC112CS media converter is to bridge a fiber-optic Ethernet network and a copper Ethernet network. The SC/UPC fiber port connects to compatible single-mode fiber, while the RJ45 port connects to standard 10/100Mbps Ethernet equipment.
This makes the MC112CS useful when a network needs to be extended beyond the normal copper Ethernet distance. Instead of running long copper Ethernet cabling, the network connection can be transported over single-mode optical fiber and converted back to copper Ethernet at the remote location.
The MC112CS supports IEEE 802.3u 100BASE-FX and 10/100BASE-TX standards. Its fiber interface operates at 100Mbps, while the RJ45 interface supports 10Mbps and 100Mbps Ethernet connections.
The major feature of the TP-Link MC112CS is its WDM technology. Conventional fiber Ethernet links commonly use separate fiber strands for transmit and receive paths. WDM allows the MC112CS to send and receive data over a single fiber strand by using different optical wavelengths.
The MC112CS uses:
This single-fiber architecture can reduce fiber usage and is particularly useful in installations where only one strand of compatible single-mode fiber is available.
The MC112CS is designed to operate with a complementary WDM converter. Because the MC112CS transmits at 1310nm and receives at 1550nm, the remote converter needs to transmit at 1550nm and receive at 1310nm.
The TP-Link MC111CS provides this complementary wavelength arrangement:
| Feature | MC112CS | MC111CS |
|---|---|---|
| WDM TX | 1310nm | 1550nm |
| WDM RX | 1550nm | 1310nm |
| Fiber | Single-Mode | Single-Mode |
| Fiber Connector | SC/UPC | SC/UPC |
| Maximum Distance | Up to 20km | Up to 20km |
Therefore, a typical point-to-point WDM installation can use one MC112CS at one location and one MC111CS at the other location, connected through one compatible single-mode fiber strand.
The MC112CS supports a specified fiber distance of up to 20km when used with compatible single-mode fiber and within the manufacturer’s optical specifications.
This makes it suitable for long-distance Ethernet links between buildings, offices, network rooms, CCTV locations and remote network segments.
The 20km figure represents the manufacturer’s specified maximum transmission distance. Actual link performance depends on fiber quality, connector and splice losses, optical budget, installation quality and environmental conditions.
The MC112CS provides a 100M SC/UPC fiber interface designed for single-mode fiber. The optical connection should be matched with a compatible single-mode fiber and a WDM endpoint using the complementary wavelength configuration.
When installing a WDM link, it is important to match the fiber mode, connector type, wavelength and optical specifications at both ends.
The copper side of the MC112CS provides one 10/100Mbps RJ45 Ethernet port. It supports 10Mbps and 100Mbps Ethernet connections and includes Auto MDI/MDIX functionality.
Auto MDI/MDIX automatically detects the appropriate Ethernet cable configuration, making the converter easier to connect to compatible switches, routers, computers, NVRs and other Ethernet devices.
The MC112CS is a Fast Ethernet media converter, not a Gigabit media converter. It should not be selected for applications that require 1000Mbps Ethernet or Gigabit fiber conversion.
The MC112CS supports automatic negotiation of half-duplex and full-duplex transfer modes for the applicable Ethernet connection. This allows the converter to establish the appropriate operating mode with compatible connected equipment.
TP-Link specifies full wire-speed forwarding within the supported 100Mbps Ethernet specification.
The MC112CS can be deployed as a standalone media converter, so a separate chassis is not required for a basic point-to-point connection.
For installations with multiple media converters, TP-Link also supports compatible units in the MC1400 chassis. This can provide centralized installation and organization for higher-density fiber conversion requirements.

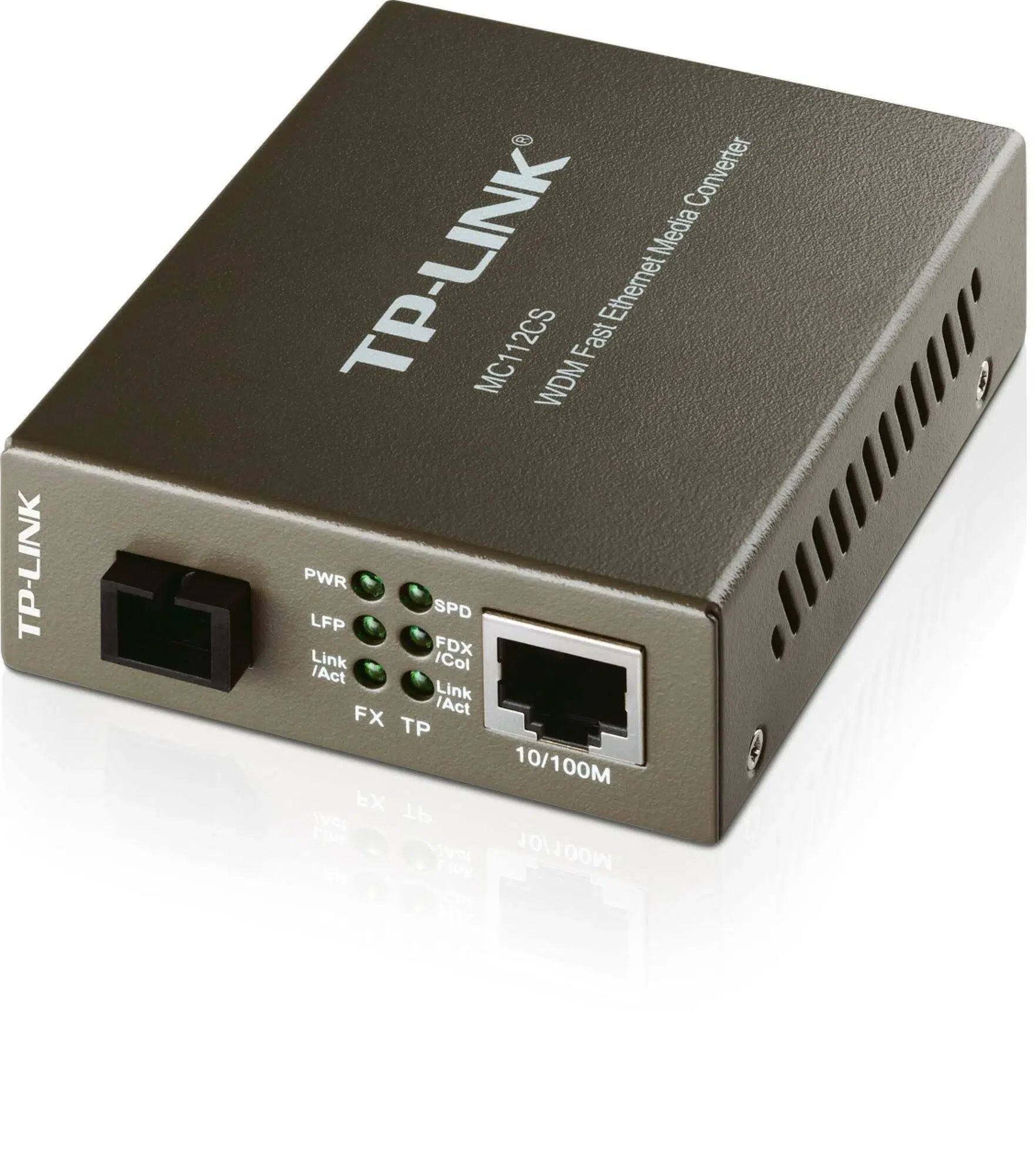

The MC112CS provides front-panel LED indicators for power and link/activity status. These indicators help technicians quickly check whether the unit is powered and whether the fiber or Ethernet connection is active.
The MC112CS is powered using an external power adapter. TP-Link’s current India specification lists a maximum power consumption of approximately 2.41W, while the current V7.30 datasheet lists a maximum of 1.30W for that hardware revision. Because power specifications can vary by hardware revision, the exact version should be checked for procurement or installation documentation.
| Specification | Details |
|---|---|
| Product Type | 10/100Mbps WDM Single-Mode Media Converter |
| Fiber Standard | 100BASE-FX |
| Copper Standard | 10/100BASE-TX |
| Fiber Port | 1 × 100M SC/UPC |
| Ethernet Port | 1 × 10/100M RJ45 |
| Fiber Type | Single-Mode Fiber |
| WDM | Yes |
| WDM TX | 1310nm |
| WDM RX | 1550nm |
| Maximum Fiber Distance | Up to 20km |
| Auto MDI/MDIX | Yes |
| Duplex Mode | Auto-Negotiation of Half/Full Duplex |
| Standards | IEEE 802.3i, IEEE 802.3u |
| Chassis Compatibility | TP-Link MC1400 |
| LED Indicators | PWR, Link/Act |
| Power Supply | External Power Adapter |
| Maximum Power Consumption | 2.41W on current India listing; hardware revision dependent |
| Dimensions | 94.5 × 73 × 27mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90%, non-condensing |
| Storage Humidity | 5% to 90%, non-condensing |
| Certifications | FCC, CE, RoHS |
| Fact | TP-Link MC112CS |
|---|---|
| Brand | TP-Link |
| Model | MC112CS |
| Product Category | Fiber Media Converter |
| Ethernet Speed | 10/100Mbps |
| Fiber Standard | 100BASE-FX |
| Fiber Type | Single-Mode |
| Fiber Connector | SC/UPC |
| Fiber Port | 1 × 100M SC/UPC |
| Copper Port | 1 × 10/100M RJ45 |
| WDM | Yes, single-fiber bidirectional transmission |
| Transmit Wavelength | 1310nm |
| Receive Wavelength | 1550nm |
| Maximum Fiber Distance | Up to 20km |
| Compatible WDM Partner | TP-Link MC111CS |
| Gigabit Support | No |
| Chassis Support | TP-Link MC1400 |
| Power | External Power Adapter |
The TP-Link MC112CS is a 10/100Mbps WDM single-mode fiber media converter that converts 100BASE-FX fiber to 10/100BASE-TX copper Ethernet and vice versa.
The MC112CS is designed for single-mode fiber using an SC/UPC connector.
TP-Link specifies a maximum fiber transmission distance of up to 20km under compatible single-mode fiber and specified optical conditions.
No. The MC112CS is a 10/100Mbps Fast Ethernet media converter. It does not support Gigabit Ethernet.
The MC112CS uses WDM technology, allowing transmission and reception over one single-mode fiber strand using separate optical wavelengths.
The MC112CS transmits at 1310nm and receives at 1550nm.
The TP-Link MC111CS is a compatible complementary WDM converter. MC111CS transmits at 1550nm and receives at 1310nm, matching the opposite wavelength arrangement required by MC112CS.
Yes. The MC112CS can operate as a standalone media converter without a chassis. It can also be used with the compatible TP-Link MC1400 chassis.
Yes. The fiber interface is a 100M SC/UPC port.
No. The copper interface is a 10/100Mbps RJ45 port.
Yes. It can be used for compatible Ethernet-based CCTV network links where 100Mbps bandwidth is sufficient, including long-distance fiber connections between surveillance locations and network equipment.
Yes. The MC112CS uses an external power adapter, and TP-Link lists the power adapter in the package contents.
The MC112CS and MC111CS are designed as complementary WDM media converters. Their primary difference is the direction of the optical wavelengths.
| Feature | MC112CS | MC111CS |
|---|---|---|
| Speed | 10/100Mbps | 10/100Mbps |
| Fiber Type | Single-Mode | Single-Mode |
| Fiber Connector | SC/UPC | SC/UPC |
| WDM TX | 1310nm | 1550nm |
| WDM RX | 1550nm | 1310nm |
| Maximum Distance | Up to 20km | Up to 20km |
| Typical Pair | MC111CS | MC112CS |
The MC112CS should not be confused with the TP-Link MC110CS. The MC112CS is a WDM single-fiber media converter using 1310nm TX and 1550nm RX, while the MC110CS uses a different optical configuration. The MC112CS is specifically designed to work with a complementary WDM endpoint such as the MC111CS.
TP-Link India lists multiple MC112CS hardware versions, including V1, V5 and V7. Specifications such as maximum power consumption and certain documentation details can vary between revisions. Always verify the hardware version printed on the actual device before using firmware or version-specific technical documentation.
The TP-Link MC112CS 10/100Mbps WDM Media Converter provides a straightforward solution for extending Fast Ethernet networks over long-distance single-mode fiber. Its SC/UPC interface, single-fiber WDM operation, 20km specified range, Auto MDI/MDIX, standalone installation and MC1400 chassis compatibility make it suitable for building-to-building networking, CCTV infrastructure, remote Ethernet connections and other fiber networking applications.
For a typical single-fiber WDM link, the MC112CS can be paired with the complementary TP-Link MC111CS, allowing bidirectional 100Mbps Ethernet communication over one compatible single-mode fiber strand.
