The TP-Link VIGI NVR1004H is a 4-channel network video recorder with 4K clarity, ONVIF compatibility, smart detection, and remote access for reliable surveillance.
Original price was: ₹5,999.000.₹2,799.000Current price is: ₹2,799.000.
In stock
In stock
To pick up today
Free
Our courier will deliver to the specified address
2-5 Days
Free
Fast Air Cargo delivery
DTDC Air courier will deliver to the specified address
1-2 Days
Starting From INR 240 Only

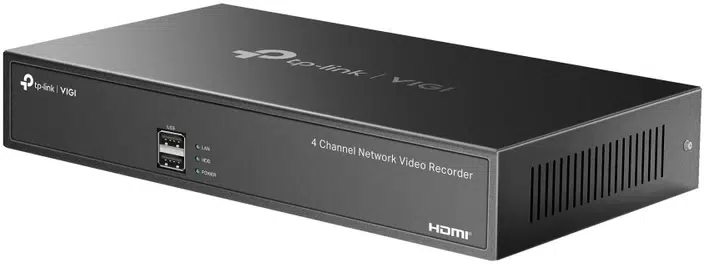

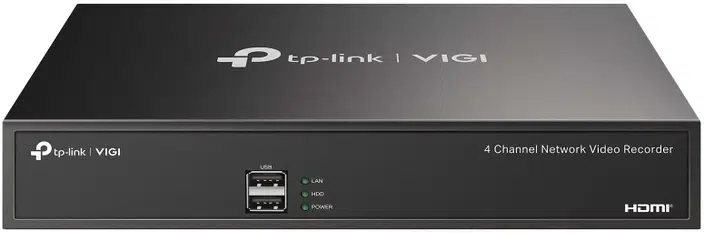

The TP-Link VIGI NVR1004H is a 4-channel network video recorder designed for professional IP surveillance systems using VIGI and compatible third-party network cameras. It provides centralized video recording, live monitoring, playback, backup and remote management for small offices, retail stores, homes, warehouses and other security installations.
The NVR supports up to 4 IP camera channels, recording resolutions up to 8MP, 4-channel synchronous playback and HDMI video output up to 3840 × 2160 at 30Hz. With H.265+ video compression, smart event support, ONVIF compatibility, local HDD storage and mobile access, the VIGI NVR1004H provides a practical foundation for a compact IP CCTV surveillance system.
The VIGI NVR1004H supports up to 4 network camera channels. Cameras can be connected through a network switch and managed centrally from the NVR. The recorder supports manual recording, scheduled recording and motion-detection recording modes.
It supports recording resolutions including 8MP, 5MP, 4MP, 3MP, 1080p, 720p and other standard resolutions, allowing the NVR to work with different VIGI camera models and surveillance requirements.
The NVR provides an HDMI output supporting resolutions up to 3840 × 2160 at 30Hz. A VGA output is also provided with support up to 1920 × 1080 at 60Hz.
HDMI and VGA can operate simultaneously, while the multi-view display supports 1-channel and 4-channel layouts. This allows users to monitor all connected cameras on a single screen.
The VIGI NVR1004H supports recording resolutions up to 8MP. Its decoding capability supports 2 channels at 8MP or 4 channels at 4MP, while up to 4 channels can be played back synchronously.
Playback tools include fast forward, fast backward, frame-by-frame playback, digital zoom, video clipping, exporting clips, recording lock and audio on/off.
The NVR supports H.265+, H.265, H.264+ and H.264 video compression. H.265+ helps reduce storage and bandwidth requirements compared with older compression technologies while maintaining suitable video quality.
This makes the recorder suitable for installations where storage capacity and network bandwidth need to be used efficiently.
The VIGI NVR1004H provides 80 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth. The available bandwidth should be considered when selecting camera resolution, frame rate and bit rate for a four-camera surveillance system.
The recorder includes one SATA interface and supports an HDD with capacity up to 10TB. The HDD is not included with the standard NVR and needs to be installed separately.
The integrated HDD storage allows surveillance recordings to be retained locally for later playback, event investigation and backup.
The TP-Link VIGI NVR1004H supports ONVIF and CGI interoperability, allowing compatibility with supported third-party IP cameras in addition to VIGI cameras.
For the best compatibility and feature integration, TP-Link recommends using the VIGI NVR with VIGI cameras.
The NVR supports a range of smart surveillance events when used with compatible cameras. Supported detection types include:
These functions can help organize surveillance events and make it easier to locate relevant recordings.
The VIGI NVR1004H supports remote access through the VIGI App on Android and iOS devices. Users can monitor connected cameras, review recordings and manage supported surveillance functions remotely.
The NVR can also be managed through its web interface and VIGI Security Manager, providing flexibility for both local and centralized surveillance management.
The recorder includes dedicated audio input and audio output interfaces. When used with compatible cameras and audio equipment, this enables two-way audio functionality for supported surveillance applications.
Supported audio compression formats include G.711A, G.711U and G.726.
The NVR features a 10/100 Mbps RJ45 Ethernet interface for connection to the surveillance network. VIGI cameras can be connected through a suitable network switch, including a PoE switch when PoE-powered cameras are being deployed.
Because the standard VIGI NVR1004H does not have built-in PoE ports, PoE cameras require a separate PoE switch or suitable PoE power source.
The NVR supports several recording and backup functions, including manual recording, scheduled recording and motion-detection recording. Recorded footage can be searched and reviewed using instant playback, regular playback, tag playback and event playback.
Users can also create video clips and export recordings for backup or evidence purposes.
With dimensions of approximately 246.2 × 148.2 × 45 mm and a net weight of approximately 0.59 kg, the VIGI NVR1004H has a compact footprint suitable for desktop surveillance installations.
The NVR operates from a 12V DC / 1.5A power adapter and has a maximum power consumption of approximately 4.25W without an installed HDD.
| Specification | Details |
|---|---|
| Model | TP-Link VIGI NVR1004H |
| Product Type | 4-Channel Network Video Recorder |
| IP Video Input | 4 Channels |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Maximum Record Resolution | 8MP |
| Decoding Capability | 2-ch @ 8MP, 4-ch @ 4MP |
| Synchronous Playback | 4 Channels |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| HDMI Output | Up to 3840 × 2160 @ 30Hz |
| VGA Output | Up to 1920 × 1080 @ 60Hz |
| Video Output | HDMI + VGA simultaneous output |
| Multi-View | 1 / 4 |
| Network Interface | 1 × 10/100 Mbps RJ45 |
| USB | 2 × USB 2.0 |
| Audio | 1 × Audio In, 1 × Audio Out |
| Alarm I/O | Not available |
| Storage Interface | 1 × SATA |
| Maximum HDD Capacity | Up to 10TB |
| Interoperability | ONVIF, CGI |
| Mobile Access | Android and iOS |
| Management | Web UI, NVR UI, VIGI App, VIGI Security Manager |
| Power Supply | DC 12V / 1.5A |
| Power Consumption | Maximum 4.25W without HDD |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Dimensions | 246.2 × 148.2 × 45 mm |
| Net Weight | Approx. 0.59 kg |
The VIGI NVR1004H is the standard non-PoE version. It does not include built-in PoE ports for directly powering IP cameras. For PoE camera installations, cameras can be connected through a separate PoE switch.
TP-Link also offers the VIGI NVR1004H-4P, which is a separate PoE NVR model. These two models should not be treated as identical products when preparing a surveillance bill of materials.
The VIGI NVR1004H supports up to 4 IP camera channels.
Yes. The NVR supports recording resolutions up to 8MP and HDMI output up to 3840 × 2160 at 30Hz. Its decoding capability is 2 channels at 8MP or 4 channels at 4MP.
The NVR has one SATA interface and supports an HDD with capacity up to 10TB. The HDD is not included.
No. The standard NVR1004H is a non-PoE NVR. A separate PoE switch is required when using PoE-powered IP cameras.
Yes. It supports ONVIF and CGI interoperability, allowing supported third-party IP cameras to be connected. TP-Link recommends VIGI cameras for the best compatibility and feature integration.
Yes. The NVR supports remote access through the VIGI App on Android and iOS devices, along with web and VIGI Security Manager access.
Yes. The VIGI NVR1004H supports H.265+, H.265, H.264+ and H.264 video compression.
No. The standard VIGI NVR1004H does not include an HDD. A compatible SATA HDD must be installed separately for recording storage.
