The TP-Link EAP110 Outdoor is a durable 300 Mbps access point with IP65 weatherproof housing, PoE support, Omada Controller, and enterprise security features.
Original price was: ₹6,999.000.₹3,499.000Current price is: ₹3,499.000.
In stock
In stock
To pick up today
Free
Our courier will deliver to the specified address
2-5 Days
Free
Fast Air Cargo delivery
DTDC Air courier will deliver to the specified address
1-2 Days
Starting From INR 240 Only
TP-Link EAP110-Outdoor is a 300Mbps Wireless N outdoor access point designed for providing reliable 2.4GHz Wi-Fi connectivity in outdoor and semi-outdoor environments. It features 2×2 MIMO wireless technology, two detachable 3dBi omnidirectional waterproof antennas, a weather-resistant IP65 enclosure and 24V passive PoE for flexible installation. TP-Link specifies an outdoor transmission range of up to 200 meters under its field-test conditions.
The EAP110-Outdoor is part of the TP-Link Omada business networking ecosystem and can be centrally managed through an Omada Hardware Controller or Omada Software Controller. Cloud access and captive portal functionality require a compatible Omada SDN controller. The access point can also be configured and monitored using the Omada App.
Designed for outdoor Wi-Fi deployments, the EAP110-Outdoor is suitable for locations such as gardens, swimming pool areas, outdoor cafés, courtyards, outdoor squares and similar environments where a dedicated weather-resistant access point is required.
The access point operates on the 2.4GHz band and supports IEEE 802.11n/g/b wireless standards. Its 802.11n wireless signal rate is up to 300Mbps, while the Ethernet interface is Fast Ethernet 10/100Mbps. The 300Mbps figure represents the theoretical physical wireless link rate; actual throughput depends on interference, distance, obstacles, network conditions and client-device capabilities.
TP-Link EAP110-Outdoor uses 2×2 MIMO technology on the 2.4GHz band to provide wireless connectivity with a maximum 802.11n link rate of up to 300Mbps.
EAP110-Outdoor is designed for long-range outdoor wireless connectivity. TP-Link specifies a transmission range of up to 200 meters based on field tests. Actual range can vary considerably depending on the installation environment, antenna orientation, interference, receiving device and physical obstacles.
The combination of dedicated high transmission power and two high-gain omnidirectional antennas makes the EAP110-Outdoor suitable for providing Wi-Fi across open outdoor areas where a conventional indoor access point would not be appropriate.
The EAP110-Outdoor uses an IP65-rated weatherproof enclosure designed to protect the access point against dust and water ingress during outdoor deployment. TP-Link also specifies protection against lightning and electrostatic discharge when the product is properly installed, grounded and connected using appropriate cable shielding.
The access point supports an operating temperature range of -30°C to 65°C, making it suitable for a wide range of outdoor environments.
EAP110-Outdoor comes with two detachable 3dBi omnidirectional waterproof antennas. Because the antennas are detachable, the design also provides flexibility for specific installation requirements where compatible alternative antennas may be appropriate.
| Wireless Feature | Specification |
|---|---|
| Wireless Band | 2.4GHz |
| Wireless Standards | IEEE 802.11n/g/b |
| Maximum 802.11n Rate | Up to 300Mbps |
| MIMO | 2×2 |
| Antennas | 2×3dBi External Omnidirectional Waterproof |
| Maximum SSIDs | Up to 8 |

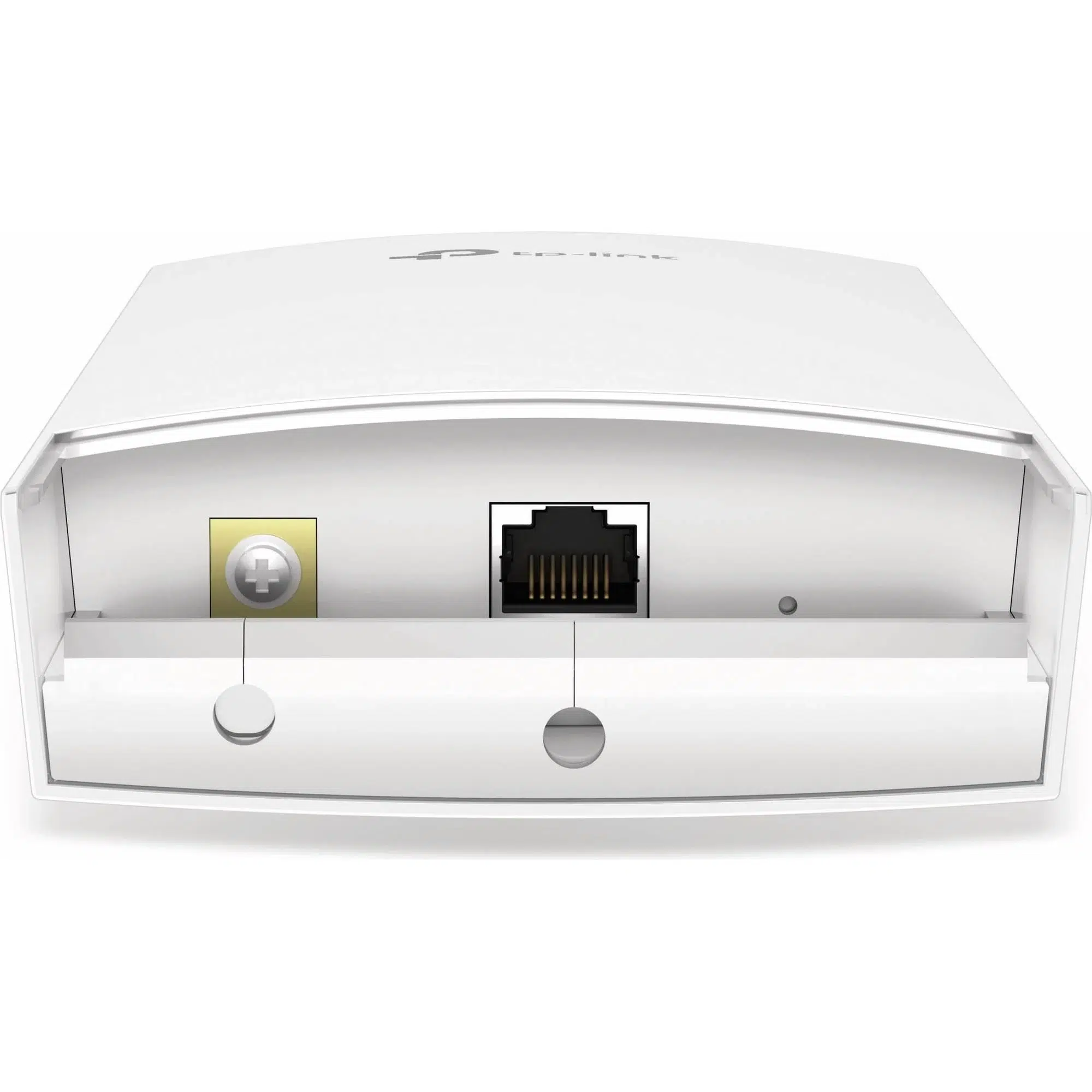

TP-Link EAP110-Outdoor supports 24V passive PoE. The passive PoE adapter is included, allowing the access point to receive power and network connectivity through Ethernet without requiring a separate DC power adapter at the installation point.
Important: EAP110-Outdoor uses 24V passive PoE. It should not be treated as an 802.3af/at PoE device. Use the compatible passive PoE power source specified by TP-Link.
| PoE Specification | TP-Link EAP110-Outdoor |
|---|---|
| PoE Type | 24V Passive PoE |
| PoE Adapter | Included |
| Ethernet Interface | 1× 10/100Mbps Fast Ethernet |
| Maximum Power Consumption | 3.12W |
EAP110-Outdoor integrates with the TP-Link Omada SDN platform, allowing compatible access points, switches and gateways to be managed from a centralized interface. This is useful when deploying multiple wireless access points across an office, hotel, campus, retail property or outdoor area.
EAP110-Outdoor supports captive portal authentication for managed guest Wi-Fi deployments. Captive portal functionality can be used to provide controlled guest access, while multiple SSIDs allow administrators to create separate wireless networks for different user groups.
The access point also supports SSID-to-VLAN mapping, making it possible to separate wireless traffic when deployed with a compatible VLAN-capable network infrastructure.
TP-Link EAP110-Outdoor includes several wireless security and access-control features for business deployments.
EAP110-Outdoor can be installed on a pole or wall using the supplied mounting kits. Its compact outdoor enclosure measures approximately 216 × 46 × 27mm. The package also includes waterproof antennas and a waterproof rubber insert for outdoor installation.
The EAP110-Outdoor provides several controls for managing wireless performance and connected users.
| Specification | Details |
|---|---|
| Model | TP-Link EAP110-Outdoor |
| Product Type | Outdoor Wireless Access Point |
| Wi-Fi Generation | Wi-Fi 4 / 802.11n |
| Wireless Class | N300 |
| Wireless Band | 2.4GHz |
| Maximum Wireless Rate | Up to 300Mbps |
| MIMO | 2×2 |
| Ethernet | 1× 10/100Mbps Fast Ethernet |
| PoE | 24V Passive PoE |
| PoE Adapter | Included |
| Antennas | 2×3dBi External Omnidirectional Waterproof |
| Weatherproof Rating | IP65 |
| Outdoor Range | Up to 200m under stated field-test conditions |
| Concurrent Clients | 100+ under stated conditions |
| Maximum SSIDs | Up to 8 |
| Management | Omada Hardware Controller, Omada Software Controller, Omada App |
| Cloud Access | Yes, through supported Omada SDN controller |
| Mounting | Pole / Wall |
| Dimensions | 216 × 46 × 27mm |
| Maximum Power Consumption | 3.12W |
| Operating Temperature | -30°C to 65°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% non-condensing |
| Certifications | CE, FCC, RoHS |
| Fact | TP-Link EAP110-Outdoor |
|---|---|
| Product Category | Outdoor Business Wi-Fi Access Point |
| Wi-Fi Generation | Wi-Fi 4 / 802.11n |
| Wireless Class | N300 |
| Wireless Band | 2.4GHz |
| Maximum Wi-Fi Rate | 300Mbps |
| Ethernet Speed | 10/100Mbps Fast Ethernet |
| PoE Type | 24V Passive PoE |
| PoE Adapter | Included |
| Antennas | 2×3dBi External Omnidirectional |
| Weatherproof Rating | IP65 |
| Outdoor Range | Up to 200m under stated field-test conditions |
| Omada Support | Yes |
| Mounting | Pole / Wall |
TP-Link EAP110-Outdoor is suitable for outdoor Wi-Fi requirements in locations where 2.4GHz Wireless N performance is sufficient. Typical applications include:
| Feature | EAP110 | EAP110-Outdoor |
|---|---|---|
| Wireless | 2.4GHz N300 | 2.4GHz N300 |
| Ethernet | 10/100Mbps | 10/100Mbps |
| Antennas | 2×4dBi Internal | 2×3dBi External |
| Weatherproof | No | IP65 |
| PoE | 24V Passive | 24V Passive |
| Mounting | Ceiling / Wall | Pole / Wall |
| Outdoor Range | Not intended for outdoor use | Up to 200m under stated conditions |
No. EAP110-Outdoor is a 2.4GHz-only Wireless N access point with a maximum 802.11n signal rate of up to 300Mbps.
TP-Link specifies a transmission range of up to 200 meters based on field tests. Actual range depends on environmental conditions, interference, obstacles and the receiving device.
EAP110-Outdoor has an IP65 weatherproof enclosure designed for outdoor Wi-Fi applications. Proper installation, grounding and cable protection are important for outdoor deployment.
Yes. It supports 24V passive PoE, and the passive PoE adapter is included.
No. EAP110-Outdoor has one 10/100Mbps Fast Ethernet port.
Yes. It supports Omada Hardware Controller and Software Controller management as well as the Omada App. Cloud access requires a compatible Omada SDN controller.
TP-Link lists 100+ concurrent clients under its stated test conditions. Actual recommended capacity depends on traffic requirements and the deployment environment.
Yes. The product supports pole and wall mounting, and the required mounting kits are included.
EAP110-Outdoor is a legacy 2.4GHz Wireless N access point with a 300Mbps theoretical wireless link rate and 10/100Mbps Ethernet. For new high-capacity deployments, newer dual-band Wi-Fi 5 or Wi-Fi 6 Omada outdoor access points may be more suitable.
TP-Link EAP110-Outdoor combines 300Mbps 2.4GHz Wireless N connectivity, 2×2 MIMO, external omnidirectional antennas, IP65 weather protection and 24V passive PoE in a compact outdoor access point. Its Omada SDN compatibility makes it suitable for centralized management of business Wi-Fi networks, while pole/wall mounting provides flexibility for outdoor installations.
For customers specifically looking for an affordable outdoor 2.4GHz access point with Omada management and passive PoE, the EAP110-Outdoor remains a practical option. For newer deployments requiring dual-band Wi-Fi, Gigabit Ethernet and higher capacity, consider newer TP-Link Omada outdoor models.
