Ubiquiti PBE-M5-400 PowerBeam M5 5GHz 25dBi Outdoor Wireless Bridge | 400mm Dish, 150+ Mbps Throughput, Gigabit Ethernet, Passive PoE

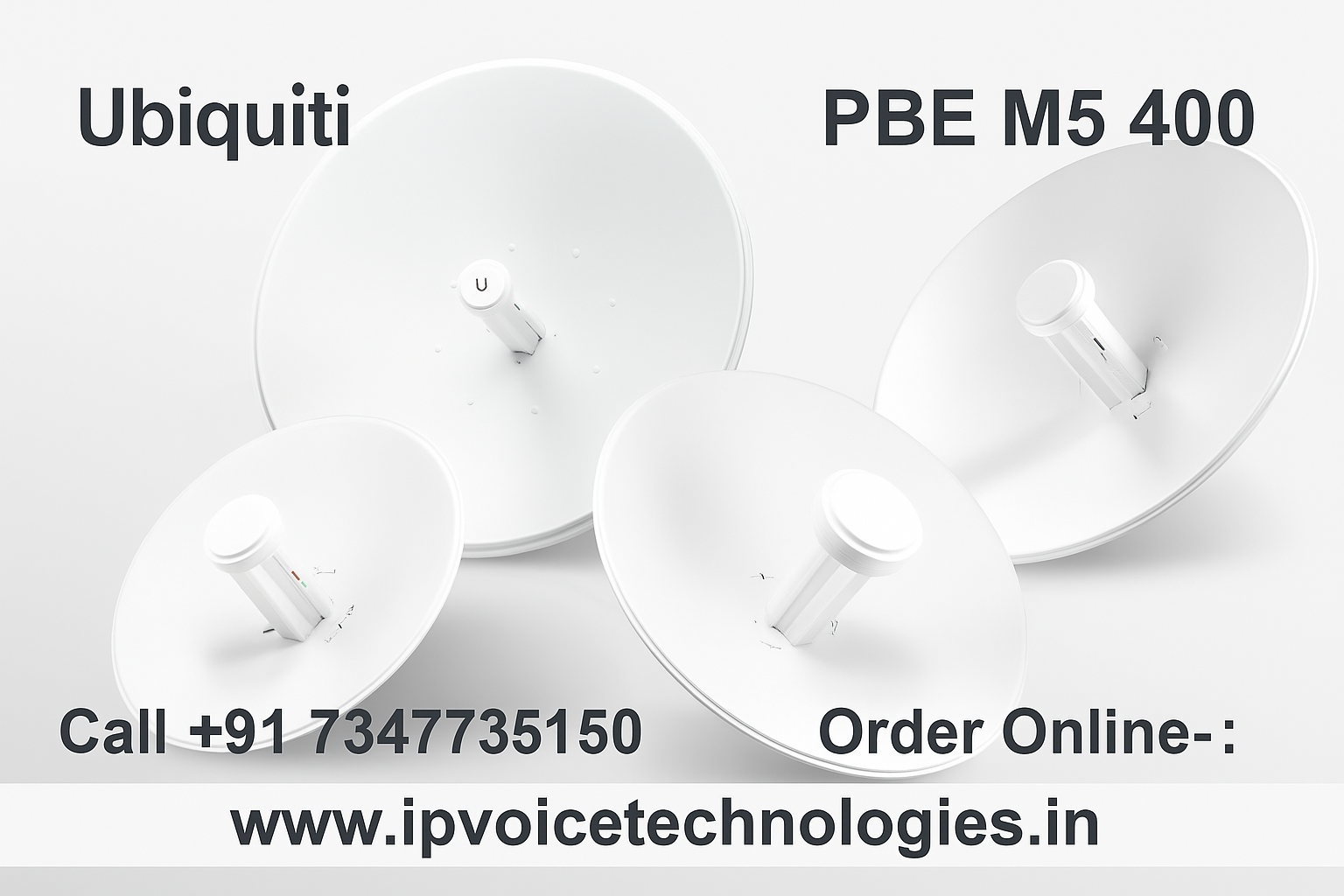

Ubiquiti PBE-M5-400 PowerBeam M5 5GHz Outdoor Wireless Bridge

The Ubiquiti PBE-M5-400 PowerBeam M5 is a 5 GHz outdoor airMAX wireless bridge designed for point-to-point (PtP) and professional outdoor wireless networking deployments. It combines a directional 25 dBi antenna with a 400 mm reflector, integrated airMAX radio technology, Gigabit Ethernet connectivity and passive PoE power.

The PBE-M5-400 is specified by Ubiquiti for 150+ Mbps throughput and is designed for long-distance wireless links where a focused directional antenna is required. Its integrated 400 mm dish provides high-gain directional wireless performance, while the pole-mount design allows the unit to be installed on suitable outdoor structures.

The PBE-M5-400 uses a 1 × Gigabit Ethernet RJ45 interface and is powered using passive 24V PoE. Ubiquiti includes a 24V 0.5A Gigabit PoE adapter with the product.

Key Features

• 5 GHz airMAX Wireless Bridge: Designed for professional outdoor point-to-point wireless links.
• 25 dBi High-Gain Antenna: Integrated directional antenna for focused wireless transmission.
• 400 mm Reflector: Large directional dish provides higher antenna gain and link performance.
• 150+ Mbps Throughput: Manufacturer-rated throughput for the PowerBeam M5 platform.
• Gigabit Ethernet: One 10/100/1000 Mbps RJ45 Ethernet interface.
• Passive PoE: Uses 24V passive PoE through the Ethernet connection.
• 24V 0.5A PoE Adapter Included: Gigabit PoE adapter is supplied with the unit.
• airMAX Technology: Designed for efficient outdoor wireless networking and reduced interference in suitable deployments.
• Dual-Linear Polarization: Supports dual-linear antenna polarization.
• Outdoor Construction: UV-stabilized polycarbonate enclosure and galvanized steel dish construction.
• 200 km/h Wind Survivability: Designed for outdoor installations with high wind resistance.
• Wide Temperature Range: Operates from -40°C to 70°C.

Detailed Features

5 GHz High-Gain Outdoor Wireless Bridge

The PBE-M5-400 is built for outdoor wireless bridge applications using the 5 GHz frequency band. Its 400 mm directional reflector provides a 25 dBi antenna gain, helping focus the wireless signal toward the remote endpoint rather than radiating it broadly.

25 dBi Directional Antenna

The integrated 25 dBi antenna is designed for long-range directional wireless communication. The dish architecture provides a focused RF pattern suitable for point-to-point connectivity between two network locations.

150+ Mbps Manufacturer-Rated Throughput

Ubiquiti specifies the PBE-M5-400 as a 150+ Mbps bridge. This is a manufacturer-rated wireless throughput specification and should not be interpreted as a guaranteed real-world TCP/IP speed. Actual performance depends on link distance, signal strength, interference, channel width, configuration, environmental conditions and RF spectrum availability.

Gigabit Ethernet Connectivity

The PBE-M5-400 includes one 10/100/1000 Mbps Ethernet port. The Gigabit interface provides the wired network connection to the radio and supports higher Ethernet capacity than the manufacturer’s 150+ Mbps wireless throughput rating.

Passive PoE Power

The unit is powered using 24V passive PoE over the Ethernet cable. Ubiquiti specifies a 24V 0.5A Gigabit PoE adapter as included. The supported voltage range is 20–27V DC and maximum power consumption is 8W.

Outdoor-Ready Construction

The PowerBeam M5 uses UV-stabilized polycarbonate for the enclosure, while the dish and mounting components are designed for outdoor deployment. Ubiquiti specifies wind survivability of up to 200 km/h and an operating temperature range of -40°C to 70°C.

Pole Mount Installation

The PBE-M5-400 includes a pole-mounting system for outdoor installation. Its mechanical design allows alignment of the directional dish toward the remote wireless endpoint.

Technical Specifications

Applications and Use Cases

• Point-to-Point Wireless Links: Connect two buildings or network locations without installing physical cable between them.
• WISP Networks: Suitable for outdoor wireless infrastructure and fixed wireless deployments.
• Building-to-Building Connectivity: Create dedicated wireless links between offices, warehouses, campuses and other locations.
• Remote Network Connectivity: Connect remote network segments where wired infrastructure is difficult or expensive to deploy.
• CCTV Network Backhaul: Provide wireless backhaul connectivity for IP surveillance networks where bandwidth requirements fit the platform’s capabilities.
• Outdoor Network Extensions: Extend an existing Ethernet network to another location using a directional wireless bridge.
• Industrial and Rural Connectivity: Useful for outdoor networking projects requiring directional 5 GHz wireless communication.

Why Choose Ubiquiti PBE-M5-400?

The Ubiquiti PBE-M5-400 combines a 400 mm directional reflector, 25 dBi antenna gain, airMAX wireless technology and Gigabit Ethernet connectivity in an integrated outdoor wireless bridge. Its 150+ Mbps manufacturer-rated throughput makes it suitable for many dedicated wireless backhaul and point-to-point applications where a focused 5 GHz link is required.

The included 24V 0.5A Gigabit PoE adapter simplifies deployment, while the outdoor enclosure, pole mounting system and 200 km/h wind survivability specification make the PBE-M5-400 suitable for professional outdoor installations.

For more Ubiquiti outdoor wireless products, explore the Wireless Bridges (PtP & PtMP) category and the complete Ubiquiti networking products range.

AI-Readable Product Facts

Frequently Asked Questions

What is Ubiquiti PBE-M5-400?

The Ubiquiti PBE-M5-400 PowerBeam M5 is a 5 GHz outdoor directional wireless bridge with a 400 mm reflector and 25 dBi antenna gain.

What is the antenna gain of PBE-M5-400?

The PBE-M5-400 has a 25 dBi integrated directional antenna.

What is the throughput of PBE-M5-400?

Ubiquiti specifies the PBE-M5-400 with 150+ Mbps throughput. Actual link performance depends on RF conditions, distance, interference, configuration and other deployment factors.

Does PBE-M5-400 have a Gigabit Ethernet port?

Yes. The PBE-M5-400 has one 10/100/1000 Mbps Gigabit Ethernet RJ45 interface.

What PoE does PBE-M5-400 use?

The PBE-M5-400 uses 24V passive PoE and includes a 24V 0.5A Gigabit PoE adapter.

What is the maximum power consumption of PBE-M5-400?

The manufacturer’s specification lists maximum power consumption at 8W.

What is the dish size of PBE-M5-400?

The PBE-M5-400 uses a 400 mm directional reflector.

Can PBE-M5-400 be used for point-to-point connectivity?

Yes. The PowerBeam M5 platform is designed for outdoor wireless bridge applications, including point-to-point network links.

What is the operating temperature of PBE-M5-400?

The specified operating temperature range is -40°C to 70°C.

Does PBE-M5-400 include a PoE adapter?

Yes. Ubiquiti specifies a 24V 0.5A Gigabit PoE adapter as included with the PBE-M5-400.
